Operation
Using Multiple Supplies
38
Operating Manual for XT Series Power Supply

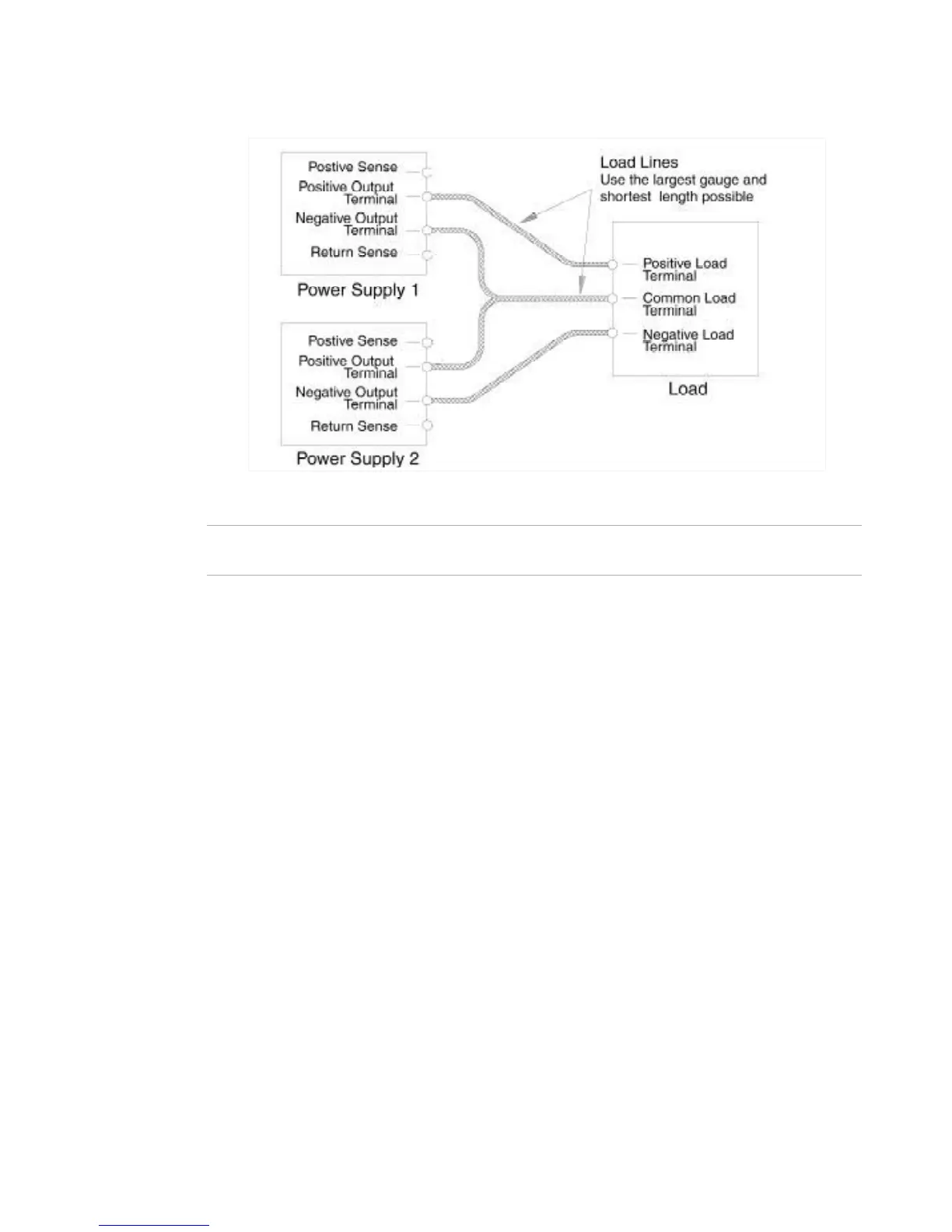

Figure 4.5
S
plit Supply Operation of Multiple
Supplies (Positive-negative supply)
Note
The optional Analog Programming (APG) Interface has a Master/Slave T
racking
feature which will allow one-knob c
ontrol of both supplies in a split supply c
onfiguration.
