Xeno XDR5 real time DVRs manual V1.0
9.8 Triggering or Clearing Relay Output Manually
Purpose:
Sensor alarm can be triggered or cleared manually. If “Manually Clear” is selected in the dropdown list of dwell time of
an alarm output, the alarm can be cleared only by pressing Clear button in the following interface.
Steps:
Select the relay output you want to trigger or clear and make related operations.
Menu> Event> Sensor Settings> Manual Relay Output
Press Trigger/Clear button if you want to trigger or clear an relay output.
Press Trigger All button if you want to trigger all relay outputs.
Press Clear All button if you want to clear all relay output.

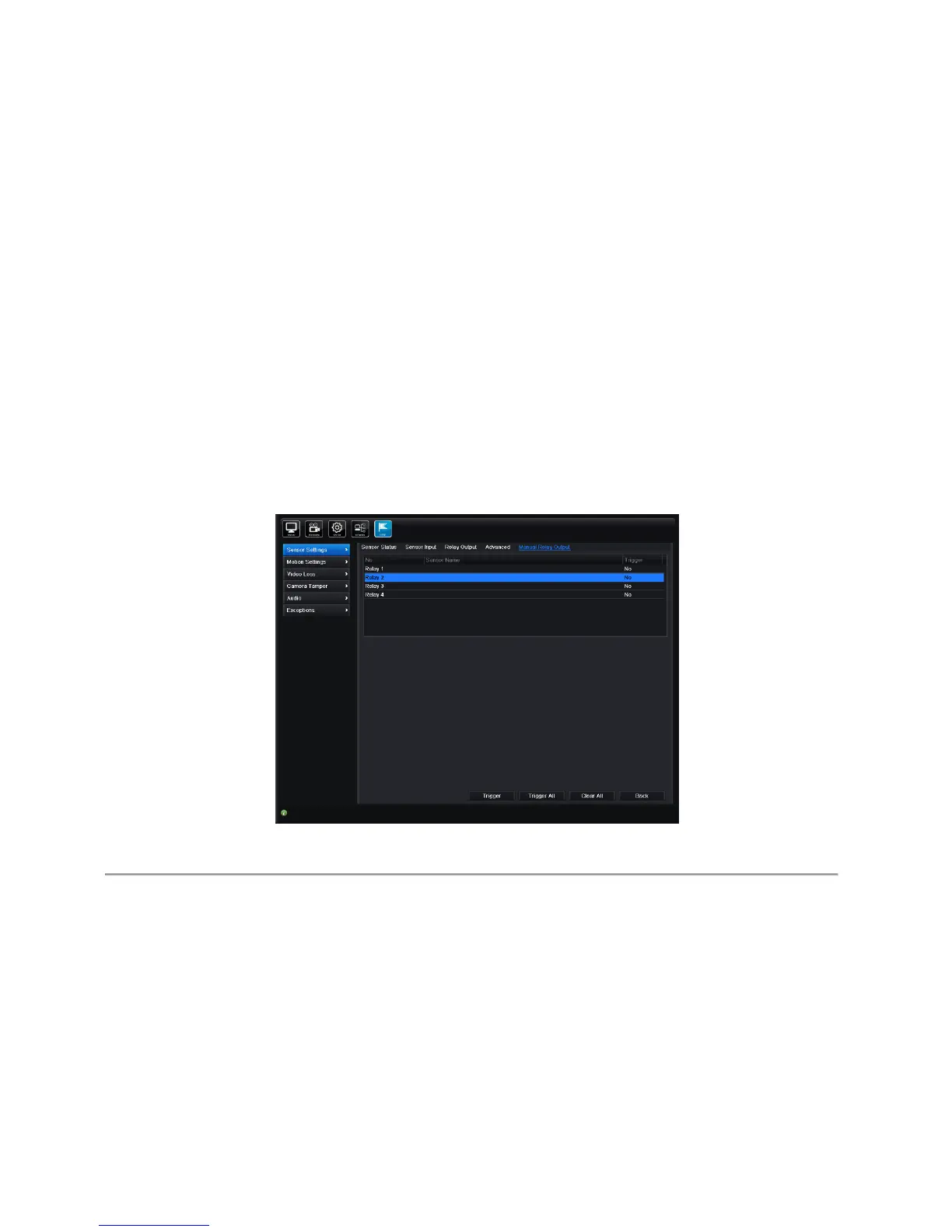

Figure 8.27 Clear or Trigger Relay Output Manually
