Xeno XDR5 real time DVRs manual V1.0
PTZ RS-485 Connections

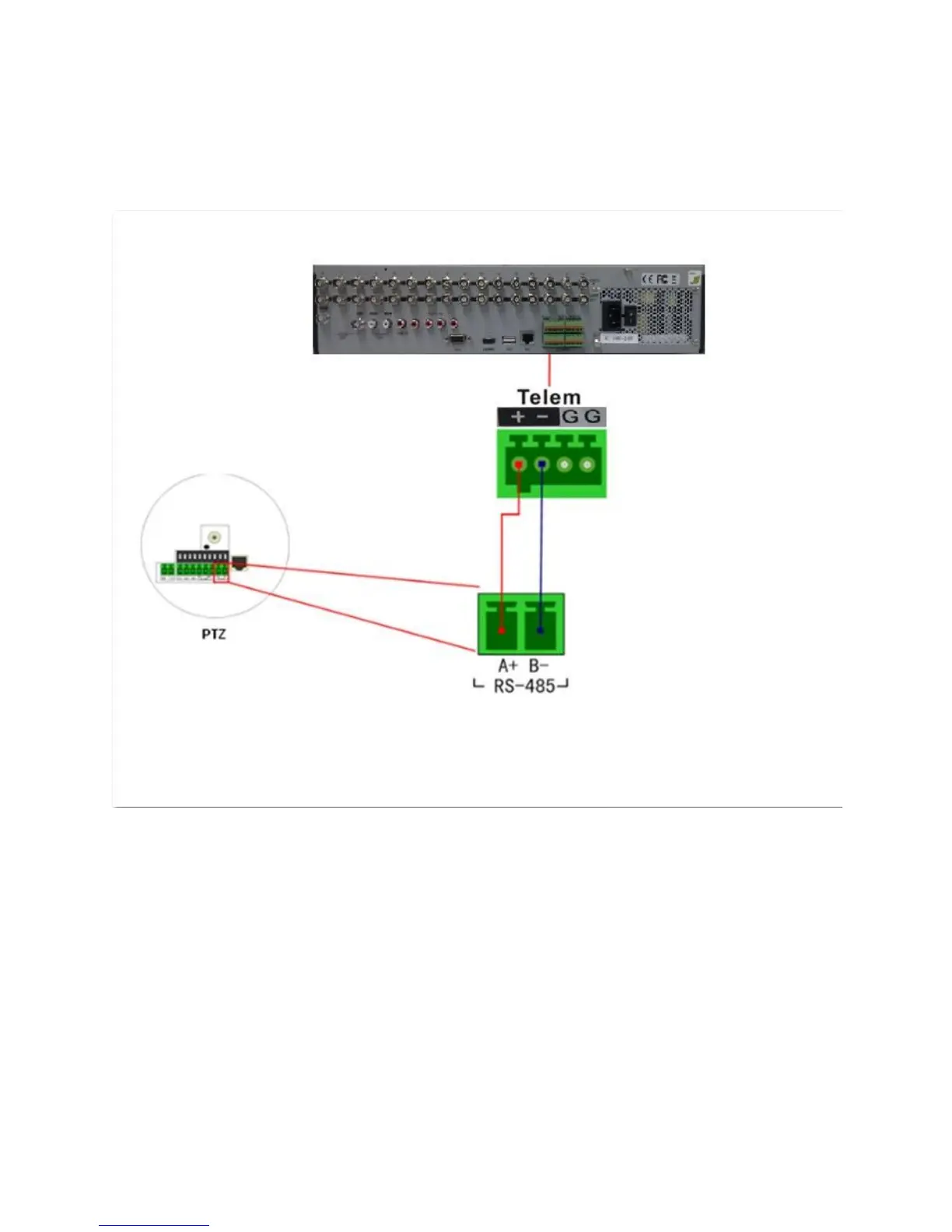

To connect RS-485 devices to the DVR:
4. Disconnect pluggable block from the RS-485 terminal block.
5. Unfasten stop screws from the pluggable block, insert signal cables into slots and fasten stop screws. Ensure
signal cables are in tight.
6. Connect pluggable block back into terminal block.
Note: Make sure the pan/tilt receiver unit is connected to the T+ and T- of the DVR.
