Xeno XDR5 real time DVRs manual V1.0
8) Click OK to back to the upper level menu.
6.6 Configuring Audio Triggered Record
Purpose:
Follow the steps to set the audio event parameters. Enabling audio alarm function can trigger certain channels to start
recording, or trigger full screen monitoring, audio warning, notify the surveillance centre and so on.
Steps:
1. Enter the Audio Event interface.
Menu>Event>Audio

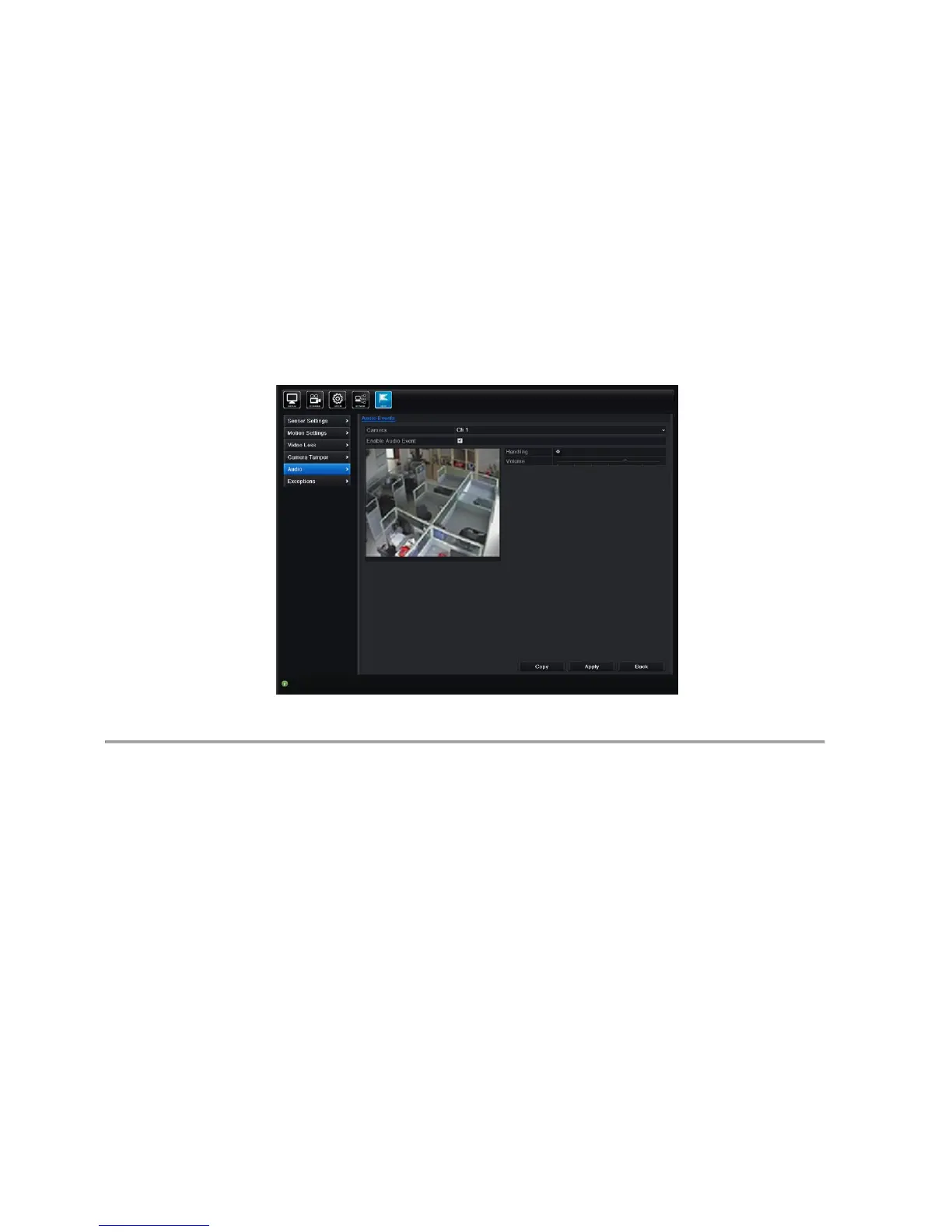

Figure 5.26 Audio Events
2. Configure Audio Events:
1) Choose camera you want to configure.
2) Check the checkbox after Enable Audio Event.
3) Adjust the sensitivity of Volume by clicking the horizontal scroll, and select the detect level of the
audio event.
4) Click Handling, and the message box for channel information will pop up.
