Xeno XDR5 real time DVRs manual V1.0
1.3 Alarm and Telemetry connections
1.3.1 Connections for XDR5960H
Connecting to Sensor Input and Relay Output Device
Note: Remote Keyboard connections are for future use

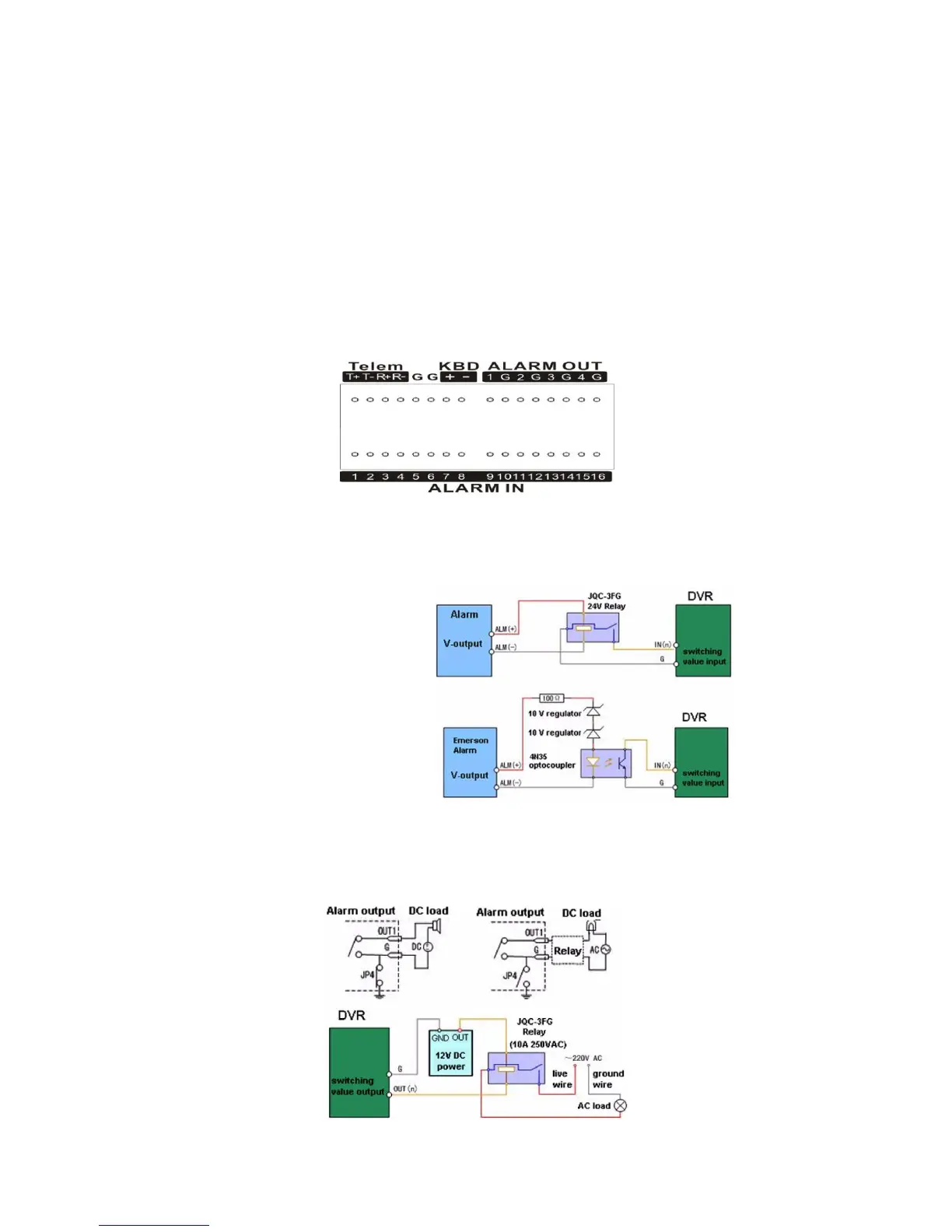

The sensor input and relay output interface of the DVR is shown as below:
The sensor input is an open/closed relay. If the input is not an
open/closed relay, follow the connection diagram below:
To connect to an AC/DC load, use the following diagram:
