MEDIA
XES SYNERGIX 8850 PRINTER OPERATOR MANUAL 13

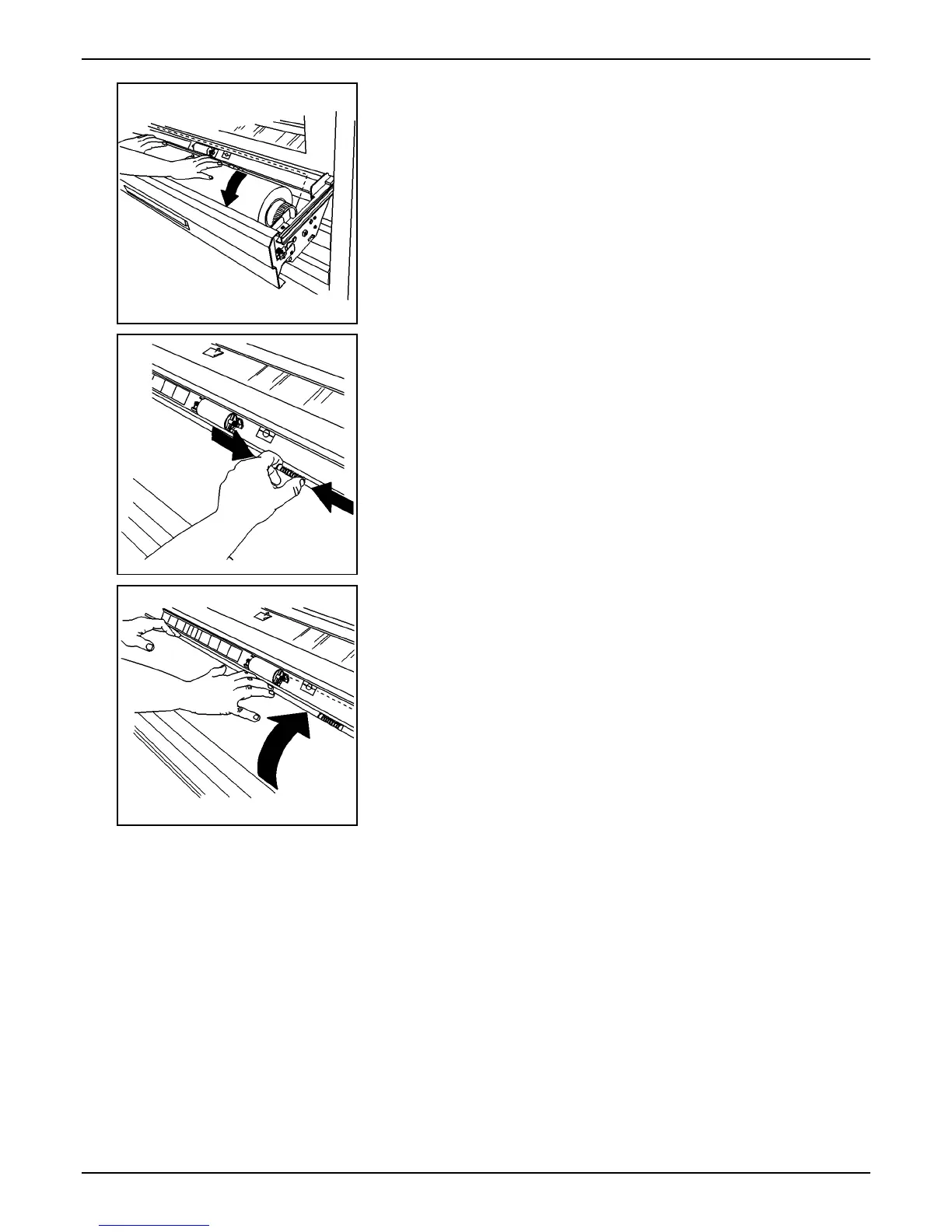

16. Rotate the media roll to feed the media under the baffle and
beyond the registration window.
NOTE: Ensure that the lead edge of the media is flat and is
not folded over itself.
17. Squeeze the baffle release and lower the baffle until it locks in
place on both sides.
18. Slowly rotate the media roll until the lead edge of the media is
centered in the registration window.
19. Do one of the following:
• If the drawer is a sealed media drawer, close the Plexiglas
cover.
• If the drawer is not a sealed media drawer, proceed to
step 20.
20. Close the roll media drawer.
21. Lower the output tray.
22. If the size or type of the new media roll is different from that of
the old media roll, you must specify the new size and type.
Refer to "Changing the roll media size and type" in this chapter
for instructions on entering the new roll media information.
