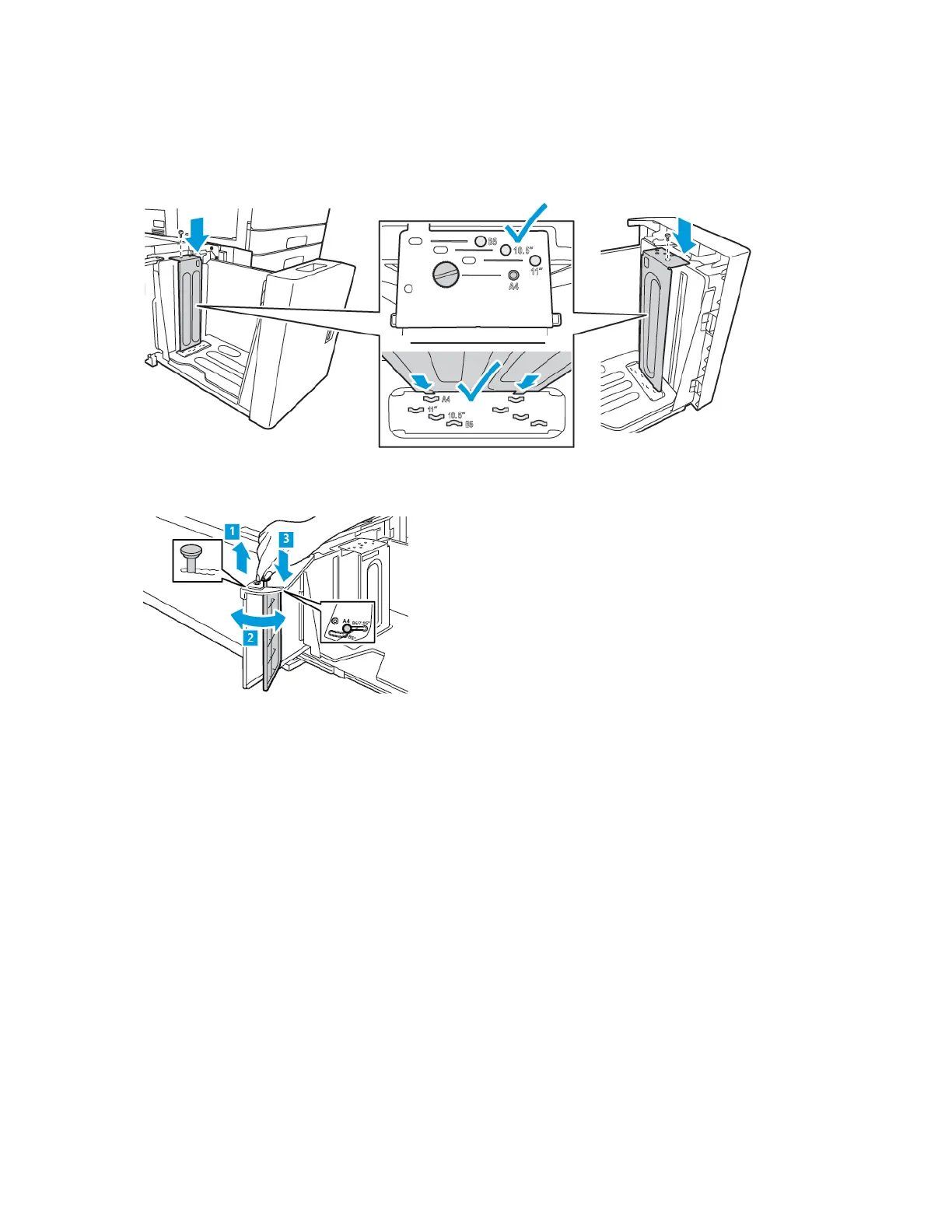

3. For the rear spacer plate, place the tabs at the bottom of the plate into the slots that correspond
with the correct paper size. Slide down the spacer plate, then engage the peg on the top of the
tray with the matching hole in the spacer plate. To secure the spacer plate, install the screw.
Repeat the procedure for the spacer plate at the front of the tray.
4. On the top of the side gate, lift the pin, then guide it into the required paper size in the slot. To
lock the side gate into place, release the pin.
5. Load paper, close the side gate, then close the tray.
6. At the control panel, select the correct type and color.
7. To confirm the settings, touch Confirm.
For information about loading paper in Tray 6, refer to Loading Paper in Tray 6.
188
Xerox
®
AltaLink
®
B81XX Series Multifunction Printer
User Guide
Paper and Media

Xerox AltaLink B8170 Specifications

General

Category	All in One Printer
Memory (Standard)	8 GB
Energy Star Certified	Yes
Functions	Print, Copy, Scan, Fax
Hard Drive	320 GB
Duplex Printing	Yes
Connectivity	Ethernet
Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Network Connectivity	Ethernet
Operating System Compatibility	Linux
Print Speed (Black)	Up to 70 ppm
Copy Speed	Up to 70 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
