Xerox AltaLink B8170 User Manual

DDuupplleexx AAuuttoommaattiicc DDooccuummeenntt FFeeeeddeerr

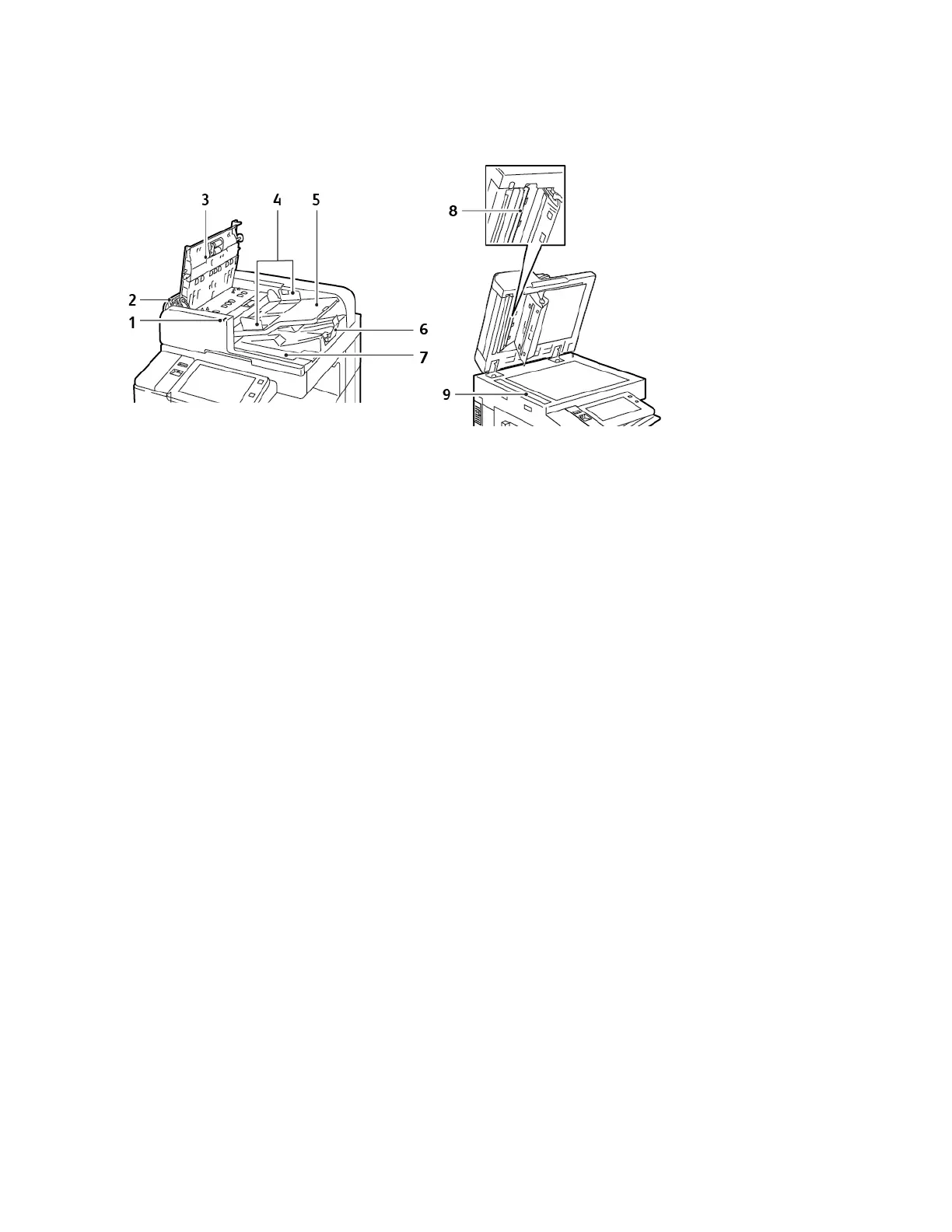

1. Confirmation Indicator
2. Left Cover
3. Top Cover
4. Document Guides
5. Document Feeder Tray
6. Document Output Tray
7. Lint Free Cloth Compartment
8. Second-Side Scanning Lens Assembly
9. Constant Velocity Transport (CVT) Glass
Duplex Automatic Document Feeder Guidelines
The duplex automatic document feeder accommodates the following paper sizes and weights:
• B8145 / B8155:
– Original document weights: 38–128 g/m²
– Original document sizes: 85 x 125 mm–297 x 432 mm (3.3 x 4.9–11.7 x 17 in.)
– Original document quantity: 130 sheets of 80-g/m² paper
• B8170:
– Original document weights: 38–200 g/m²
– Original document sizes: 84 x 140–297 x 432 mm (3.3 x 5–11.7 x 17 in.)
– Original document quantity: 250 sheets of 80-g/m² paper
Follow these guidelines when you load original documents into the duplex automatic document
feeder:
• Load original documents face up so that the top of the document enters the feeder first.
• Place only loose sheets of undamaged paper in the duplex automatic document feeder.
• Adjust the paper guides so that they fit against the original documents.
Xerox
®
AltaLink
®
B81XX Series Multifunction Printer
User Guide
23
Getting Started

Xerox AltaLink B8170 Specifications

General

Category	All in One Printer
Memory (Standard)	8 GB
Energy Star Certified	Yes
Functions	Print, Copy, Scan, Fax
Hard Drive	320 GB
Duplex Printing	Yes
Connectivity	Ethernet
Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Network Connectivity	Ethernet
Operating System Compatibility	Linux
Print Speed (Black)	Up to 70 ppm
Copy Speed	Up to 70 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
