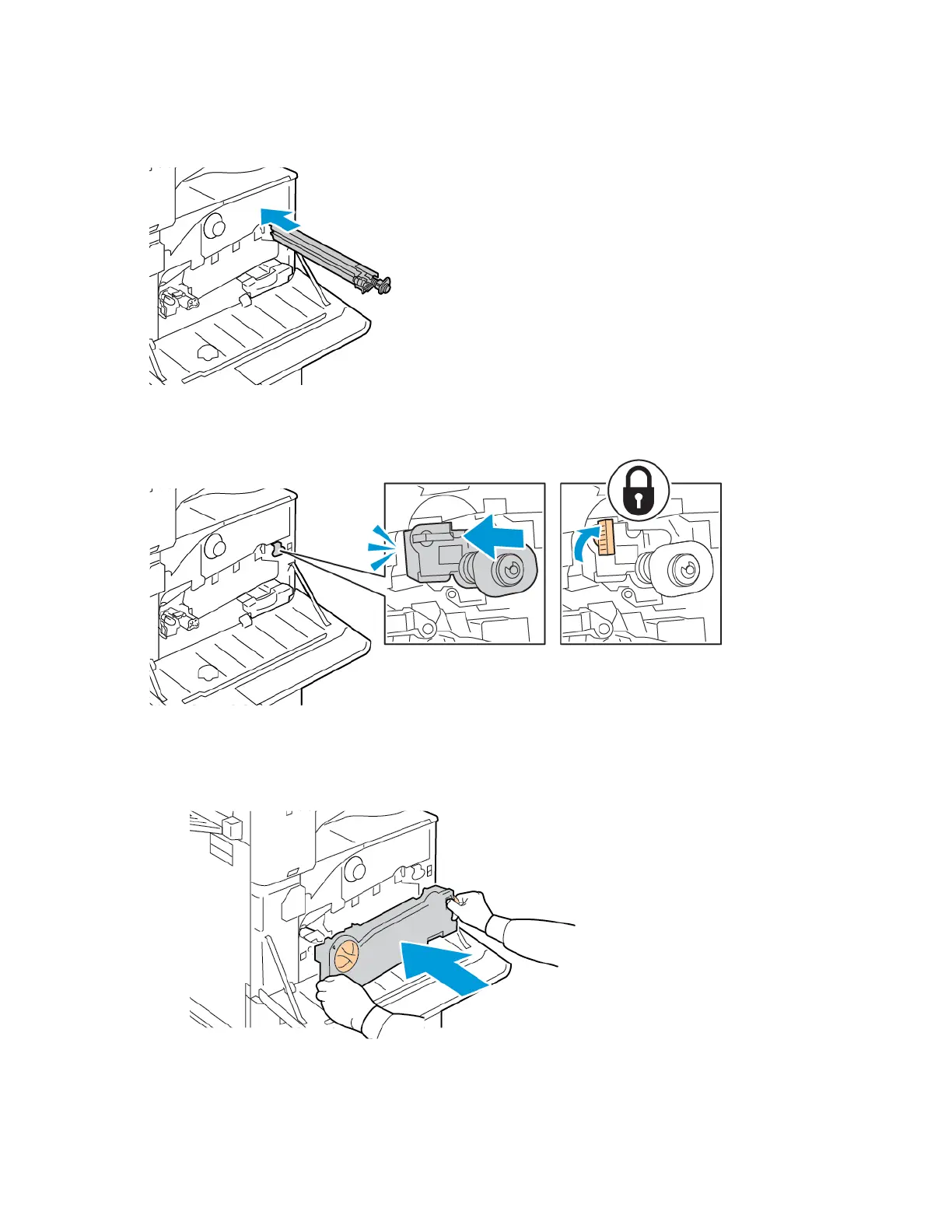

6. Support the new transfer belt cleaner with your left hand and slide it straight into the opening
until it stops.
7. Push the belt cleaner until it clicks into place, then to lock the belt cleaner, turn the orange lever
to the right.
8. To insert the waste toner transport unit:
a. Position the waste toner transport unit as shown.
Xerox
®
AltaLink
®
B81XX Series Multifunction Printer
User Guide
243
Maintenance
