Xerox AltaLink B8170 User Manual

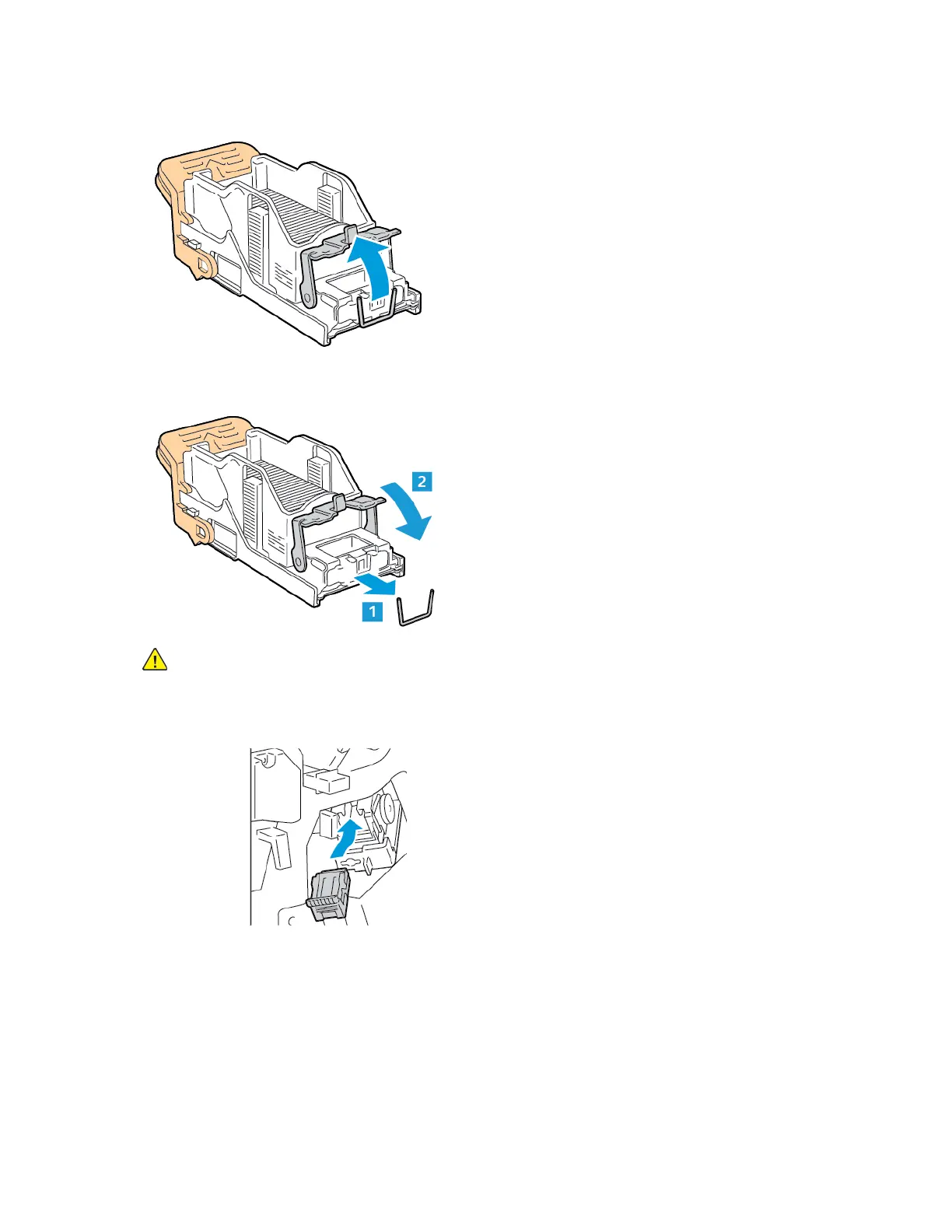

4. To open the staple cartridge clamp, pull the clamp in the direction shown.
5. Remove the jammed staples, then push the clamp in the direction shown until the clamp clicks
into the locked position.
WARNING: The points of the jammed staples are sharp. Remove the jammed staples
carefully.
6. Grasp the staple cartridge by the orange handle, then insert the cartridge into the stapler
assembly until the staple cartridge clicks into place.
7. Return the stapler assembly to the original position, then close the finisher door.
318
Xerox
®
AltaLink
®
B81XX Series Multifunction Printer
User Guide
Troubleshooting

Xerox AltaLink B8170 Specifications

General

Category	All in One Printer
Memory (Standard)	8 GB
Energy Star Certified	Yes
Functions	Print, Copy, Scan, Fax
Hard Drive	320 GB
Duplex Printing	Yes
Connectivity	Ethernet
Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Network Connectivity	Ethernet
Operating System Compatibility	Linux
Print Speed (Black)	Up to 70 ppm
Copy Speed	Up to 70 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android, Mopria
