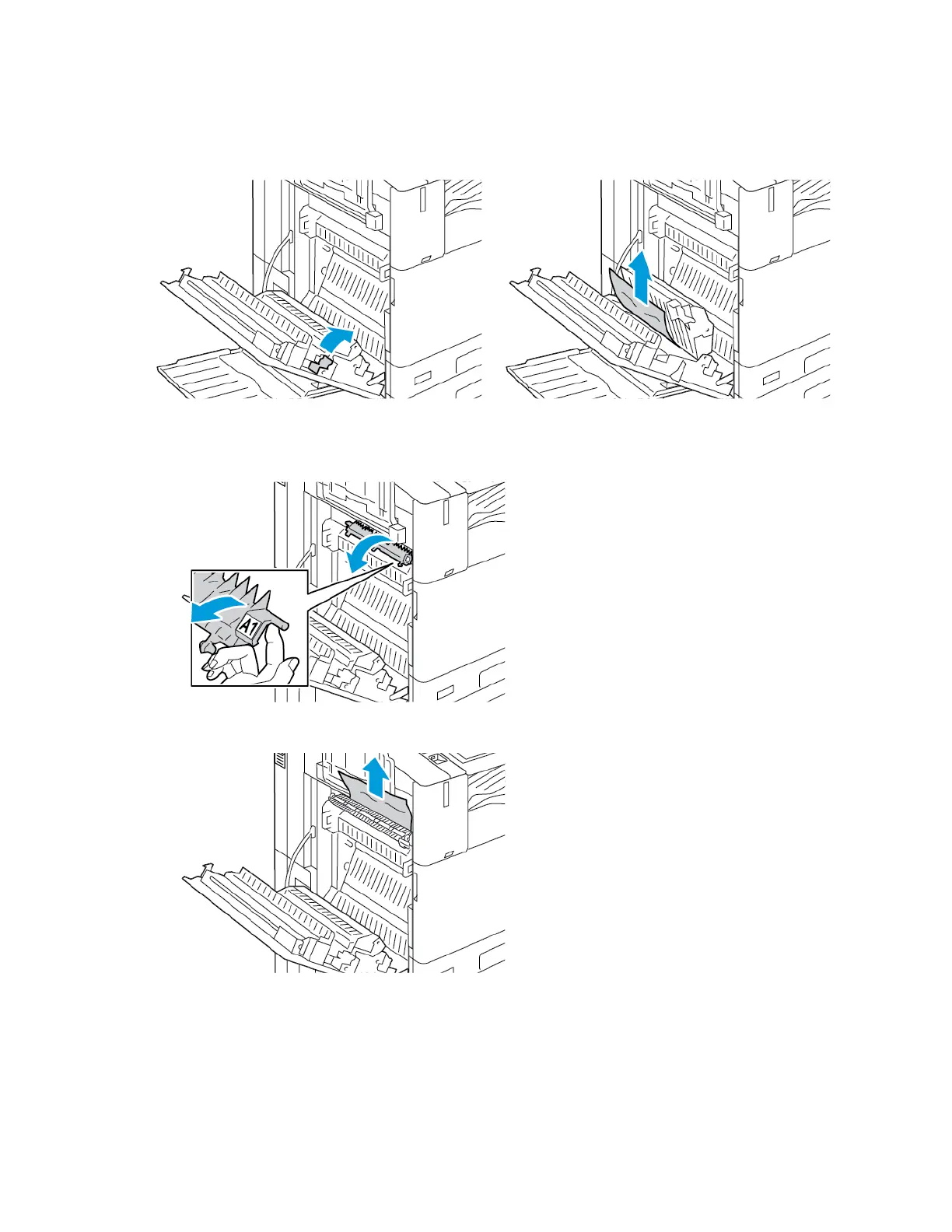

4. If paper is jammed on the inside of door A, lift handle A3, then remove the jammed paper.
Return handle A3 to the original position.
5. If paper is jammed in the fuser, remove the jammed paper from areas A1 and A2.
a. To open the paper guide, pull handle A1 toward you.
b. Remove any jammed paper in area A1.
Xerox
®
AltaLink
®
C81XX Series Color Multifunction Printer
User Guide
313
Troubleshooting
