Service Settings
ColorQube™ 9301/9302/9303
Administration and Accounting
286

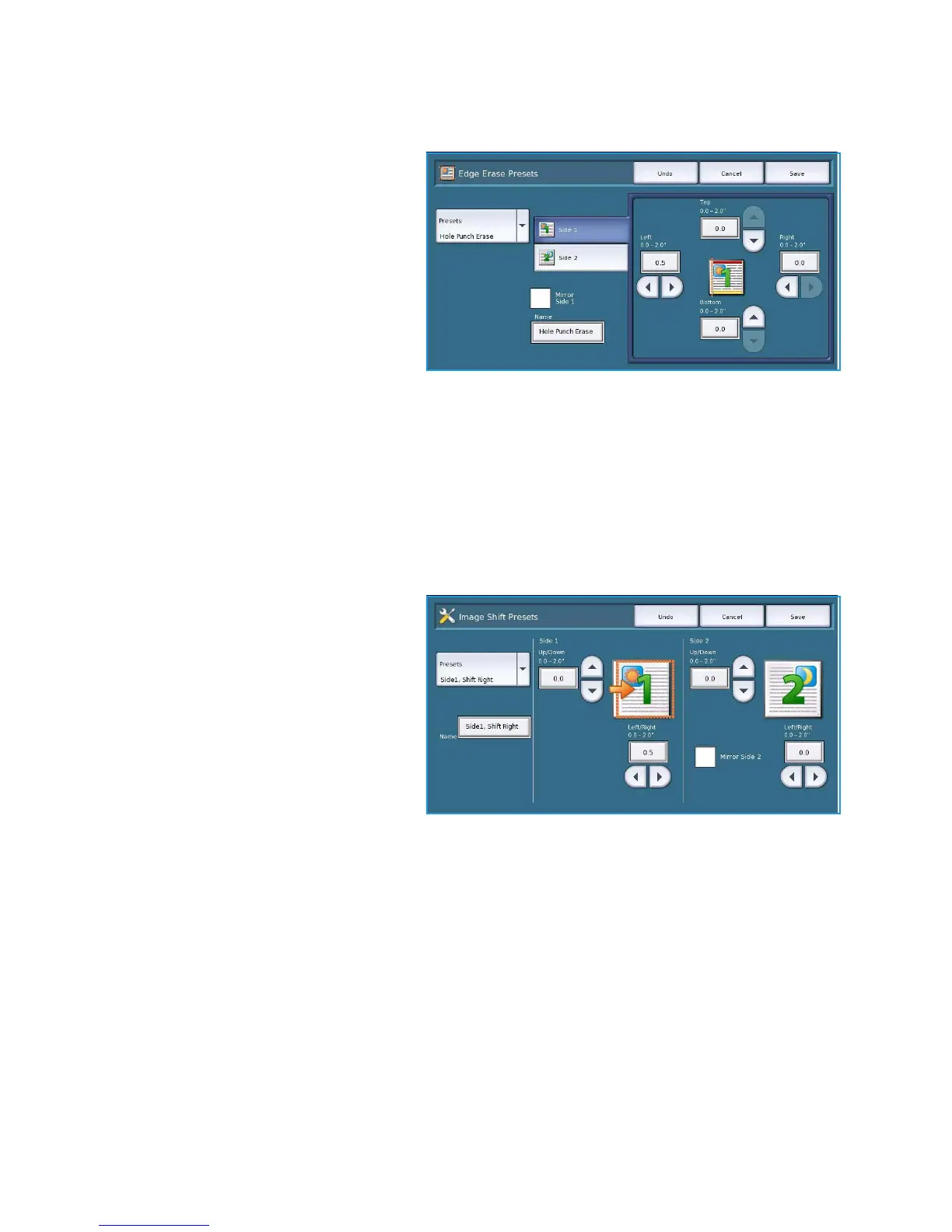

Edge Erase Presets
Enables you to setup the Edge Erase pre-
set entries. There are 2 pre-named preset
options and an Available setting. All of the
presets can be customized with names and
settings to meet your needs.
Note The device applies an
automatic edge deletion to all printed
output.
• Select the preset option required from
the Presets menu.
• Select the sides options as required,
Side 1, Side 2 and Mirror Side 1.
• Select Name to customize the name of the preset option. Use Clear Text to clear the existing
name and enter a new name using the keyboard. Use the backspace key to delete an incorrect
character entry. Select Save.
• Enter the deletion amounts for the Top, Bottom, Left and Right margins. The parameters entered
are the defaults shown when the preset is selected.
Image Shift Presets
Enables you to setup the Image Shift pre-
set entries. There are 2 pre-named preset
options and an Available setting. All of the
presets can be customized with names and
settings to meet your needs.
• Select the preset option required from
the Presets menu.
• Select Name to customize the name
of the preset option. Use Clear Text
to clear the existing name and enter a
new name using the keyboard. Use
the backspace key to delete and incorrect character entry. Select Save.
• Enter the amounts for shifting Up/Down and Left/Right for Side 1.
• Enter the amounts for shifting Up/Down and Left/Right for Side 2. Select Mirror Side 2 if the shift
for the second side should be the same as for the first side.
The parameters entered are the defaults shown when the preset is selected.
