Xerox DocuMate 152i User Manual

Welcome Xerox
®
DocuMate
®
152i
User Guide 3
Xerox
®

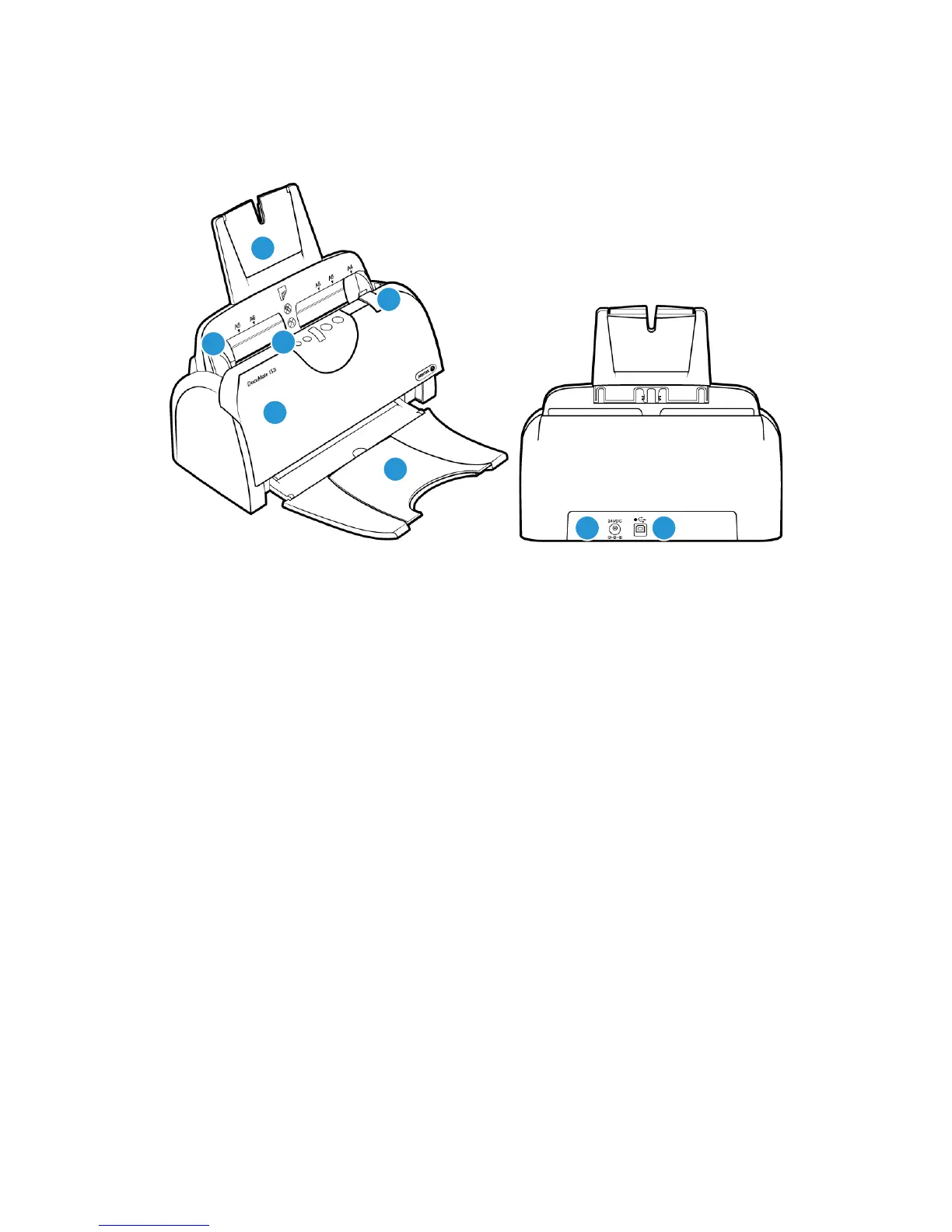

DocuMate 152i Scanner
1. Input Tray—holds the documents in the Automatic Document Feeder for scanning.
2. Paper Guides—guides adjust to support various document widths.
3. Control panel—OneTouch scanning controls.
– Status light / Power Button—turns the scanner’s power off and shows the scanner’s
status.
– Function button—selects the scan setting for the OneTouch buttons. Press to cycle
through the settings.
– LED Number—shows the current OneTouch function for the Simplex and Duplex
buttons.
– Duplex button—press to scan double-sided documents.
– Simplex button—press to scan single-sided documents.
4. Cover Release—pull to open the Automatic Document Feeder.
5. Automatic Document Feeder—feeds documents through the scanner during scanning.
6. Output Tray—holds documents after being scanned. Unfolds to support various document
lengths.
7. Power jack—connects the power cord to the scanner.
8. Universal Serial Bus (USB) port—connects the scanner to the computer.
1
2
3
4
5
6
7 8

Xerox DocuMate 152i Specifications

General

ADF Capacity	50 sheets
Connectivity	USB 2.0
Duplex Scanning	Yes
Scanning Technology	CIS (Contact Image Sensor)
Color Depth	24-bit
Max Document Size	8.5" x 14"
Maximum Document Size	8.5" x 14"
Supported Operating Systems	Windows
Optical Resolution	600 dpi
