Repair Procedures 4-6 Xerox DocuPrint P8e Service Manual
REP 4.1.3 Rear Cover
Removal
1 Switch the printer power off and disconnect the AC power cord.
2 Remove the three screws that secure the Rear Cover (Figure 4.1.3a).
3 Release the two lock tabs that secure the bottom of the cover (Figure 4.1.3a).
4 Slide the cover up and remove.

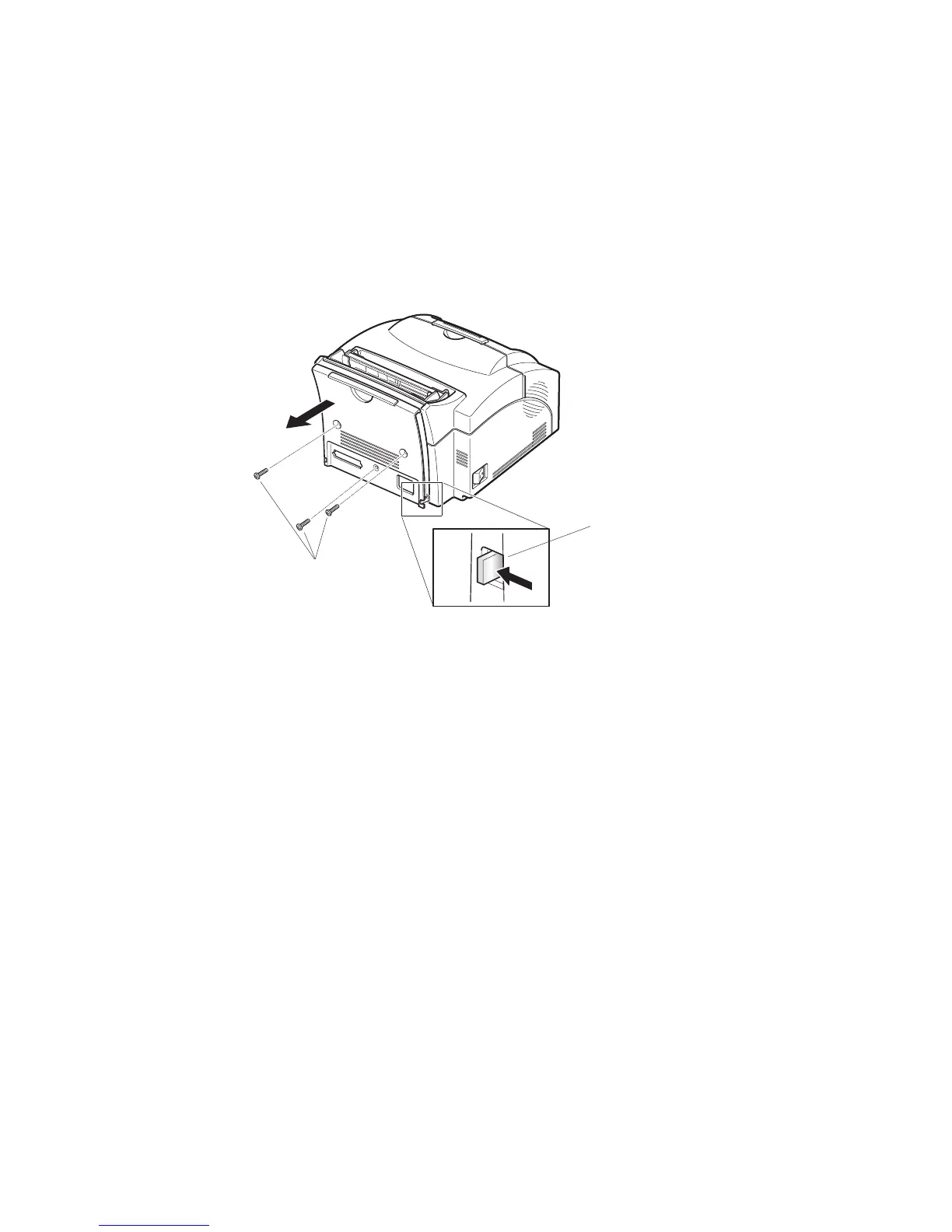

Figure 4.1.3a. Rear Cover.
Replacement
1 Assemble in reverse order.
2 Verify proper operation.
P8e_236
