Xerox DocuPrint P8e Service Manual

7/98
Repair Procedures 4-4 Xerox DocuPrint P8e Service Manual
REP 4.1 Covers
REP 4.1.1 Face Up Cover
Removal
1 Switch the printer power off and disconnect the AC power cord.
2 Press on the two locking tabs and open the cover (Figure 4.1.1a).
3 Carefully bend the cover in the middle until the hinge pin is free of the printer frame (Figure
4.1.1b).
4 Remove the Face Up Cover.

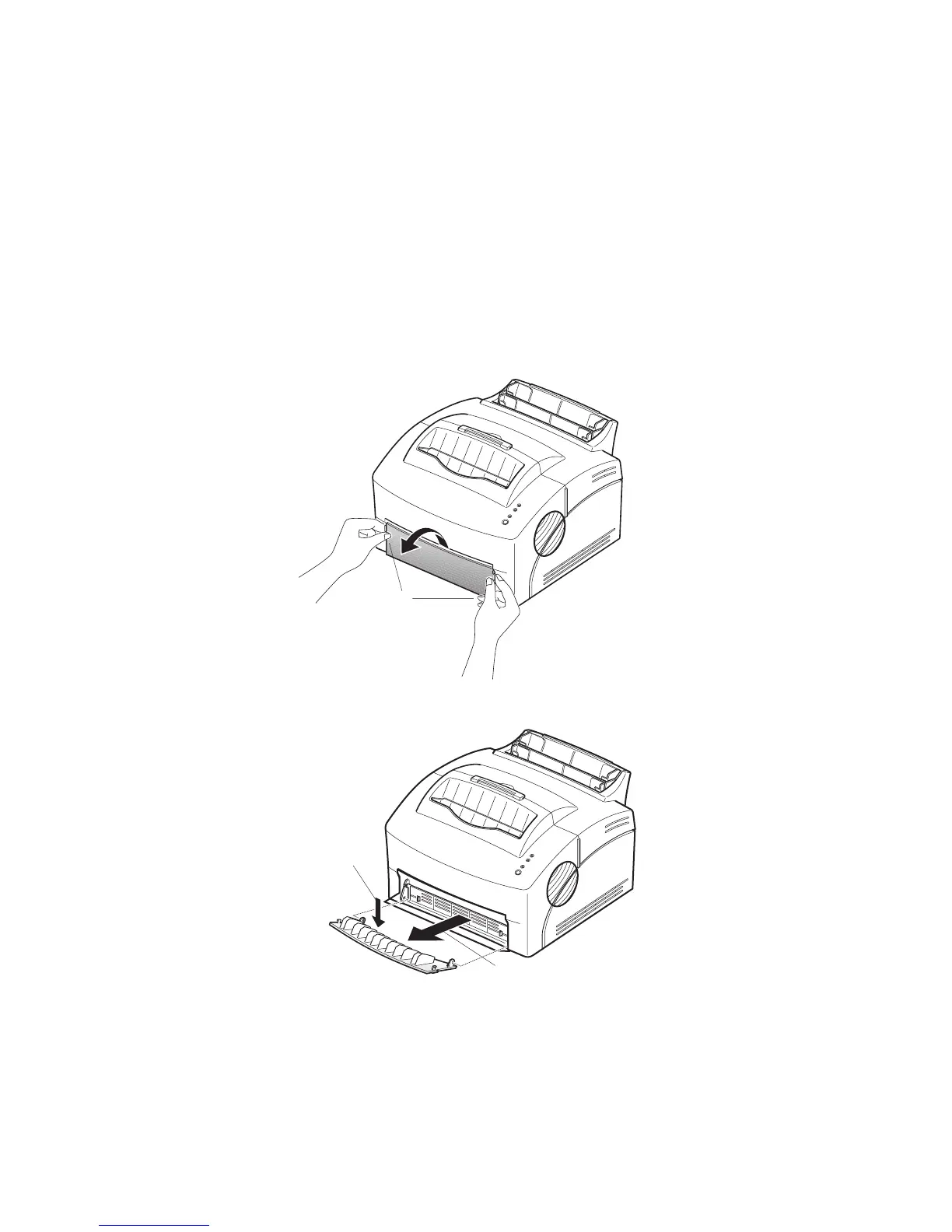

Figure 4.1.1a. Face Up Cover Locking Tabs.
Figure 4.1.1b. Face Up Cover Removal.
Replacement
1 Assemble in reverse order.
2 Verify proper operation.
P8e_257
2
P8e_258
3
4
