Xerox DocuPrint P8e Service Manual 4-7 Repair Procedures
REP 4.1.4 Top Cover
Removal
1 Switch the printer power off and disconnect the AC power cord.
2 Remove the Rear Cover (REP 4.1.3).
3 Open the Front Cover and remove the Print Cartridge (REP 4.5.1).
4 Remove the two screws that secure the front of the Top Cover (Figure 4.1.4a).
5 Lift the Top Cover to remove (Figure 4.1.4a).

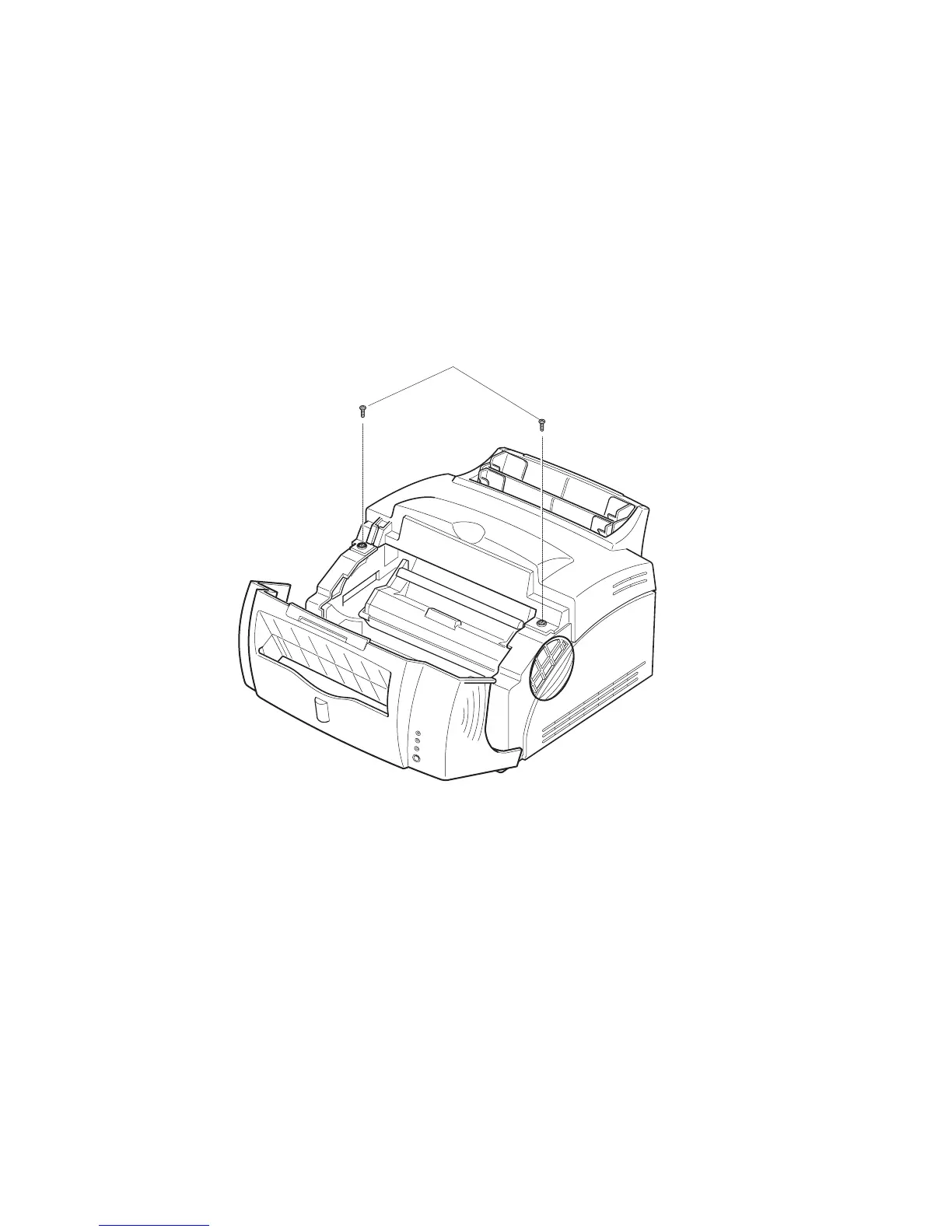

Figure 4.1.4a. Top Cover Removal.
Replacement
1 Assemble in reverse order.
2 Verify proper operation.
