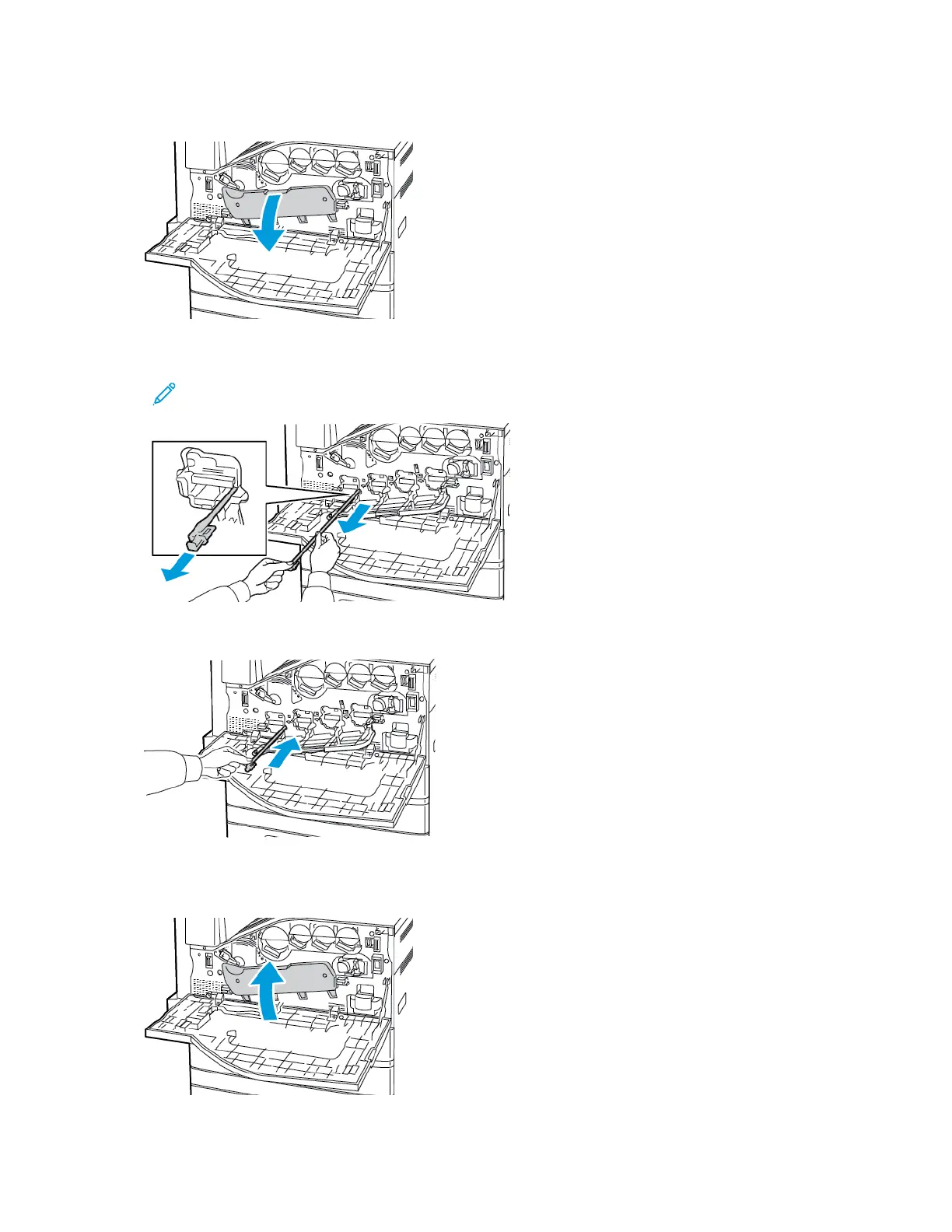

3. Pull the drum cartridge cover down until it clicks into the open position.
4. Each of the four printheads has its own cleaning tool. Slowly pull out the LED printhead cleaner
until the three dots are visible.
Note: The LED printhead cleaner does not detach from the printer.
5. Slowly push the LED printhead cleaner back into the printhead until it stops.
6. Repeat Steps 4 and 5 for each printhead.
7. Close the drum cartridge cover.
216
Xerox
®
EC8036/EC8056 Color Multifunction Printer
User Guide
Maintenance
