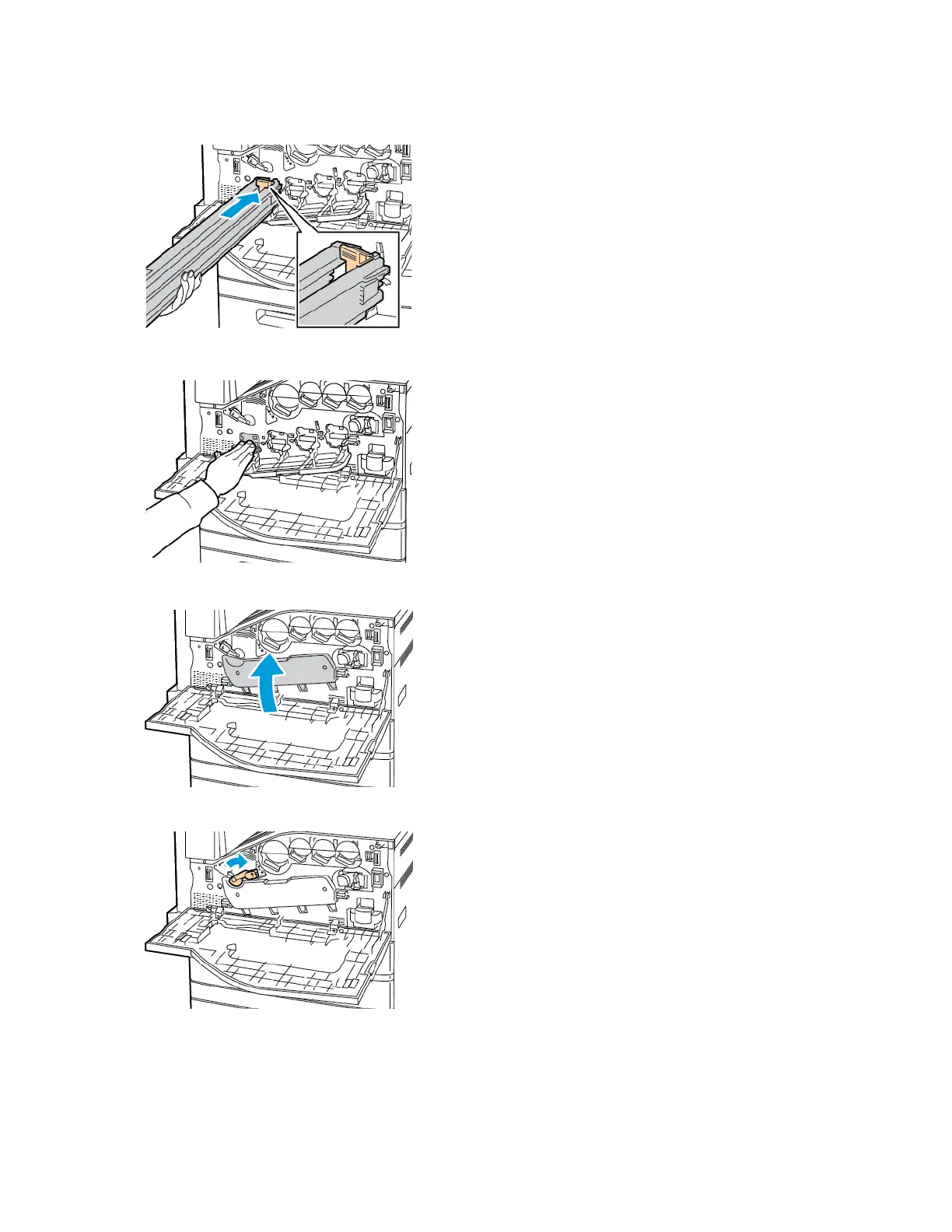

9. Continue to push the orange handle until it stops.
10. Carefully remove the protective shield, then push the drum cartridge until it stops.
11. Close the drum cartridge cover.
12. Turn the belt tension lever to the right to return it to the locked position.
13. Close the printer front cover.
14. Dispose of the protective shield and tape as normal office waste.
226
Xerox
®
EC8036/EC8056 Color Multifunction Printer
User Guide
Maintenance
