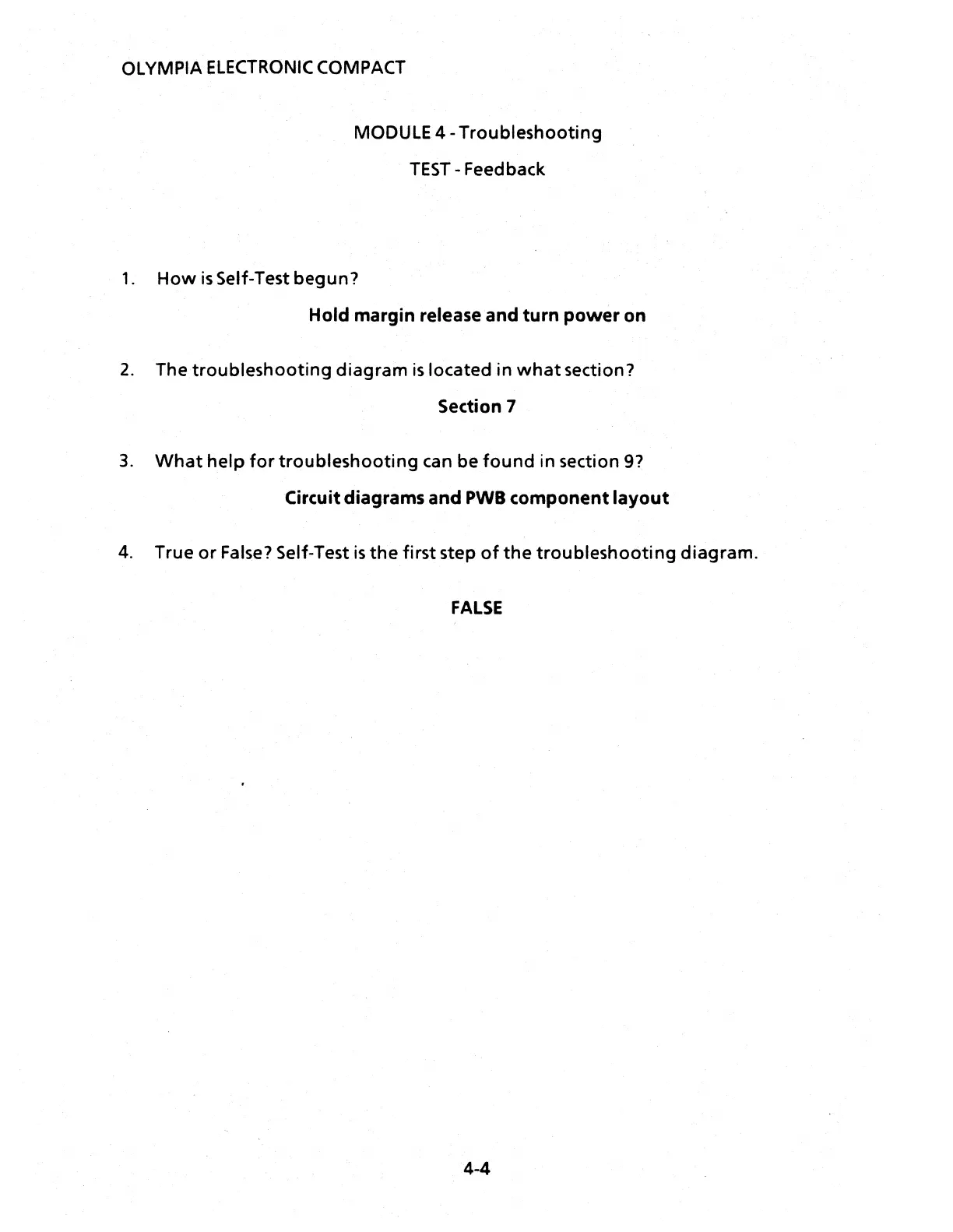

OLYMPIA

ELECTRONIC

COMPACT

MODULE

4-Troubleshooting

TEST- Feedback

1.

How

is

Self-Test begun?

Hold margin release and

turn

power

on

2. The

troubleshooting

diagram

is

located in

what

section?

Section 7

3.

What

help

for

troubleshooting

can be

found

in section

9?

Circuit diagrams and

PWB

component

layout

4.

True

or

False?

Self-Test

is

the

first

step

of

the

troubleshooting

diagram.

FALSE

4-4
