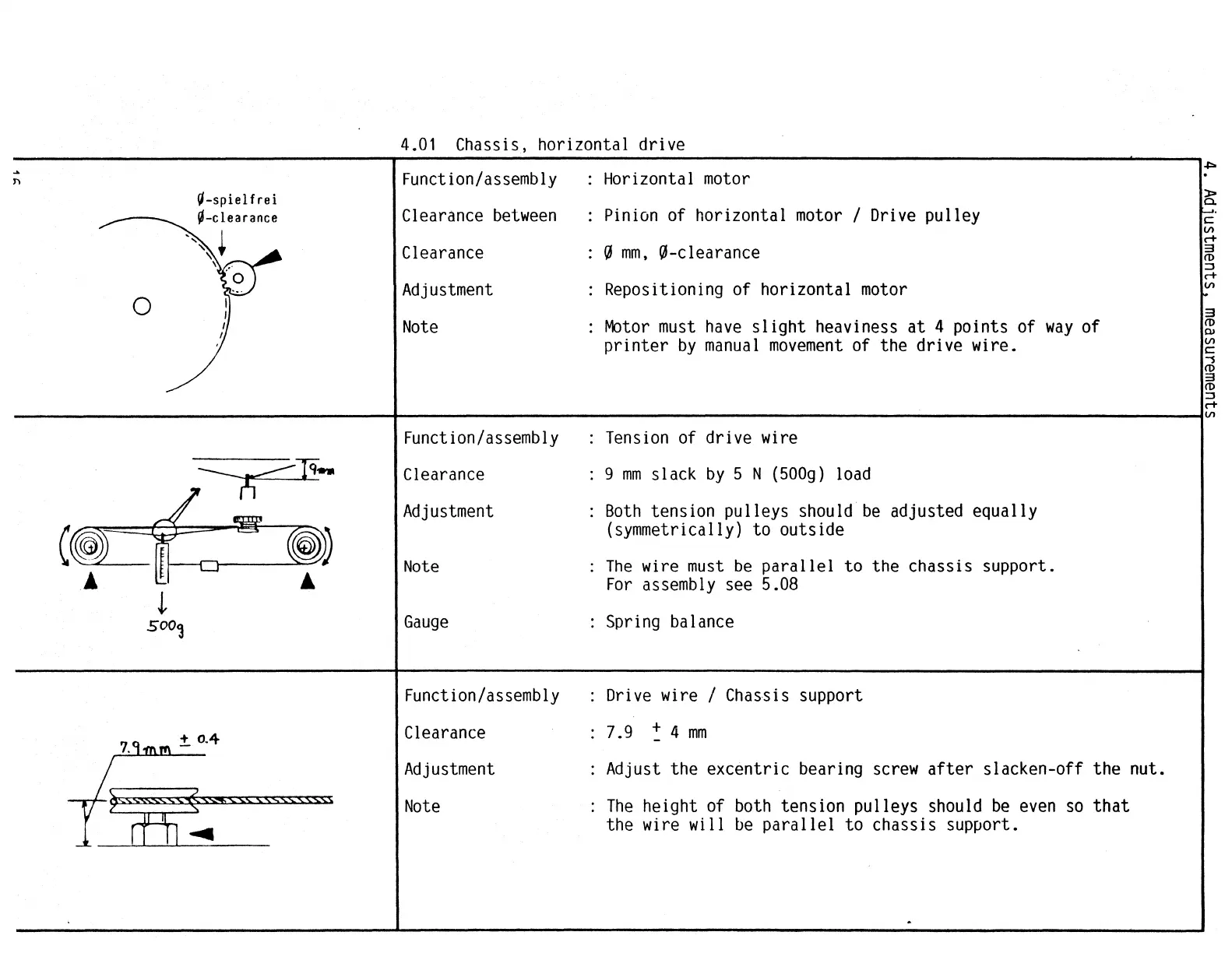

4.01 Chassis, horizontal drive
Function/assembly
Clearance between
Clearance
Adjustment
Note
Horizontal motor
Pinion of horizontal motor I Drive pulley
0 mm, 0-clearance
Repositioning of horizontal motor
M:>tor must have slight heaviness at 4 points of way of
printer by manual movement of the drive wire.
"""
5:
-'•
c
~
r+
3
ro
~
c+
~
3
ro
~
~
c
~
ro
3
ro
~
r+
-----------------------------------------------------+-----------------------------------------------------------------------------------------------------------------1~
--~-<If191R
t
soo~
7.
.:!:. 0.4
~:=~~~™'<S:S:: s:sss;s:sssss
T. -H~->
rtil .....
Function/assembly
Clearance
Adjustment
Note
Gauge
Function/assembly
Clearance
Adjustment
Note
Tension of drive wire
9 mm slack by 5 N (500g) load
Both tension pulleys should be adjusted equally
(symmetrically) to outside
The wire must be parallel to the chassis support.
For assembly see 5.08
Spring balance
Drive wire I Chassis support
7.9 ! 4 mm
Adjust the excentric bearing screw after slacken-off the nut.
The height of both tension pulleys should be even so that
the wire will be parallel to chassis support.
