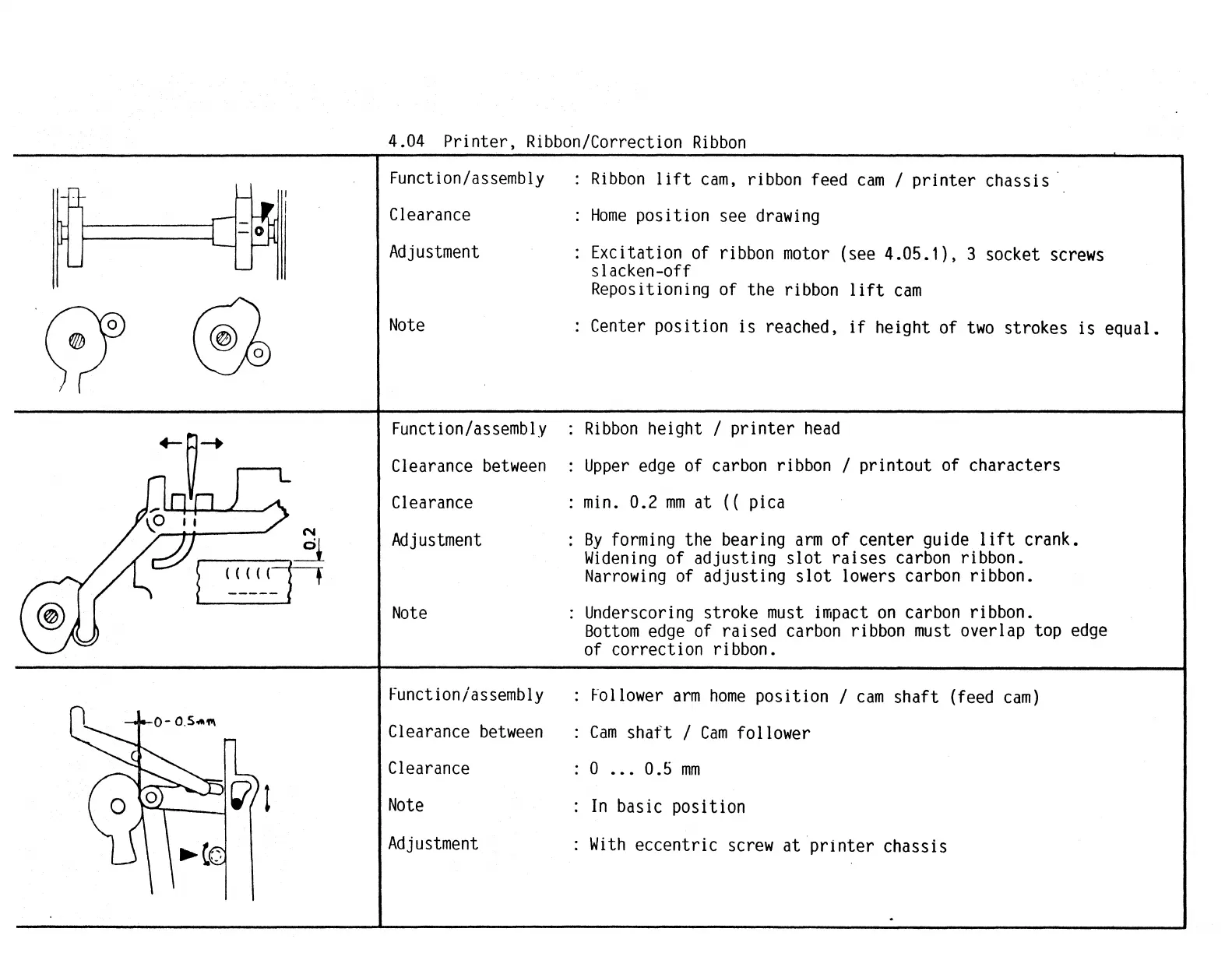

4.04 Printer, Ribbon/Correction Ribbon
Function/assembly
Clearance
Adjustment
I Note
Function/assembly
Clearance between
Clearance
I Adjustment
Note
Function/assembly
Clearance between
Clearance
Note
Adjustment
Ribbon lift cam, ribbon feed cam I printer chassis·
Home position see drawing
Excitation of ribbon motor (see 4.05.1), 3 socket screws
slacken-off
Repositioning of the ribbon lift cam
Center position is reached, if height of two strokes is equal.
Ribbon height I printer head
Upper edge of carbon ribbon I printout of characters
min. 0.2 mm at (( pica
By forming the bearing arm of center guide lift crank.
Widening of adjusting slot raises carbon ribbon.
Narrowing of adjusting slot lowers carbon ribbon.
Underscoring stroke must impact on carbon ribbon.
Bottom edge of raised carbon ribbon must overlap top edge
of correction ribbon.
Follower arm home position I cam shaft (feed cam)
Cam shaft I Cam follower
O ..• 0.5 mm
In basic position
With eccentric screw at printer chassis
