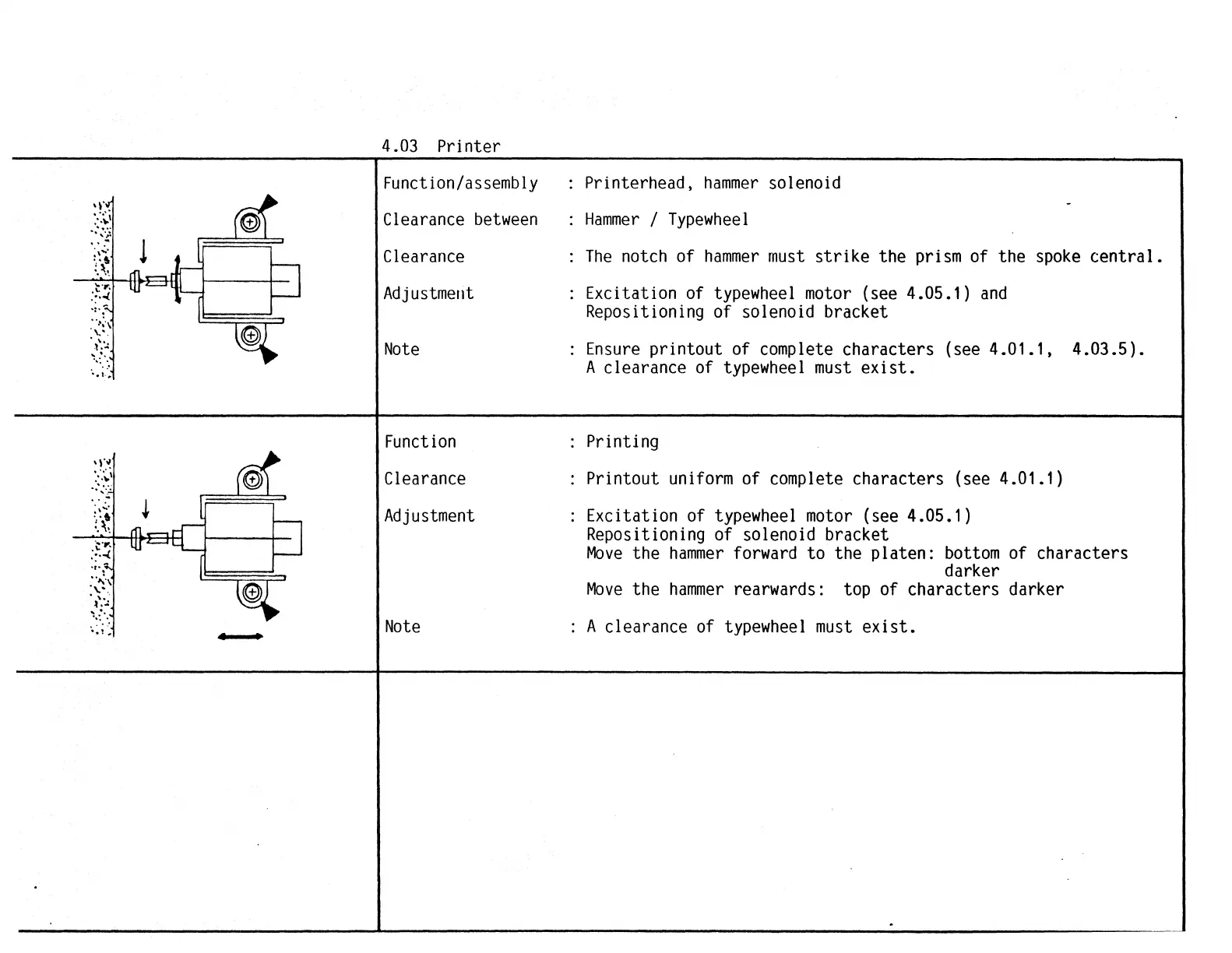

4.03 Printer
Function/assembly
Clearance between
Clearance
Adjustment
Note
Function
Clearance
Adjustment
Note
Printerhead, hammer solenoid
Hammer I Typewheel
The notch of hammer must strike the prism of the spoke central.
Excitation of typewheel motor (see 4.05.1) and
Repositioning of solenoid bracket
Ensure printout of complete characters (see 4.01.1, 4.03.5).
A clearance of typewheel must exist.
Printing
Printout uniform of complete characters (see 4.01.1)
Excitation of typewheel motor (see 4.05.1)
Repositioning of solenoid bracket
Move the hammer forward to the platen: bottom of characters
darker
Move the hammer rearwards: top of characters darker
A clearance of typewheel must exist.
