Xerox OLYMPIA ELECTRONIC COMPACT - Chassis, Paper Injector

Sch alter
switch
~. spielfrei
~-clearance
I llll II~
I >
j
o. 3111rn
I- I 7'ffl'fl

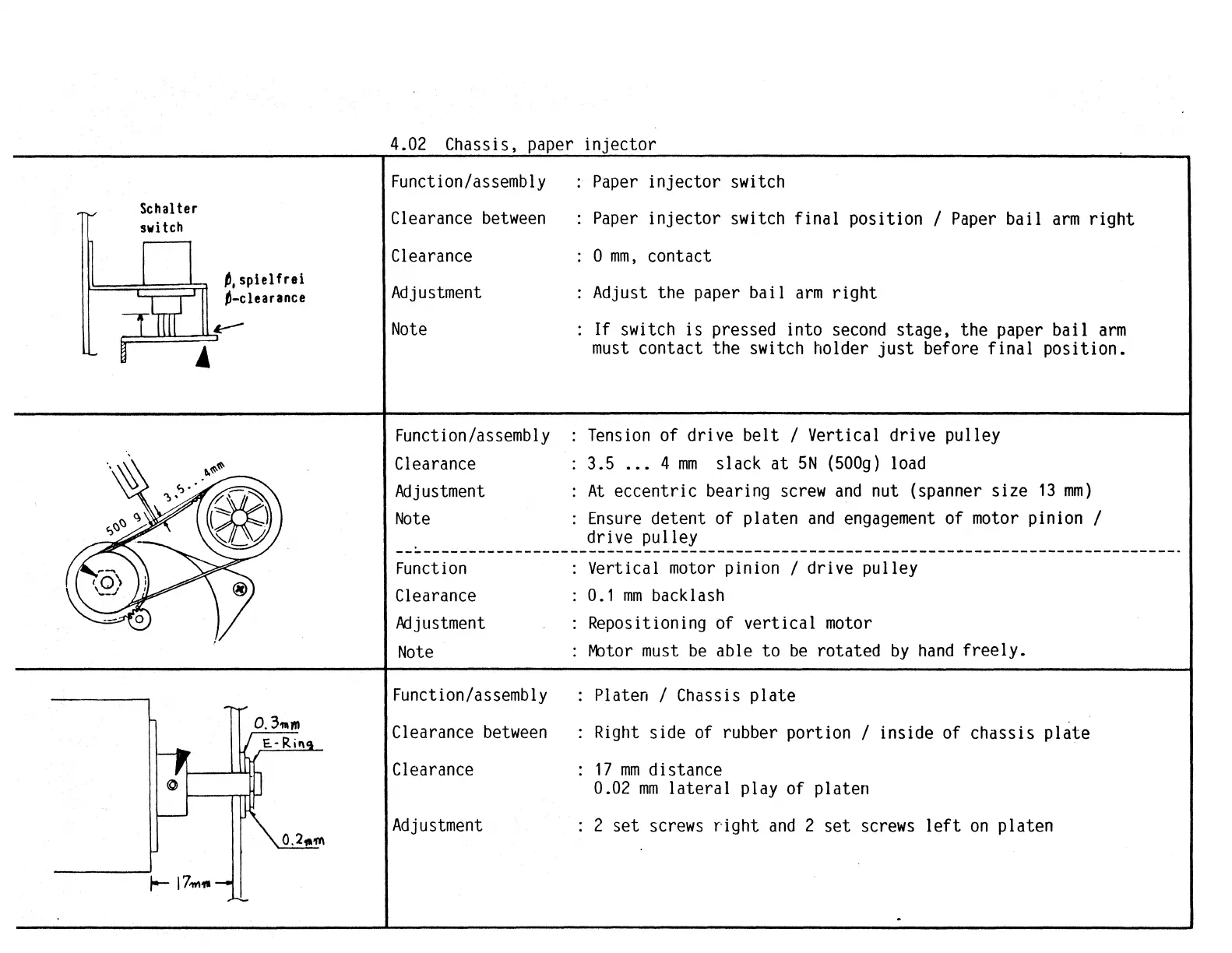

4.02 Chassis, paper injector
Function/assembly
Clearance between
Clearance
Adjustment
Note
Function/assembly
Clearance
Paper injector switch
Paper injector switch final position I Paper bail arm right
0 mm, contact
Adjust the paper bail arm right
If switch is pressed into second stage, the paper bail arm
must contact the switch holder just before final position.
Tension of drive belt I Vertical drive pulley
3.5 ... 4 mm slack at 5N (500g) load
Adjustment : At eccentric bearing screw and nut (spanner size 13 mm)
Note : Ensure detent of platen and engagement of motor pinion I
--~------------------~~~~~-~~~~~~----------------------------------------------------·
Function
Clearance
Mjustment
Note
Function/assembly
Clearance between
Clearance
Adjustment
Vertical motor pinion I drive pulley
0.1 mm backlash
Repositioning of vertical motor
l\btor must be able to be rotated by hand freely.
Platen I Chassis plate
Right side of rubber portion I inside of chassis plate
17 mm distance
0.02 mm lateral play of platen
2 set screws right and 2 set screws left on platen
