~.s
....
""
()..
b
r€Cc
'estell-hhmen
Chassis side fra1e
OW-lah1en
/ Printer chassis
6,5
mm
4.01

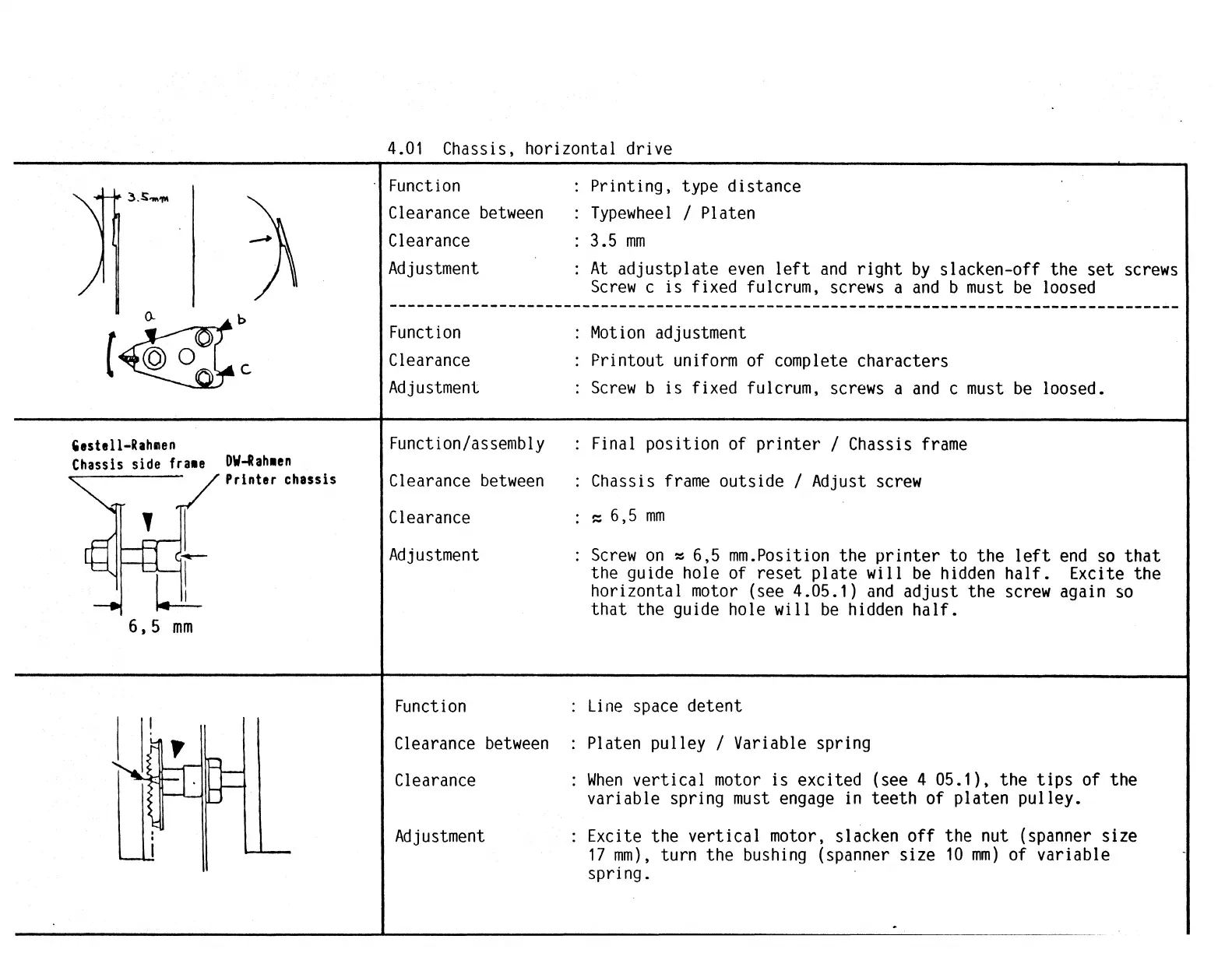

Chassis, horizontal drive
Function
Clearance
between
Clearance
Adjustment
Printing, type distance
Typewheel
I Platen
3.5
mm
At
adjustplate
even
left
and
right
by
slacken-off the
set
screws
Screw
c
is
fixed fulcrum, screws a
and
b
must
be
loosed
--------------------------------------------------------------------------------------
Function
Clearance
Adjustment
Function/assembly
Clearance
between
Clearance
Adjustment
Function
Clearance
between
Clearance
Adjustment
Motion
adjustment
Printout uniform of complete characters
Screw
b
is
fixed fulcrum, screws a
and
c
must
be
loosed.
Final position of
printer
I Chassis
frame
Chassis
frame
outside I Adjust
screw
~
6,5
mm
Screw
on
= 6,5 mm.Position the
printer
to
the
left
end
so
that
the guide hole of
reset
plate
will
be
hidden
half.
Excite the
horizontal
motor
(see 4.05.1)
and
adjust the
screw
again
so
that
the guide hole will
be
hidden
half.
Line
space detent
Platen pulley I Variable spring
When
vertical
motor
is
excited (see 4 05.1), the
tips
of the
variable spring
must
engage
in
teeth of platen pulley.
Excite the
vertical
motor, slacken
off
the nut (spanner size
17
mm),
turn the bushing (spanner size
10
mm)
of variable
spring.
