Xerox OLYMPIA ELECTRONIC COMPACT - 5.12 Power pack; 5.13 Fuses

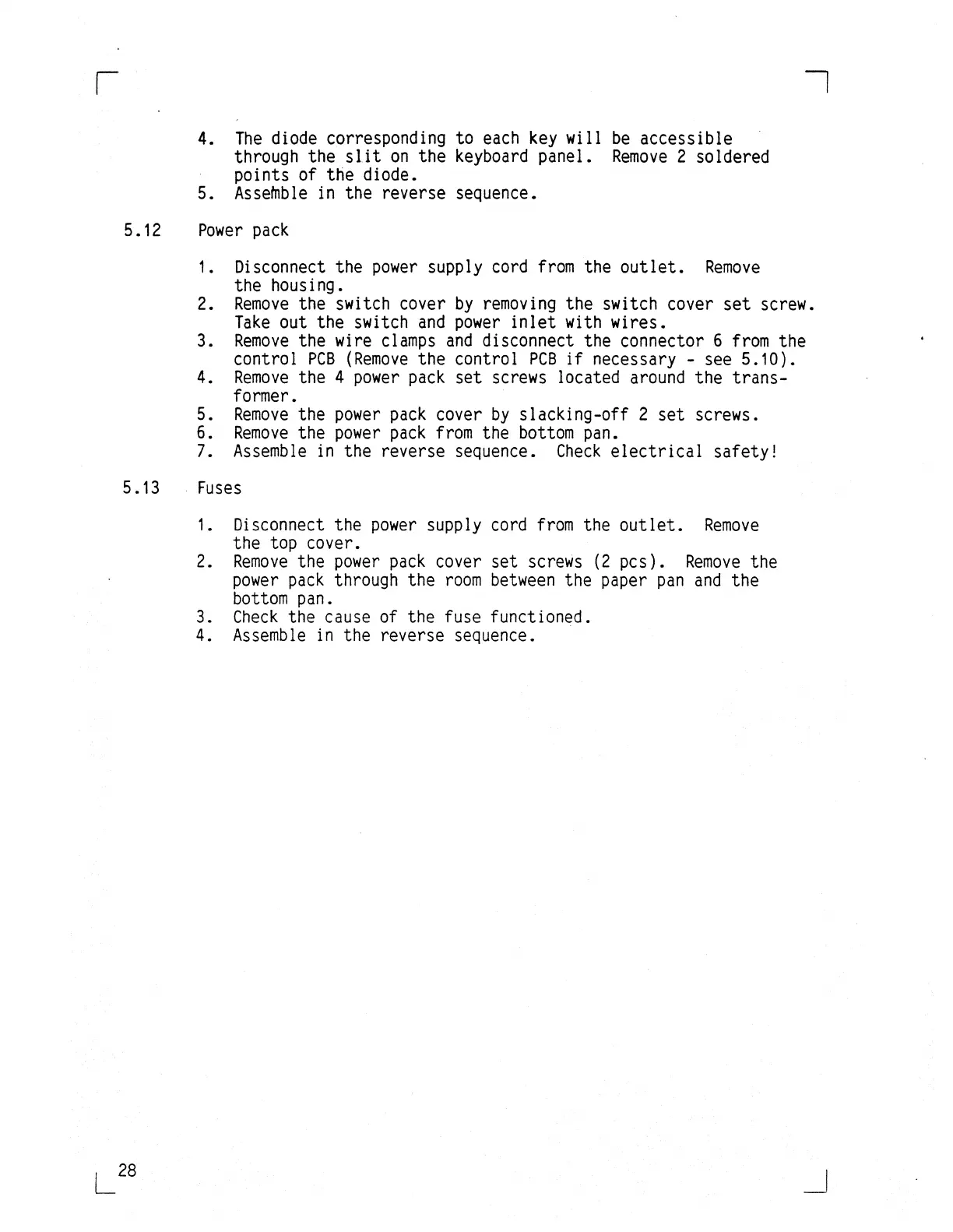

4. The diode corresponding to each key will be accessible
through the slit on the keyboard panel. Remove 2 soldered
points of the diode.
5. Assemble in the reverse sequence.
5.12 Power pack
1. Disconnect the power supply cord from the outlet. Remove
the housing.
2. Remove the switch cover by removing the switch cover set screw.
Take out the switch and power inlet with wires.
3. Remove the wire clamps and disconnect the connector 6 from the
control PCB (Remove the control PCB if necessary - see 5.10).
4. Remove the 4 power pack set screws located around the trans-
former.
5. Remove the power pack cover by slacking-off 2 set screws.
6. Remove the power pack from the bottom pan.
7. Assemble in the reverse sequence. Check electrical safety!
5.13 Fuses
1. Disconnect the power supply cord from the outlet. Remove
the top cover.
2. Remove the power pack cover set screws (2 pcs). Remove the
power pack through the room between the paper pan and the
bottom pan.
3. Check the cause of the fuse functioned.
4. Assemble in the reverse sequence.
