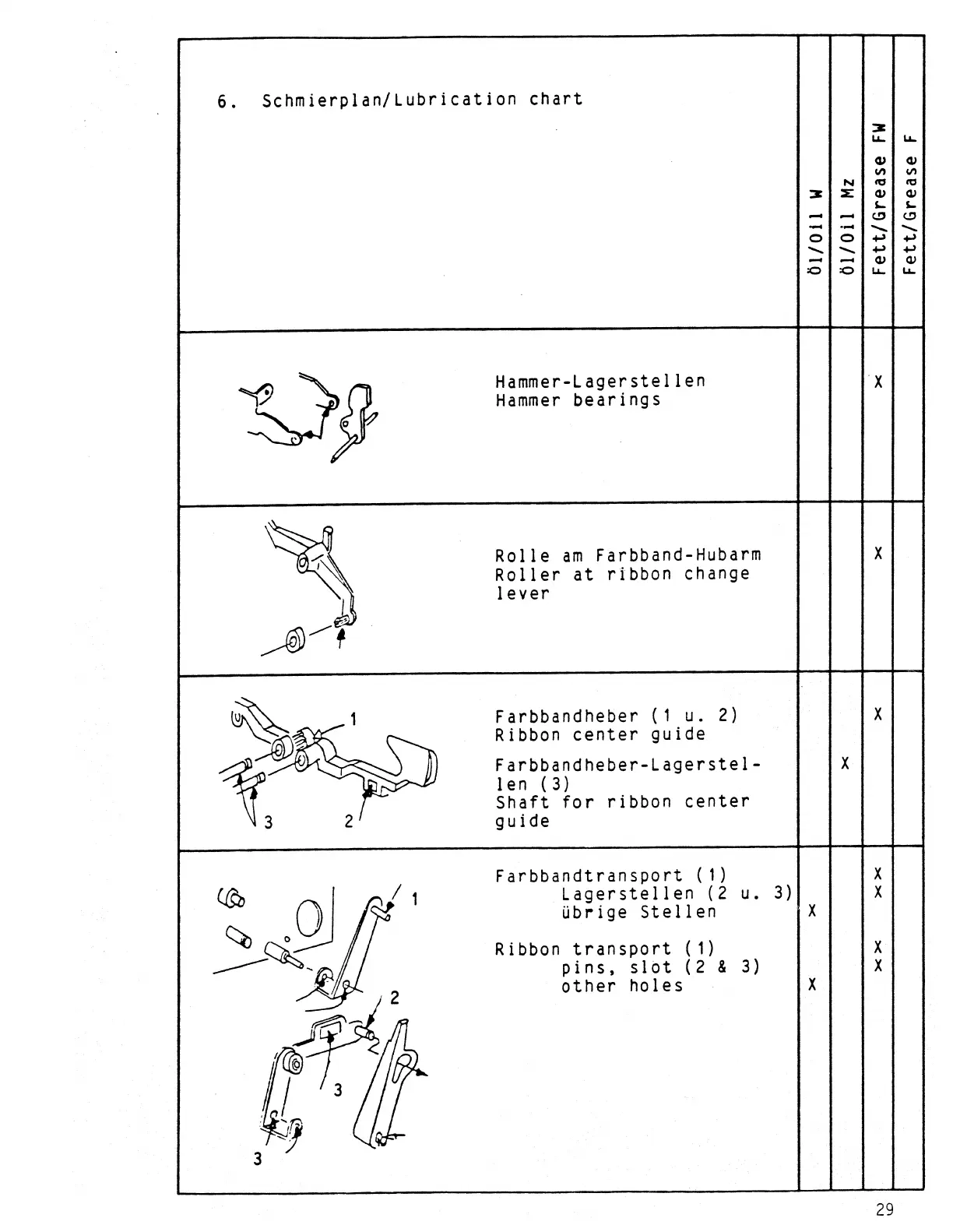

6.
Schmierplan/Lubrication
chart
Hammer-Lagerstellen
Hammer bearings
Rolle am Farbband-Hubarm
Roller at ribbon change
lever
:3
-
-
0
.._
-
:0
:3
LI..
cu
en
N
ca
%
cu
s-
-
~
·-
-.
0
+'
.._
+'
-
cu
:0
LI..
x
x
Farbbandheber (1 u. 2) X
Ribbon center guide
Farbbandheber-Lagerstel- X
len (3)
Shaft for ribbon center
guide
Farbbandtransport ( 1) X
Lagerstellen (2 u. 3) X
Ubrige Stellen X
Ribbon transport ( 1) X
pins, slot (2 & 3) x
other holes X
