shaft B 9 to left and remove the spacer B 7.
5. Remove the motor set nuts (3 pcs).
6. Remove the typewheel motor by pressing downward.
7. Assemble in the reverse sequence. Adjustment of positioning
typewheel motor and photo-interrupter will be required
(see 4.03.3).
5.06 Printer PCB, Flat Cable
1. Remove the printer assembly (see 5.02).
2. Remove the ribbon motor A 1 by slacking-off 2 screws and dis-
connect the connector socket 13 from the printer PCB.
3. Remove the cam shaft B 5 if it was not removed together with
the ribbon motor.
4. Disconnect the connector sockets from the printer PCB. Remove
the shoulder screw and tooth washer.
5. The printer PCB may be removed.
6. After slacking-off the flat cable holder, remove the flat
cable. Ensure to avoid bending and rubbing the flat cable.
7. Assemble in the reverse sequence. Check the positioning
of photo-interrupters.

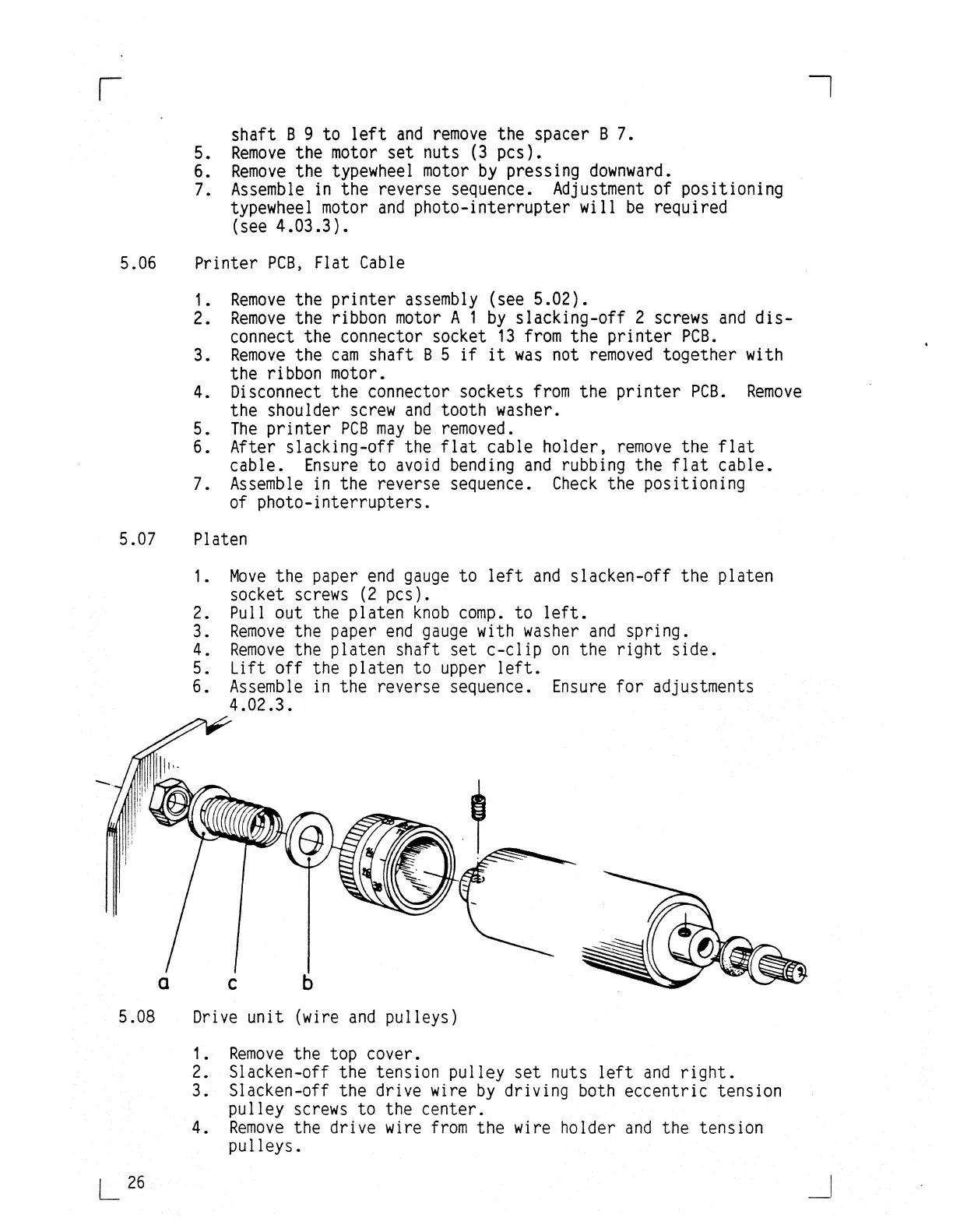

5.07 Platen
a
1. Move the paper end gauge to left and slacken-off the platen
socket screws (2 pcs).
2. Pull out the platen knob comp. to left.
3. Remove the paper end gauge with washer and spring.
4. Remove the platen shaft set c-clip on the right side.
5. Lift off the platen to upper left.
6. Assemble in the reverse sequence. Ensure for adjustments
4.02.3.
c b
5.08 Drive unit (wire and pulleys)
L 26
1. Remove the top cover.
2. Slacken-off the tension pulley set nuts left and right.
3. Slacken-off the drive wire by driving both eccentric tension
pulley screws to the center.
4. Remove the drive wire from the wire holder and the tension
pulleys.
