~5~~~·_..n
~
Ribbon
base
Bandtrllger-
platte
\._J
A\
Correct
ar•
Korrekturband-
trllger
~==

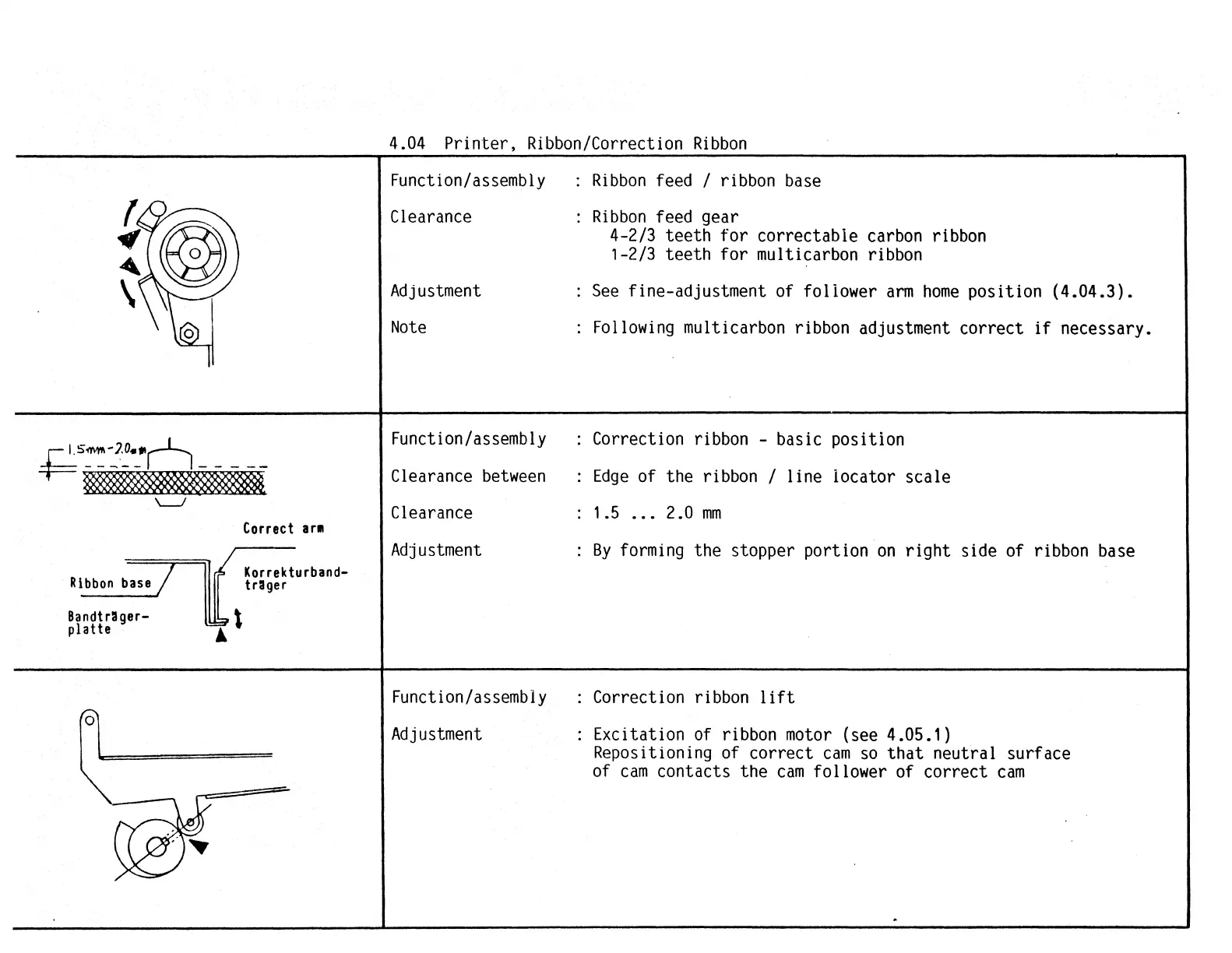

4.04
Printer,
Ribbon/Correction
Ribbon
Function/assembly
Clearance
Adjustment
Note
Function/assembly
Clearance
between
Clearance
Adjustment
Function/assembly
Adjustment
Ribbon
feed I ribbon base
Ribbon
feed gear
4-2/3
teeth
for correctabie carbon ribbon
1-2/3 teeth for multicarbon ribbon
See
fine-adjustment of foliower
arm
home
position (4.04.3).
Following multicarbon ribbon adjustment correct
if
necessary.
Correction ribbon - basic position
Edge
of the ribbon I line iocator scale
1.5
...
2.0
mm
By
forming the stopper portion
on
right
side of ribbon base
Correction ribbon
lift
Excitation
of
ribbon
motor
(see 4.05.1)
Repositioning of correct
cam
so
that
neutral surface
of
cam
contacts the
cam
follower of correct
cam
