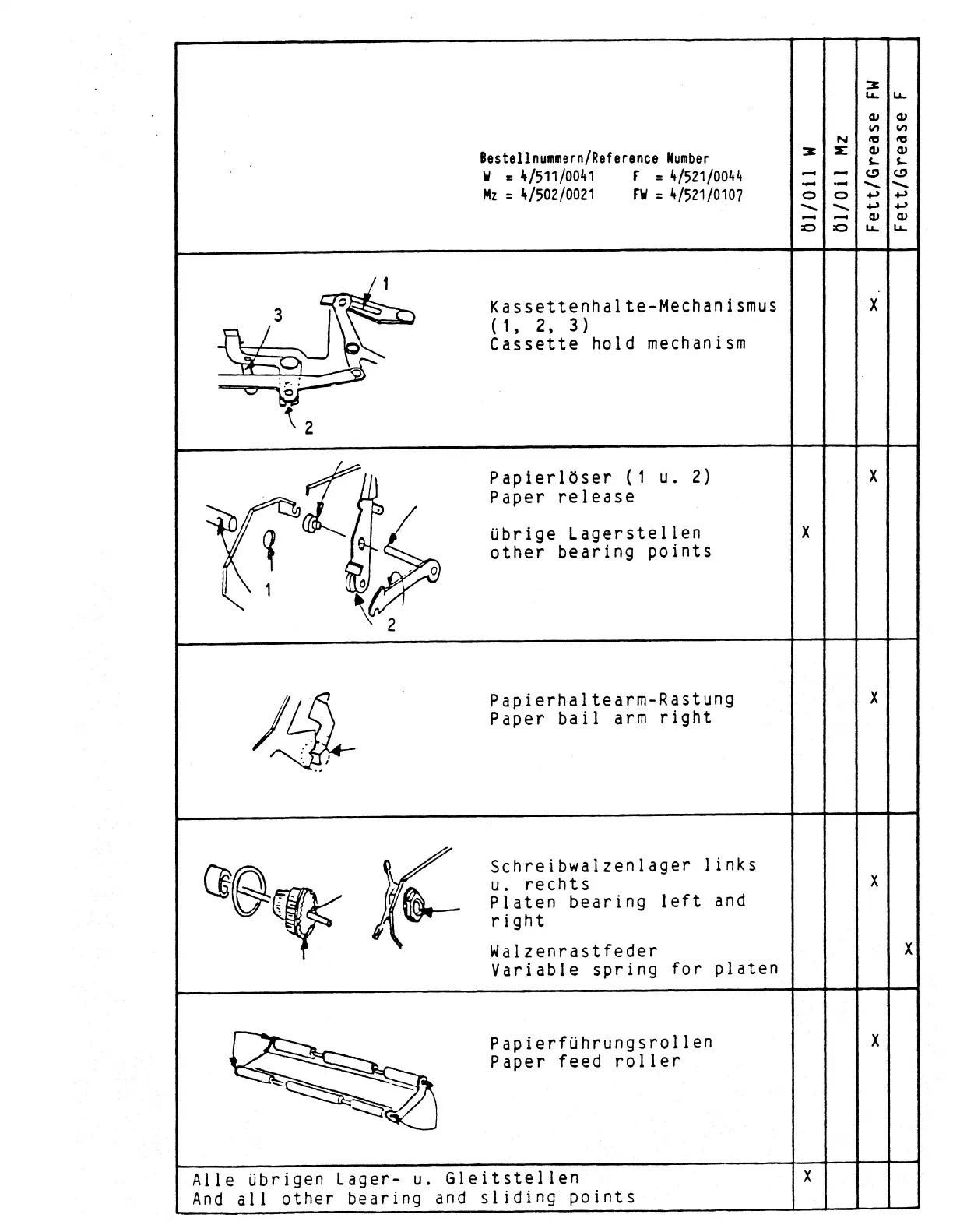

Bestellnummern/Ref erence Number
w
= 4/511/0041
r
= 4/521/0044
Mz = 4/502/0021 rw = 4/521/0107
Kassettenhalte-Mechanismus
(1, 2, 3)
Cassette hold mechanism
Papierloser (1 u. 2)
Paper release
Obrige Lagerstellen
other bearing points
Papierhaltearm-Rastung
Paper bail arm right
Schreibwalzenlager links
u. rechts
Platen bearing left and
right
Walzenrastfeder
Variable spring for platen
Papierfuhrungsrollen
Paper feed roller
Alle Obrigen Lager- u. Gleitstellen
And all other bearing and sliding points
