Xerox WorkCentre 6025

Parts List
Phaser 6020/6022 and WorkCentre 6025/6027 MFP
Service Manual
5-77

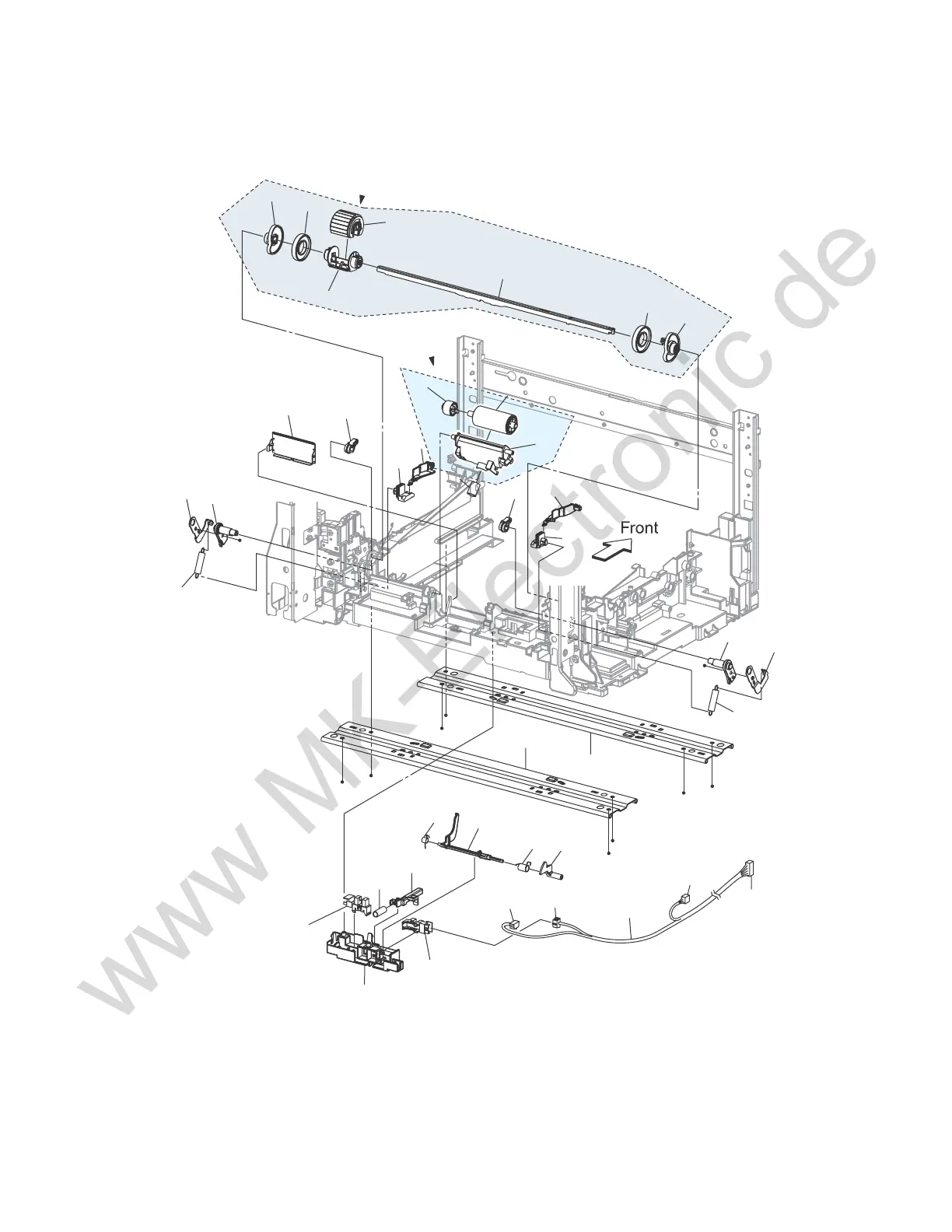

PL 2.2 Feeder (2/3)
s6020-612
(J12)
(J122)
(J121)
(J120)
2
3
4
5
6
3
7
1 (with 2-7)
10 (with 22-24)
13
15
33
14
27
12
25
9
26
8
22
24
23
11
31
20
30
32
21
21
19
34
16
18
15
17
29
No Paper
Sensor
Registration
Sensor
(PL2.3.4)
ST1
ST1
ST1
SM8
SM8
ST1
ST1
ST1
ST1
ST1
28
