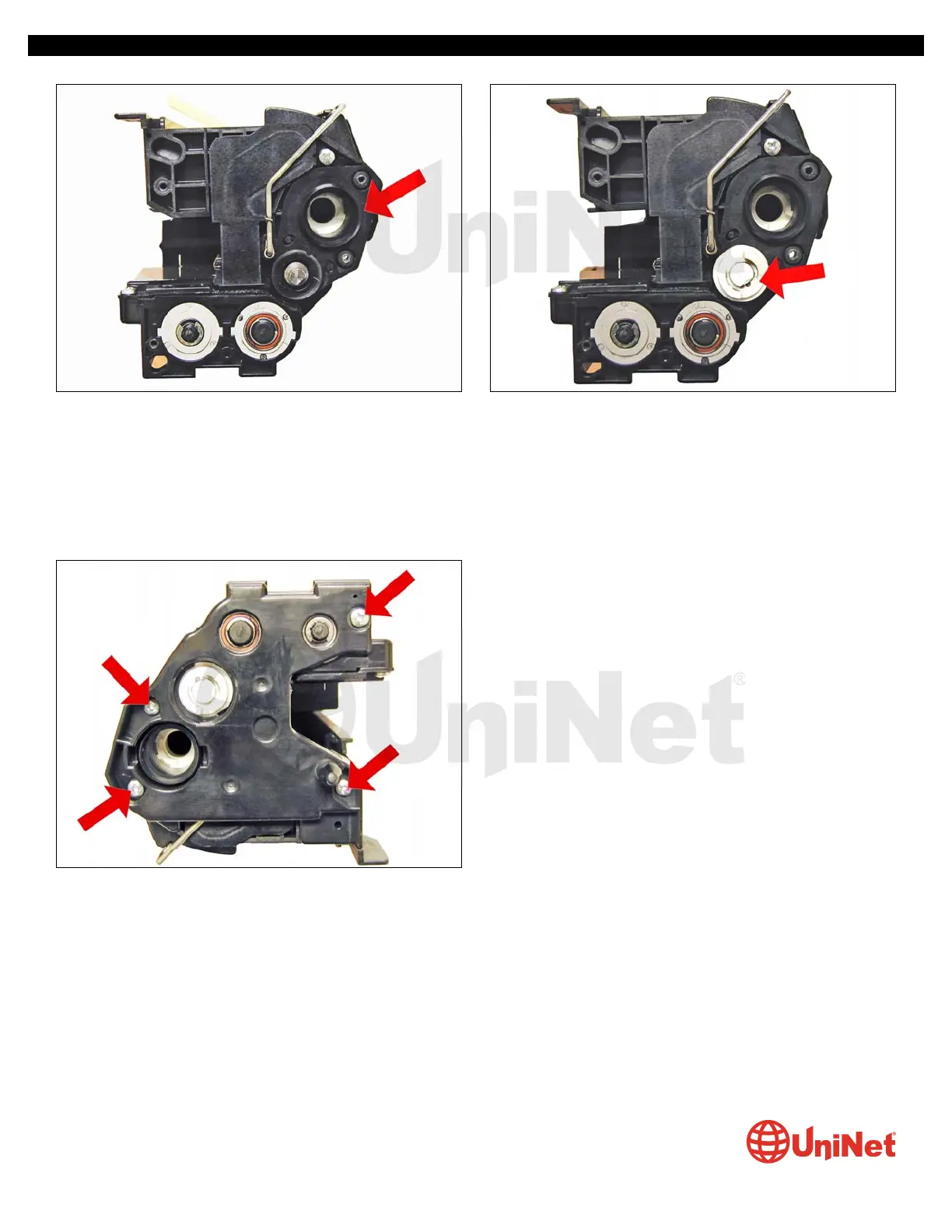

29. Install the double bushing to the non-gear side.
Also install the white gear onto the keyed shaft.
30. Install the end cap and four screws on the non-gear side.
Make sure the white gear fits properly.
XEROX WORKCENTRE M118 • 128 DRUM CARTRIDGE REMANUFACTURING INSTRUCTIONS
© 2010 UniNet Imaging Inc. All trademark names and artwork are property of their respective owners. Product brand names mentioned are intended to show compatibility only.
UniNet Imaging does not warrant downloaded information. Unauthorized sale, reproduction or distribution of this article is prohibited. For additional support, please contact techsupport@uninetimaging.com
