6 www.xilinx.com Getting Started with the VC707 Evaluation Kit
UG848 (v1.4.1) October 14, 2015
Chapter 1: Getting Started with the Virtex-7 FPGA VC707 Evaluation Kit
Host Computer Requirements
The example designs described in this document require an Intel processor based
computer running Windows 7 or Windows XP operating system. The computer must have
two USB ports and an Ethernet interface.
Note:
The Windows 7 operating system is used in the setup instructions and examples.
Preliminary Setup
Complete the tasks in this section before running the reference designs.
Install ISE Software
Install the latest version of the Xilinx ISE® Design Suite on the host computer.
Install the USB UART Drivers
Download and install the Silicon Laboratories CP210x VCP drivers on the host computer.
The drivers are available for download at no cost from Silicon Labs
.
Configure the Host Computer COM Port
The BIST design uses a terminal program to communicate between the host computer and
the VC707 board. To configure the host computer COM port for this purpose:
1. Connect the VC707 board to the host computer and power supply as shown in
Figure 1-1.
2. Turn Board power on (SW12).
X-Ref Target - Figure 1-1

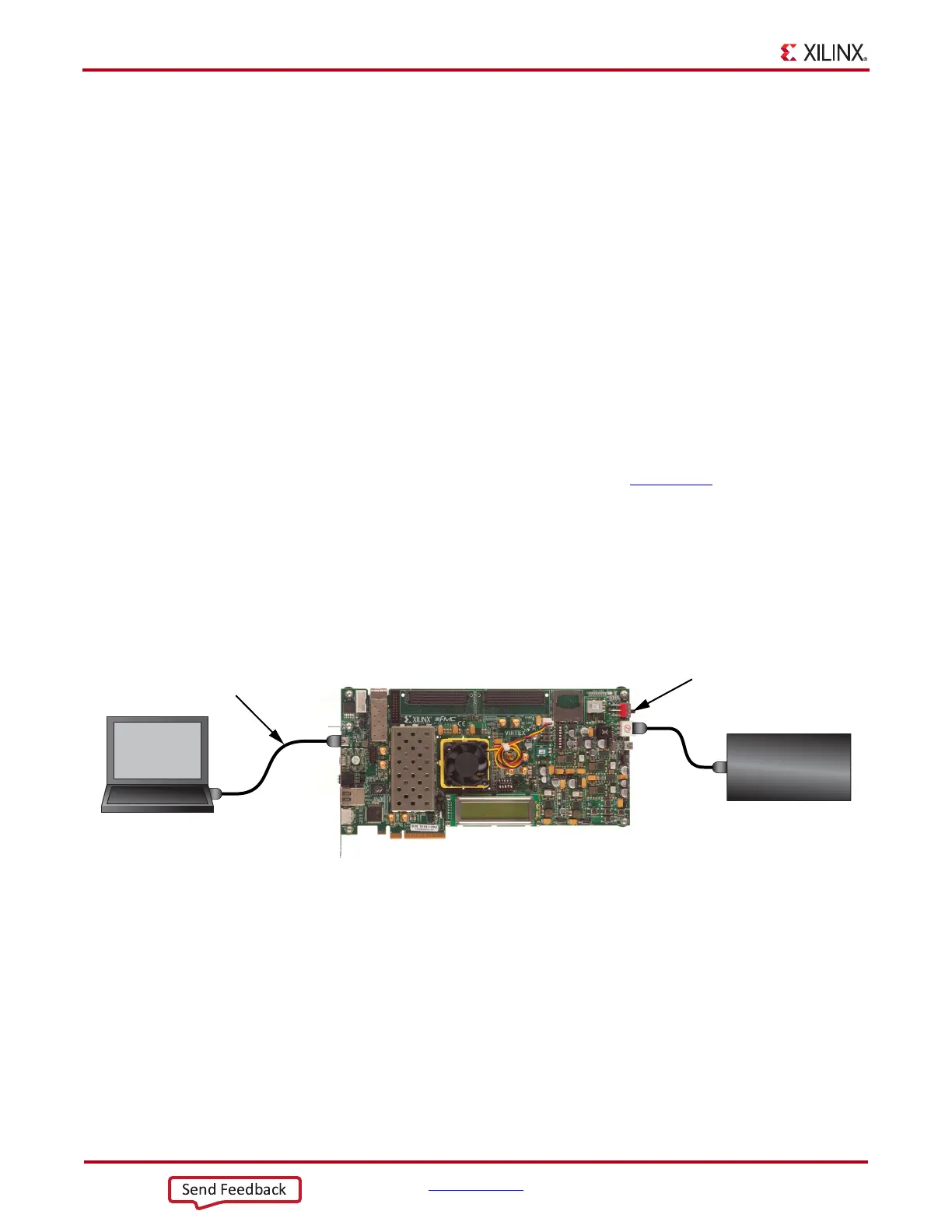

Figure 1-1: Host Computer COM Port Configuration
UG848_c1_01_040314
Power Supply
100VAC–240VAC Input
12 VDC 5.0A Output
To J18
Board Power
Switch SW12
USB cable
standard-A plug
to mini-B plug
To J17
(UART)
Host
Computer
Send Feedback
