Exercise different options by entering the use case number displayed in Table 3-2 against
Enter your choice: on the terminal.
Video source control modes are explained as follows:
• TPG interference
°
The input video is generated by the TPG IP implemented in the PL.
• External video (available with the optional ZVIK FMC module)
°
The input video is supplied by an external video source and is connected through
the FMC-IMAGEON card.
X-Ref Target - Figure 3-9

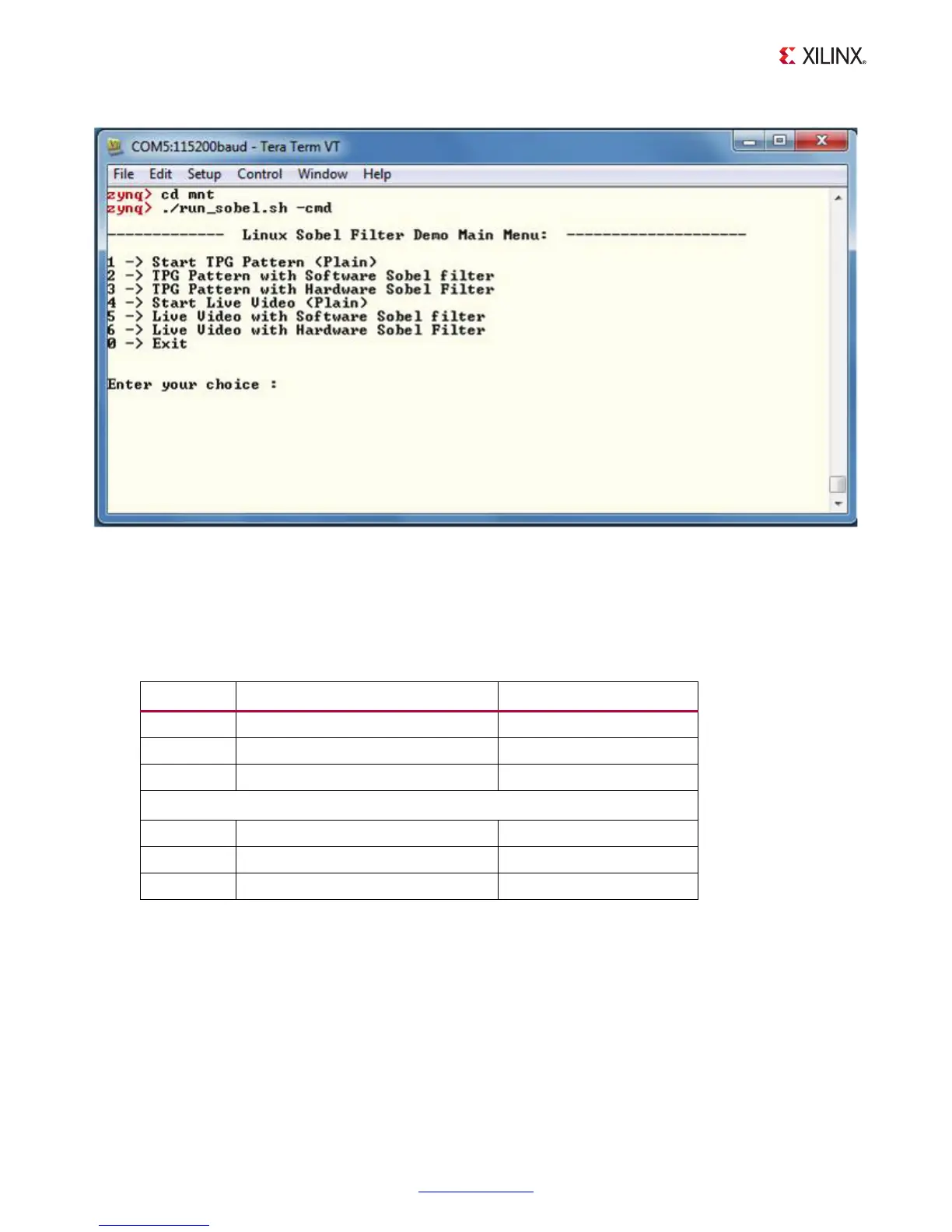

Figure 3-9: Command Line Based UI Menu
UG926_c3_09_111012
Table 3-2: Zynq-7000 AP SoC Base TRD Video Demonstration Use Cases
Use Case Video Source Control Sobel Filter Control
1 TPG interference Sobel OFF
2 TPG interference Sobel - SW
3 TPG interference Sobel - HW
Additional ZVIK Options
4 External video Sobel OFF
5 External video Sobel - SW
6 External video Sobel - HW
