Chapter 1
Introduction
Overview
The Zynq™-7000 All Programmable SoC (AP SoC) ZC702 evaluation kit shown in Figure 1-1
is based on the XC7Z020 CLG484-1 AP SoC. For additional information, see the Zynq-7000
AP SoC product table [Ref 1]. A built-in self-test (BIST) is provided for the ZC702 evaluation
kit. The BIST provides a convenient way to test many of the board's features on power-up.
The tutorials and reference designs available on the ZC702 product page can be used to
further explore the capabilities of the ZC702 board and the Zynq-7000 AP SoC [Ref 2]. For
the most up-to-date information on the content provided with the ZC702 evaluation kit, see
the Zynq-7000 SoC ZC702 Evaluation Kit Product Page www.xilinx.com/zc702
. UG873,
Zynq-7000 All Programmable SoC: Concepts, Tools, and Techniques shows the basic hardware
and software flow using the ZC702 board. The Zynq-7000 AP SoC documentation page is
also helpful [Ref 3].
The Zynq-7000 AP SoC Video and Imaging Kit (ZVIK) shown in Figure 1-2 is based on the
ZC702 evaluation kit and includes all of the components of the ZC702 kit with the
X-Ref Target - Fi gure 1-1

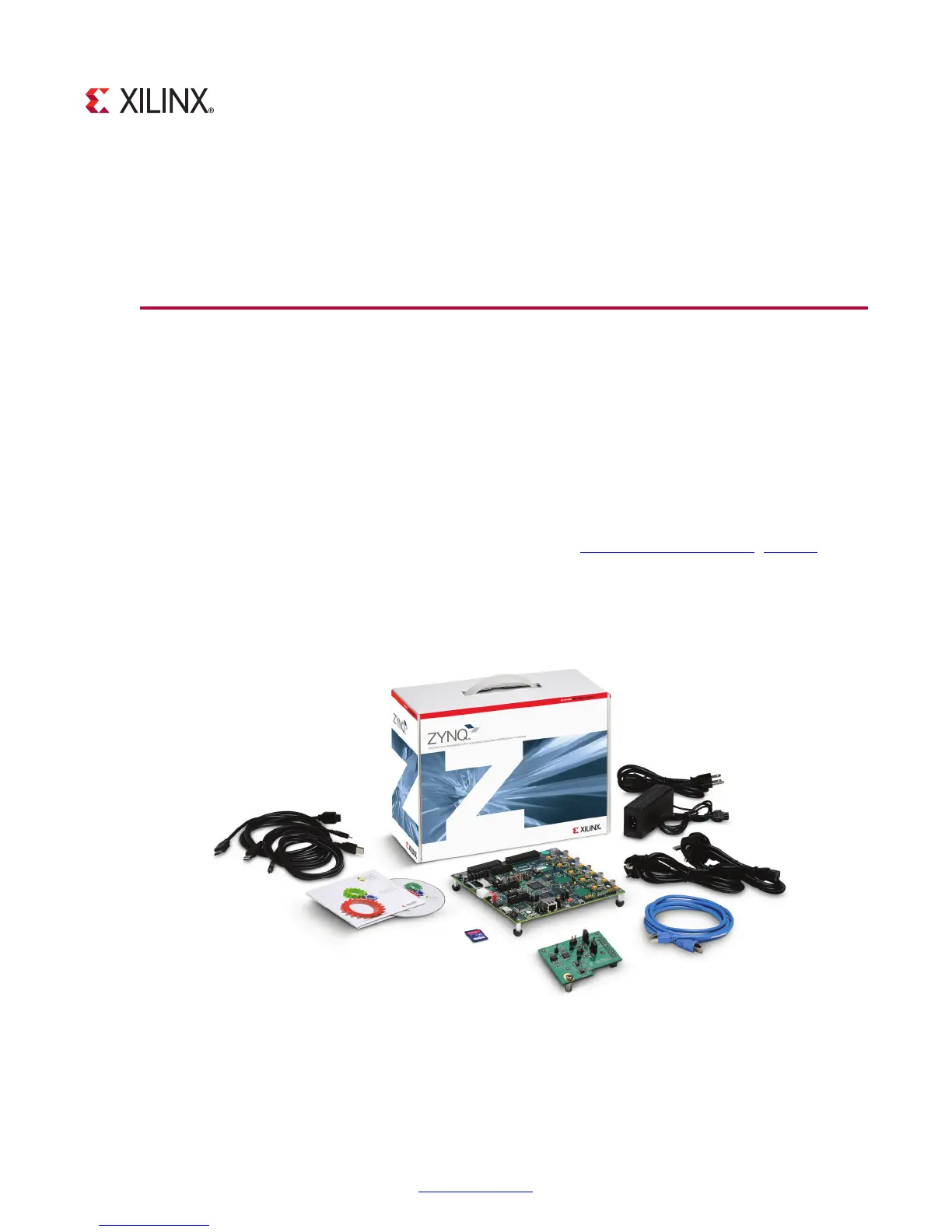

Figure 1-1: ZC702 Evaluation Kit
UG926_c1_01_060712
