Xilinx ZCU102 - Set VADJ

Set VADJ

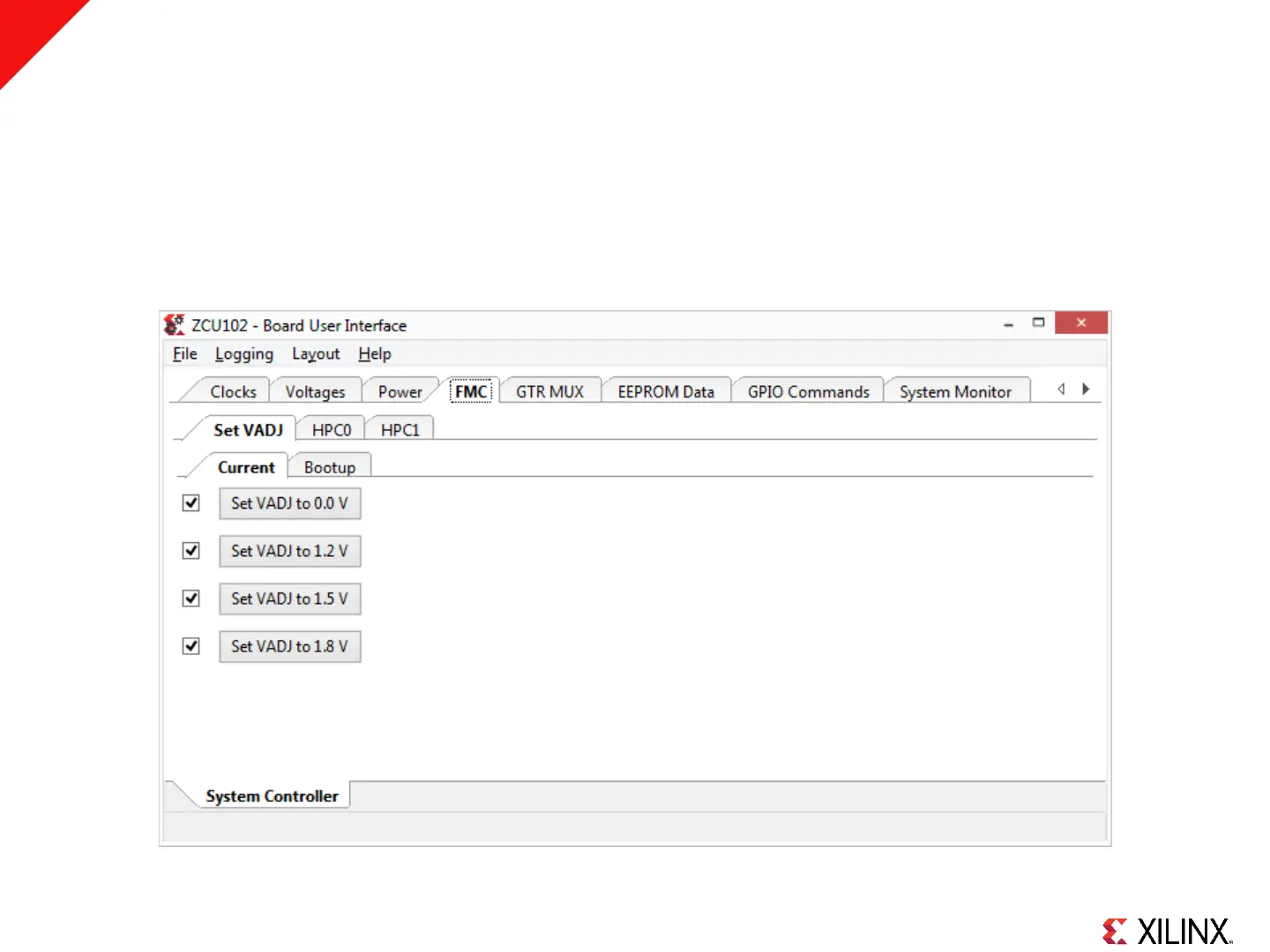

˃ Select the Set VADJ tab underneath the FMC tab
˃ Under the Current tab, select the desired VADJ voltage
˃ PL MIG requires a voltage (1.2 to 1.8V) to operate
˃ BIT (XTP428) will force VADJ to 1.8 V for any test that needs VADJ
Note: Presentation applies to the ZCU102
