Setting FMC HPC clocks

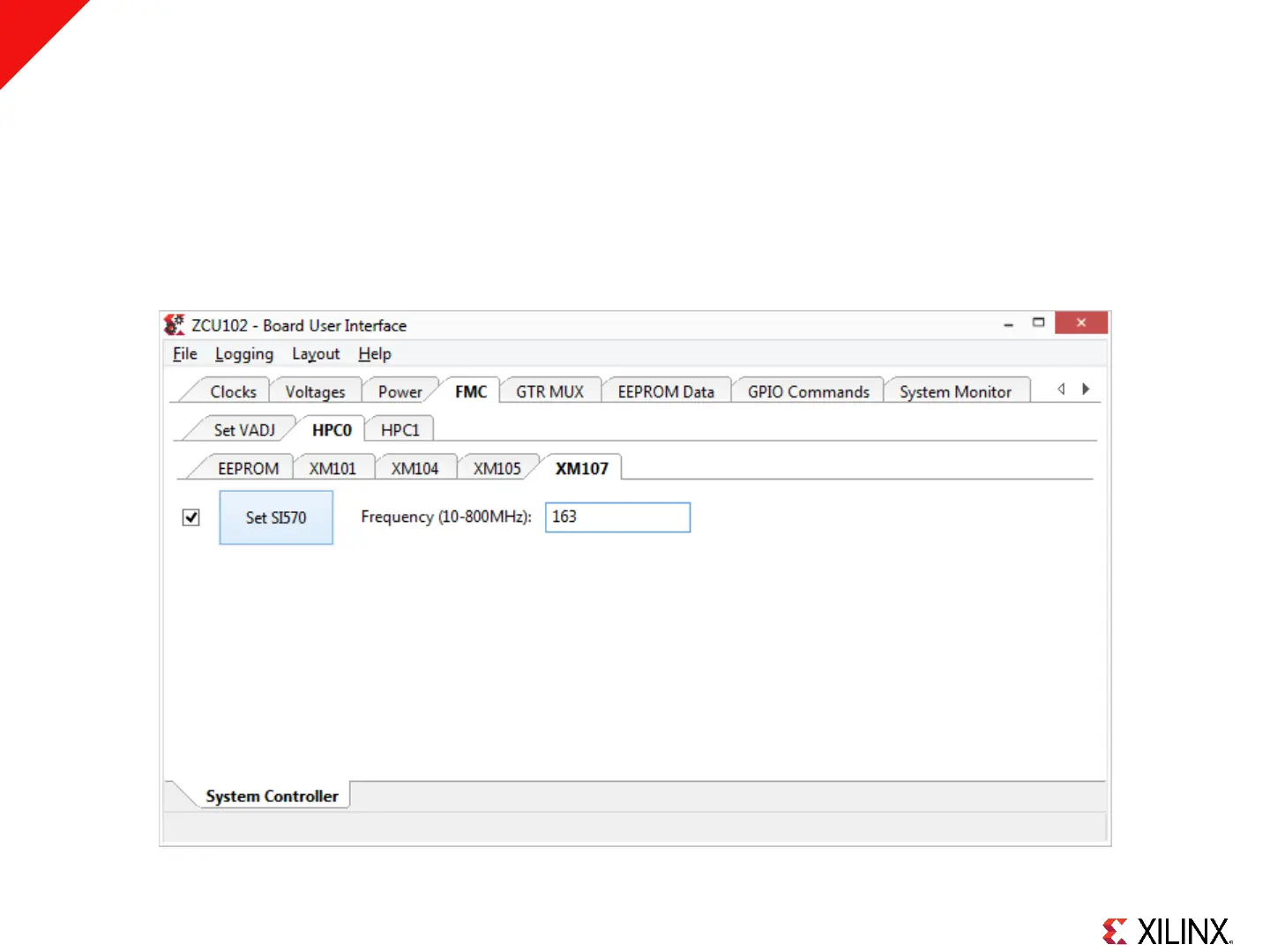

˃ With an optional XM107 FMC card attached, select the XM107 tab
˃ For the IBERT FMC testing, set 163, and click the Set SI570 button
Note: Presentation applies to the ZCU102
