3-3-2. Control signal circuit

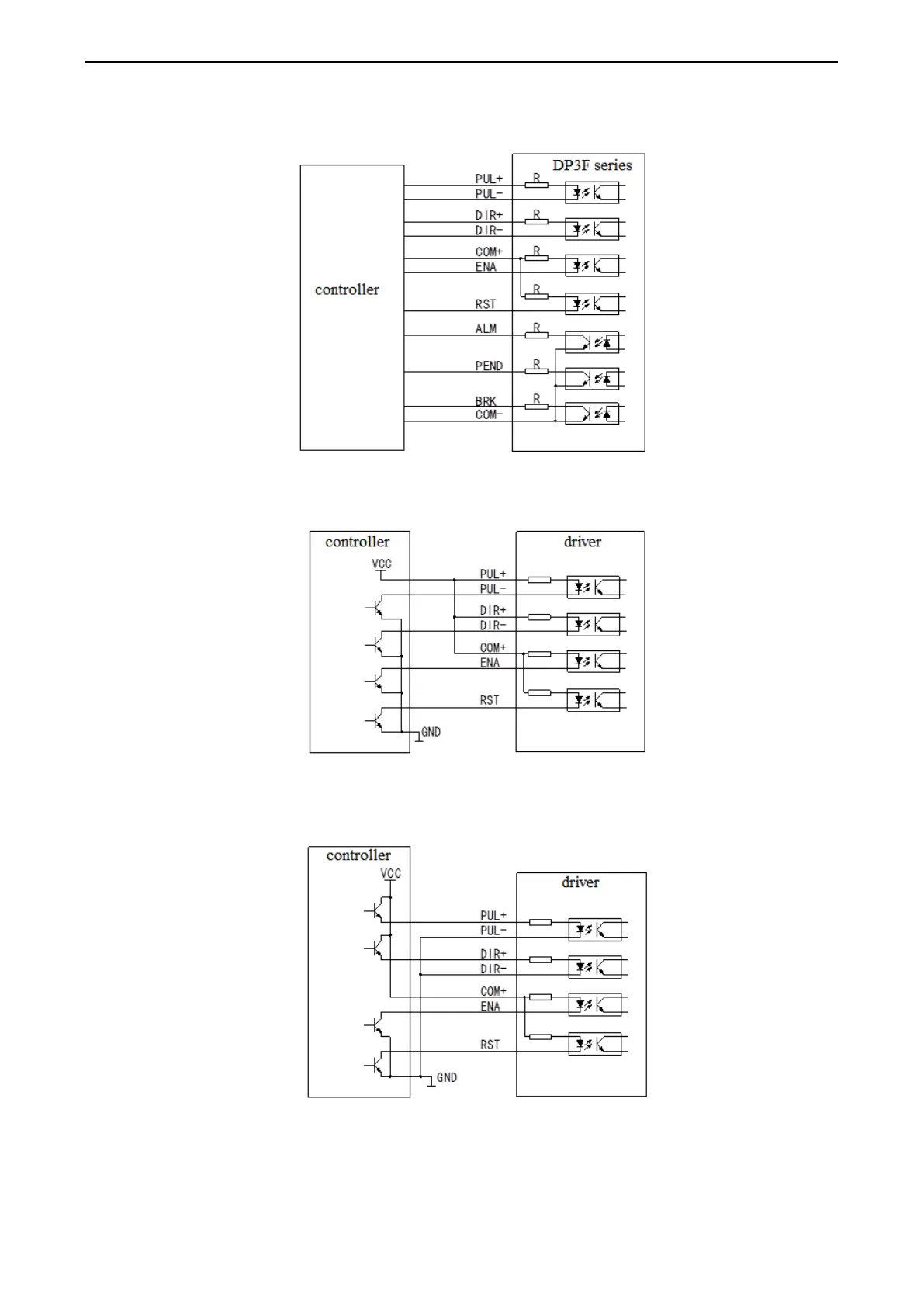

Control signal input and output circuit diagram, as shown in the figure below:

Differential mode input

Input single ended common anode connection method

Input single ended common cathode connection
