Xinje DP3F Series User Manual

13

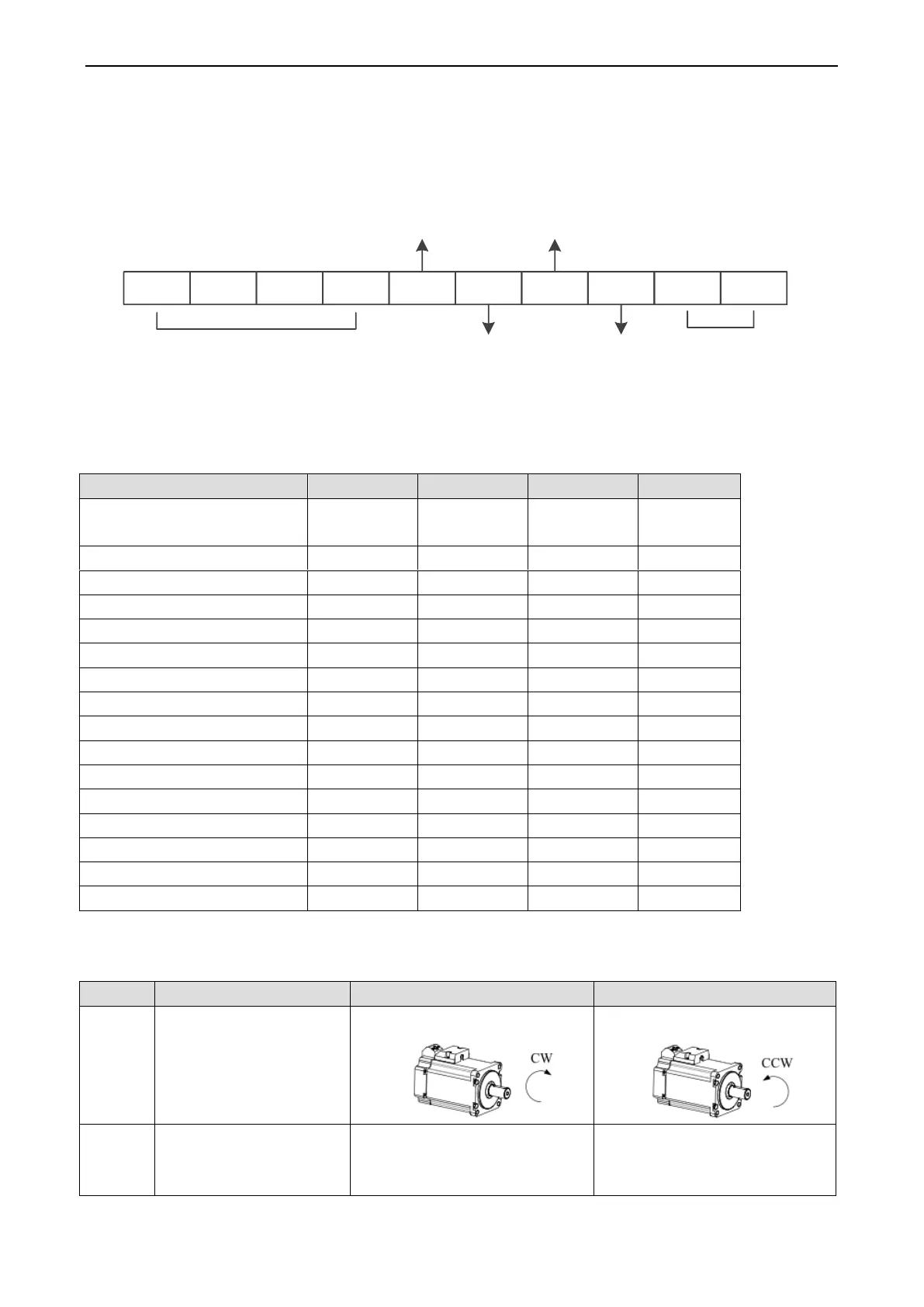

4. DIP switch
DP3F series drivers adopt 10 digit DIP switch to set subdivision precision and driver related function settings.
Detailed description is as follows:
SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8 SW9 SW10
Subdivision
Smooth filter
Closed/open loop
Auto-tuning
Motor initial operation
direction
Single/double pulse
4-1. DIP switch functions
SW1-SW4 is used for subdivision setting, as shown in the following table:
Step
SW1
SW2
SW3
SW4
Default, set by upper computer
(4000)
On
On
On
On
800
Off
On
On
On
1600
On
Off
On
On
3200
Off
Off
On
On
6400
On
On
Off
On
12800
Off
On
Off
On
25600
On
Off
Off
On
51200
Off
Off
Off
On
1000
On
On
On
Off
2000
Off
On
On
Off
4000
On
Off
On
Off
5000
Off
Off
On
Off
8000
On
On
Off
Off
10000
Off
On
Off
Off
20000
On
Off
Off
Off
40000
Off
Off
Off
Off
The specific functions of SW5-SW10 are as follows:
Switch
Function
ON
OFF
SW5
Initial direction selection
of motor
CW (face the shaft end)
CCW (face the shaft end)
SW6
Power on auto-tuning
The driver parameters are not
automatically set when the power
is on
When the power is on, the driver
parameters are automatically set
