7
2-1-2. Installation environment
The reliable working temperature of the driver is usually within 60℃ and that of the motor is within 80℃. To
ensure that the driver works within the reliable working temperature range, the driver should be installed in the
electric cabinet with good ventilation and proper protection. If necessary, a fan should be installed near the driver
for forced heat dissipation. Avoid being used in dust, oil mist, corrosive gas, high humidity and strong vibration.
2-2. Wiring

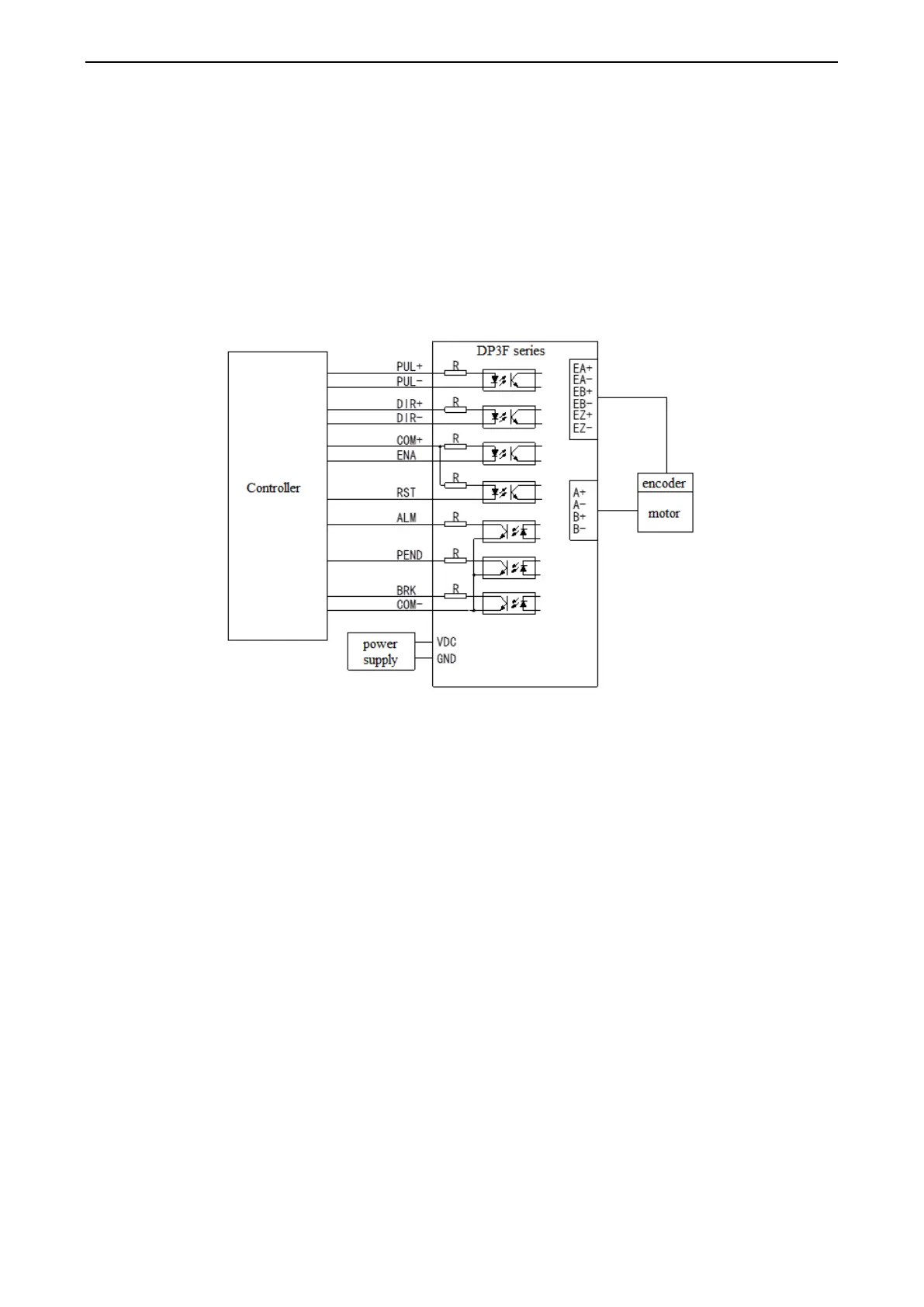

2-2-1. Typical wiring diagram
2-2-2. Wiring notice
(1) The pulse and direction signal cables and motor cables are not allowed to be bound side by side, and it is better
to separate them at least 10cm, otherwise it is easy to interfere with the pulse direction signal, resulting in
inaccurate motor positioning, system instability and other problems.
(2) If a power supply supplies multiple drives, parallel connection should be adopted at the power supply, and
chain connection from one to another is not allowed.
(3) It is strictly forbidden to connect the wire head to the terminal after adding tin, otherwise the terminal may be
damaged due to overheating due to increased contact resistance.
(4) The wiring head should not be exposed outside the terminal to prevent accidental short circuit from damaging
the driver.
