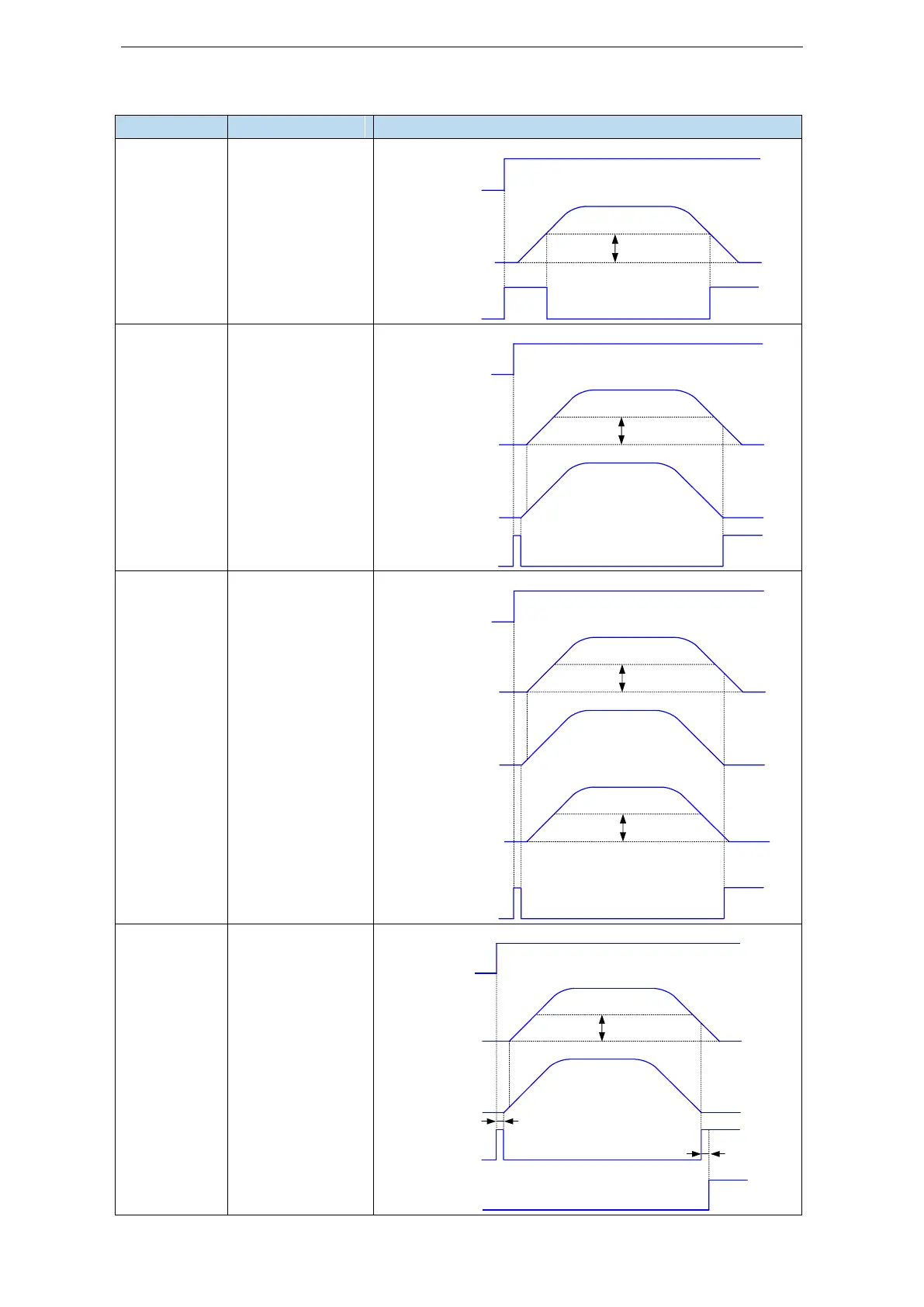

completion /COIN signal. The following is the precondition for positioning output and the output
diagram.
P5-01 setting
Content
Diagram
0
If the absolute
deviation is below
P5-00, the COIN
signal will be
output.
｜U0-08｜
Pulse offset
/COIN
signal
ONON
OFF
P5-00
ON
/S-ON
signal
1
After the
instruction is
finished, the
deviation is below
P5-00 and COIN
signal is output.
｜U0-08｜
Pulse offset
P5-00
ON
/S-ON
Signal status
/COIN
Signal status
ONON
OFF
｜ΔU0-12｜
Pulse command
2
When the
instruction ends
and the motor
speed is under the
rotation detection
speed (P5-03) and
the absolute
deviation is less
than P5-00, the
COIN signal is
output.
｜U0-08｜
Pulse offset
P5-00
ON
/S-ON
Signal status
/COIN
Signal status
ONON
OFF
｜ΔU0-12｜
Pulse command
｜U0-00｜
Actual speed
P5-03
3
At the end of
instruction, the
absolute deviation
value under P5-00,
it outputs COIN
signal. If COIN
maintains P5-02
time, COIN-HOLD
signal is output.
｜U0-08｜
Pulse offset
P5-00
ON
/S-ON
Signal status
/COIN
Signal status
ONON
OFF
｜ΔU0-12｜
Pulse command
/COIN-HOLD
Signal status
ON
OFF
P5-02
P5-02
