Xinje DS5L1 Series User Manual

MS6S–60 C S 30 B Z 1 - 2 0P4
Display
MS6S
MS6G
MS6H
Inertia
Low inertia
Medium inertia
High inertia
Symbol
S
M
Single turn 17-bit
Multi-turn 17-bit
U
L
Single turn 23-bit
Multi-turn 23-bit
Display
Rated speed (rpm)
15
20
1500
2000
25
30
2500
3000
Symbol Shaft
A
B
Key, no oil seal, with threaded hole
With key, oil seal and threaded hole
C
D
No key, no oil seal, with threaded hole
No key, with oil seal and threaded hole
Display
Power-loss brake
Z
Empty
With brake
No brake
Display
1
2
D
Standard 1
Standard 2
Customized
machine
Display
2
4
220V
380V
Display Rated output
0P1
0P2
100W
200W
0P4
0P7
400W
750W
Display Base no.
40
60
80
40 flange
60 flange
80 flange
Symbol
C
T
Magnetic Encoder
Photoelectric encoder
Product name
Connector
Encoder
Power supply
Note: At present, only the combination of CS, CM, TL and T is selected for the type of encoder.
Standard type 1: 80 flange and below amp plug.
Standard type 2: 80 flange and below small aviation plug.

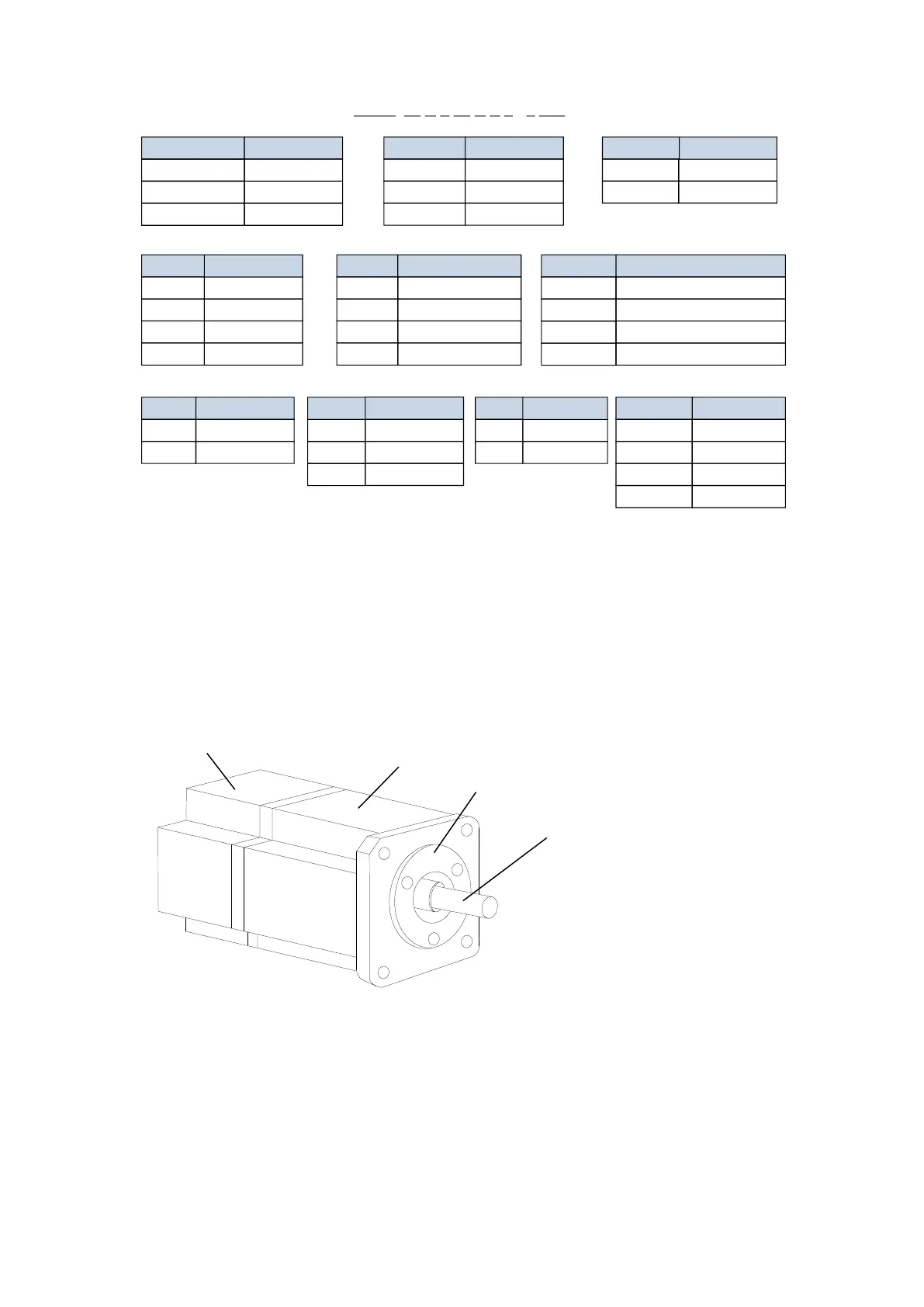

1.2.2 Description of each part
Encoder
frame
flange
Output Shaft (Drive Shaft)
