Xinje DS5L1 Series

2 Installation of servo system
2.1 Servo driver installation
2.1.1 Installation site
 Please install it in the installation cabinet without sunshine or rain.
 Do not use this product near corrosive and flammable gas environments such as hydrogen sulfide,
chlorine, ammonia, sulfur, chlorinated gas, acid, alkali, salt, etc.
 Do not install in high temperature, humidity, dust, metal dust environment;
 No vibration place.
2.1.2 Environment condition
Item
Description
Use ambient temperature
-10~40℃
Use ambient humidity
-20~90%RH (no condensation)
Storage temperature
-20~60℃
Storage humidity
-20~90%RH (no condensation)
2.1.3 Installation standard

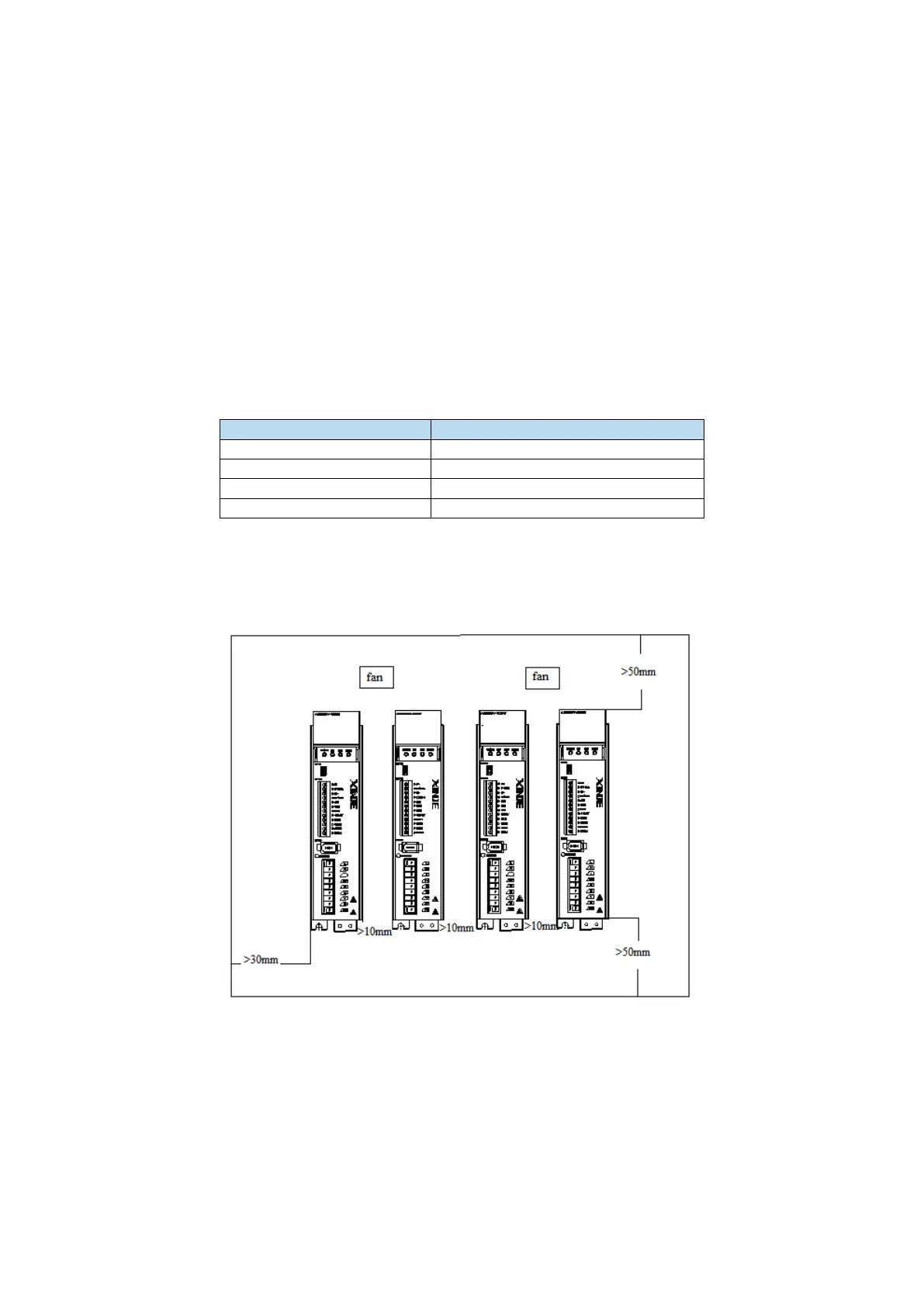

Be sure to comply with the installation standard in the control cabinet shown in the figure below. This
standard is applicable to the situation where multiple servo drivers are installed side by side in the
control cabinet (hereinafter referred to as "when installed side by side").
 Servo Drive Orientation
Install the servo drive perpendicular to the wall so the front panel containing connectors faces outward.
 Cooling
As shown in the figure above, allow sufficient space around each servo drive for cooling by cooling
fans or natural convection.
 Side-by-side Installation
When install servo drives side by side as shown in the figure above, make at least 10mm between and
