10
OP330, OP330-S
121.0
162.0
111.0
56.5
172.0
6 7 8 9
5432
1 0
ESC
ALM SET
ENT
1 2 3 4
8765
164.0
113.0
1-7-2．Installation

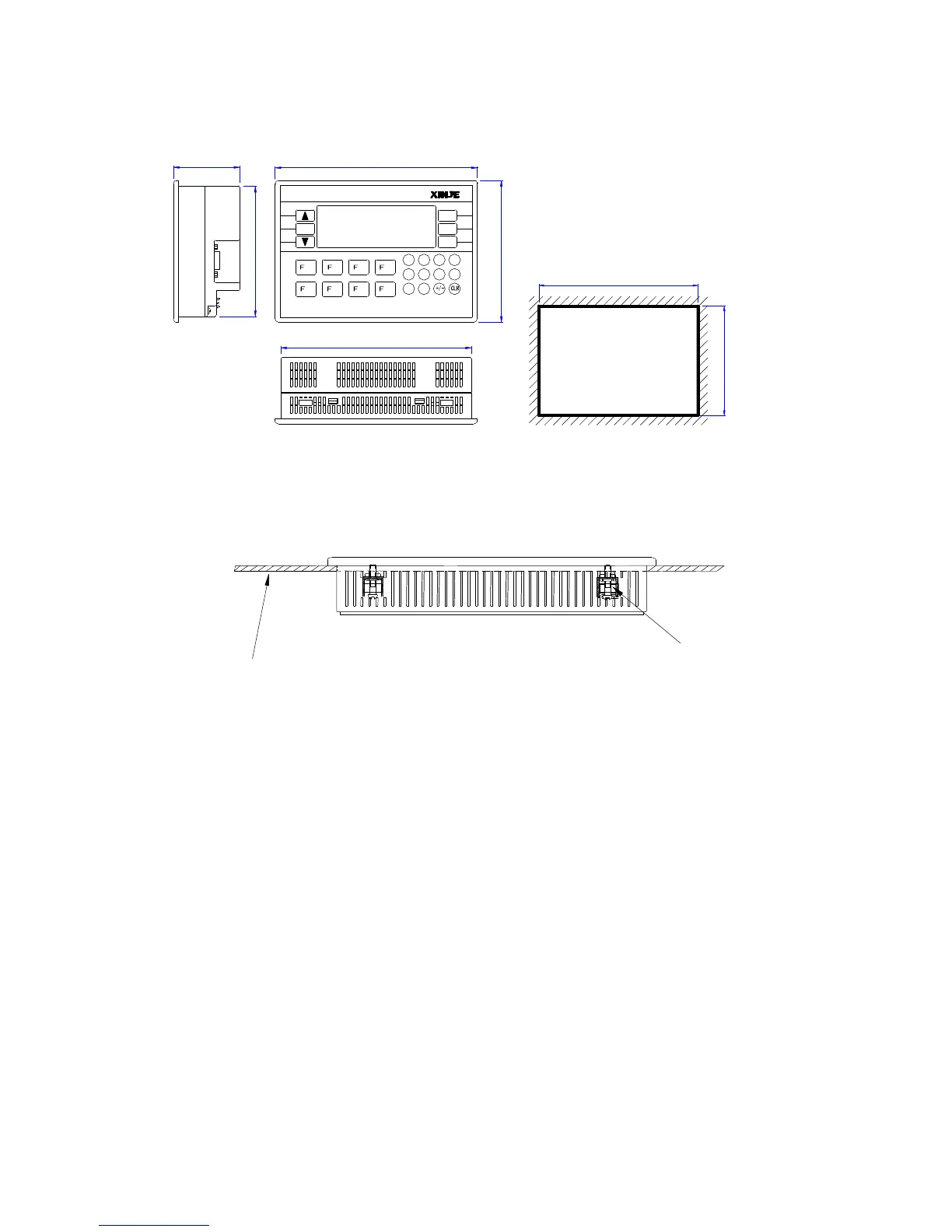

OP installation diagram:
Mounting steps:
(1) Make a mounting hole on the mounting panel
(2) Put the bottom of OP into the hole
(3) Mount the mounting stand into the fixing hole
(4) Tighten the 4 screws in the fixing hole
Note:
1. Make sure the mounting hole will not hurt the OP surface. Please leave some space
between hole and OP.
2. Don’t make the screw too tight to avoid cover damage.
3. Please add seal ring in the hole
Mounting stand
