12
5.
C
ontac
t us if the
y
still cannot commun
icate.
2-3
．
Pr
og
ra
m security
OP
prog
ra
m
ca
nnot
be uploaded fo
r sec
urity re
aso
n.

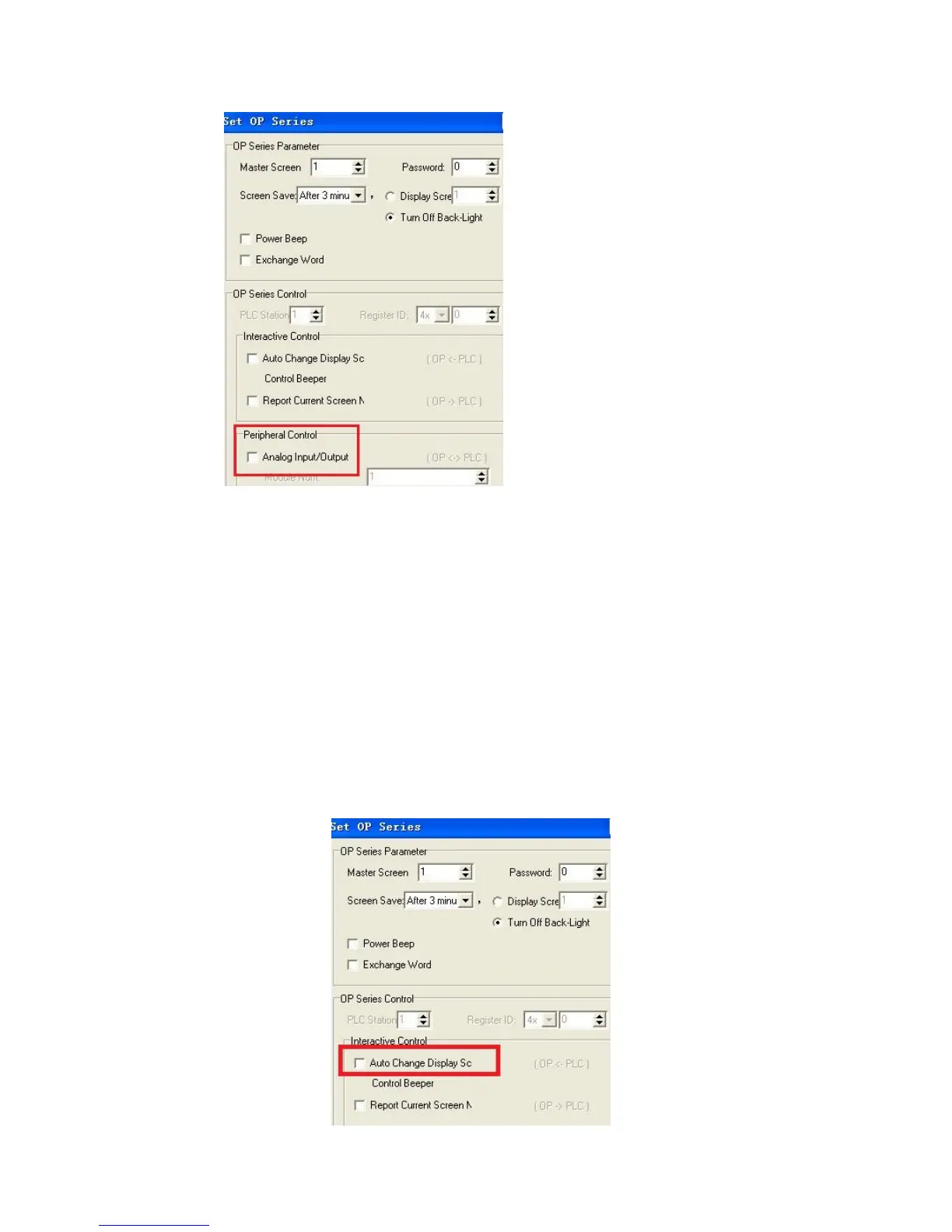

2-4
．
Inter
a
ctive control
Pl
ease choose “auto cha
ng
e display
Screen”
and
s
et register add
ress
in
To
ol/Set OP
seri
es…
Se
t th
e
r
egister to n, O
P
wi
ll
jump to screen No.n when power on. T
hen
t
he regi
st
er
va
l
ue will be
c
leared.
13
15
Table of Contents
Default Chapter
3
Table of Contents
3
1 Hardware
5
1-1．Introduction
5
1-2．General Specifications
5
1-3．Function Specifications
6
1-3-1．Op320/Op320-S
6
1-3-2．Op320-A/Op320-A-N/Op320-A-S
6
1-3-3．Op325-A/Op325-A-S
7
1-3-4．Op330/Op330-S
7
1-4．Part
8
1-5．Button Function
9
1-6．Port and Download Connection
10
1-6-1．Port
10
1-6-2．Download Connection
10
1-7．Dimension and Installation
11
1-7-1．Dimension
11
1-7-2．Installation
12
2 Q&A
13
2-1．Cannot Download Program
13
2-2．Communication Problem about Op and Plc
13
2-3．Program Security
14
2-4．Interactive Control
14
2-5．Set Data in Sequence
15
2-6．Others
15
3 Plc Connection
16
3-1．Xinje XC Series Plc
16
3-1-1．Connection Unit
16
3-1-2．Communication Parameter
16
3-1-3．Cable Connection
17
3-2．Mitsubishi Fx Series Plc
19
3-2-1．Connection Unit
19
3-2-2．Communication Parameters
19
3-2-3．Cable Connection
20
3-3．Siemens S7-200 Series Plc
21
3-3-1．Connection Unit
21
3-3-2．Communication Parameters
21
3-3-3．Cable Connection
22
3-4．Omron Cseries Plc
22
3-4-1．Connection Unit
22
3-4-2．Communication Parameters
23
3-4-3．Cable Connection
24
3-5．Koyo Sseries Plc
25
3-5-1．Connection Unit
25
3-5-2．Communication Parameters
26
3-5-3．Cable Connection
27
3-6．Delta Dvp Series Plc
28
3-6-1．Connection Unit
28
3-6-2．Communication Parameters
28
3-6-3．Cable Connection
29
3-7．LG Master-K (Programming Port) Series PLC
29
3-7-1．Connection Unit
30
3-7-2．Communication Parameters
30
3-7-3．Cable Connection
31
3-8．LG Master-K (Modbus) Series PLC (Multi-Function Port)
31
3-8-1．Connection Unit
31
3-8-2．Communication Parameters
31
3-8-3．Cable Connection
32
3-9．LG Master-K (Cnet) Series PLC (Multi-Function Port)
33
3-9-1．Connection Unit
33
3-9-2．Communication Parameters
33
3-9-3．Cable Connection
35
3-10．Matsushita Fp Series Plc
36
3-10-1．Connection Unit
36
3-10-2．Communication Parameters
36
3-10-3．Cable Connection
37
3-11．Schneider Neza Series Plc
39
3-11-1．Connection Unit
39
3-11-2．Communication Parameters
39
3-11-3．Cable Connection
41
3-12．Fatek Fb Series Plc
41
3-12-1．Connection Unit
41
3-12-2．Communication Parameters
42
3-12-3．Cable Connection
42
3-13．Vigor Vb Series Plc
44
3-13-1．Connection Unit
44
3-13-2．Communication Parameters
45
3-13-3．Cable Connection
45
3-14．Emerson Ec20 Series Plc
46
3-14-1．Connected Unit
46
3-14-2．Communication Parameters
47
3-14-3．Cable Connection
47
3-15．Idec Micro Smart Series Plc
48
3-16．Keyence Kv Series Plc
49
3-17．Saia-Burgess Pcd Series Plc
50
