Xinje XC1 Series User Manual

2 The Specifications and Parameters of CPU
For Special Use
※
6
FD8000~FD9023
Expand the internal
registers (ED)
※
7
36864 words
ED0~ED36863
High Speed Dispose
Ability
High speed counter, pulse output, external interruption
Password Protection
6 bits ASCII
Self-diagnose Function
Power on self-check、monitor the timer、grammar check
※1: The user's program space: refer to the maximum program space when download secretly.
※2: I/O points: refer to the terminal number that users can connect from outside
※3: X: refer to the internal input relays, users can use middle relay when exceed the Input points
※4: Y: refer to the internal output relays, users can use middle relay when the Output points exceed
※5:【】Sign: The default power off retentive area, this area can be changed
※6: For special use: refer to the special usage registers that are occupied by the system, can't be applied for other
usage. For details, please refer to Appendix 1;
※7: Only the hardware with 3.0 or above version of the CPU units has internal expansion register ED;
※8: XC3-14 hardware version 3.2: the ED is 0.
※9: Input and output coil no. is octal, other coil and register are decimal.
※10: The I/O which is not connected to other device can be used to internal coil.
※11: Flash ROM register doesn’t have to set power loss retentive, the data will not lose when power is off.

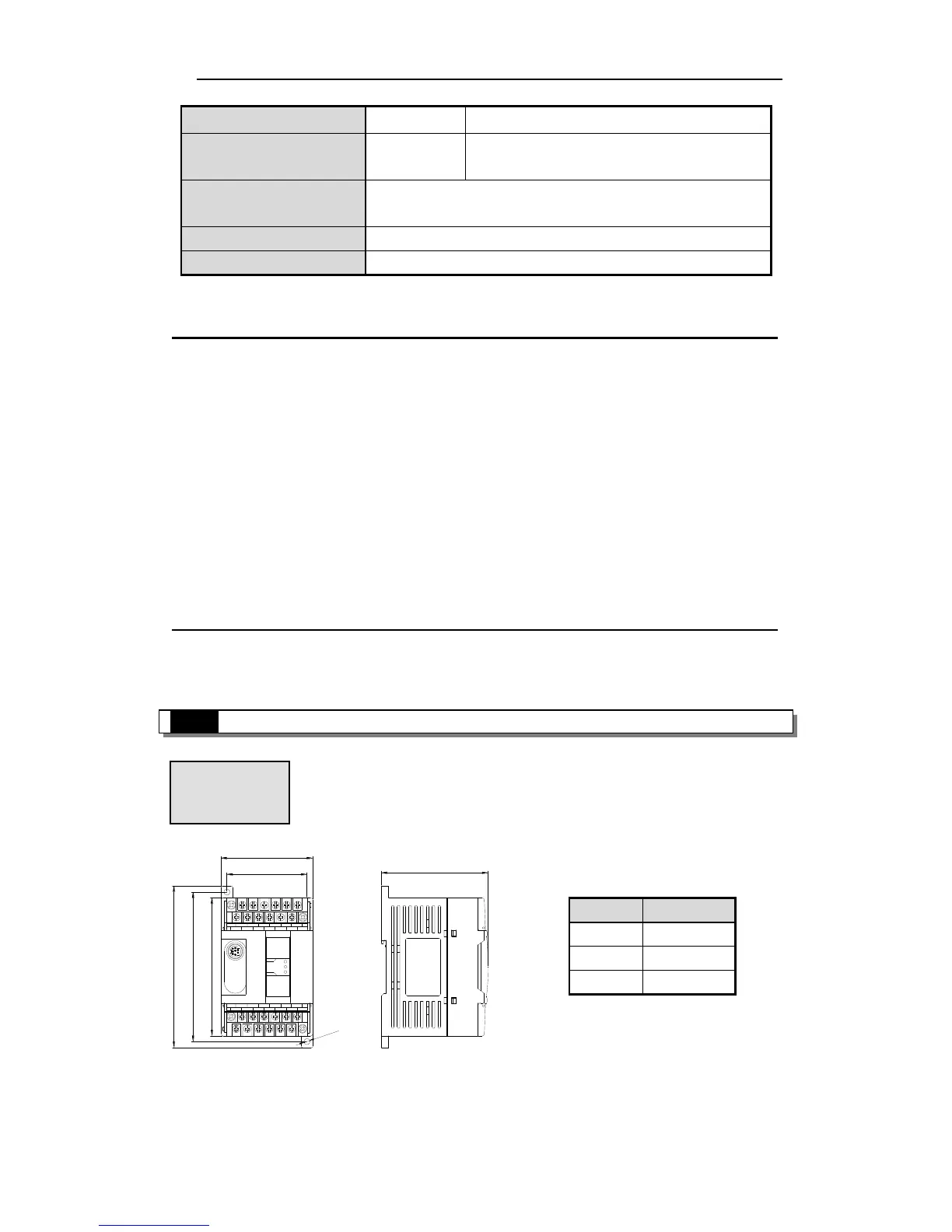

2-2．External Dimension
3.5
110
73.3
94
102
55
63
Xinje Electronic Co.,Ltd SN:0067032266 DATE:20060410 TYPE:XC3-14R-E
N X0 X2 X4 X6
X7X5X3X1FG
L
COM
A
0V
B COM0 Y1 Y2 Y4
Y5Y3COM1Y024V
PWR
RUN
ERR
XC3-14RT-E
Y
X
4 5 6 7
3210
764
3210
5
Graph 1
(Unit: mm)
Suitable Model
Series
I/O
XC1
10 and 16
XC2
14 and 16
XC3
14
