Xinje XC1 Series User Manual

Model
RT or T Type
High Speed Pulse Output Terminal
Common models are Y0、Y1；XC5-24/32 model is Y0~Y3
External Power Supply
Below DC5~30V
Action Indication
LED Lamp
Maximum Current
50mA
Max output frequency of pulse
200KHZ
Note: 1. XCM-24/32T4、XCM-24/32T3、XCM-60T、XCC-32: the high speed pulse output
terminals are Y0~Y3、Y0~Y2、Y0~Y11、Y0~Y4.
2. High speed pulse output terminal Y1 cannot use together with expansion BD.

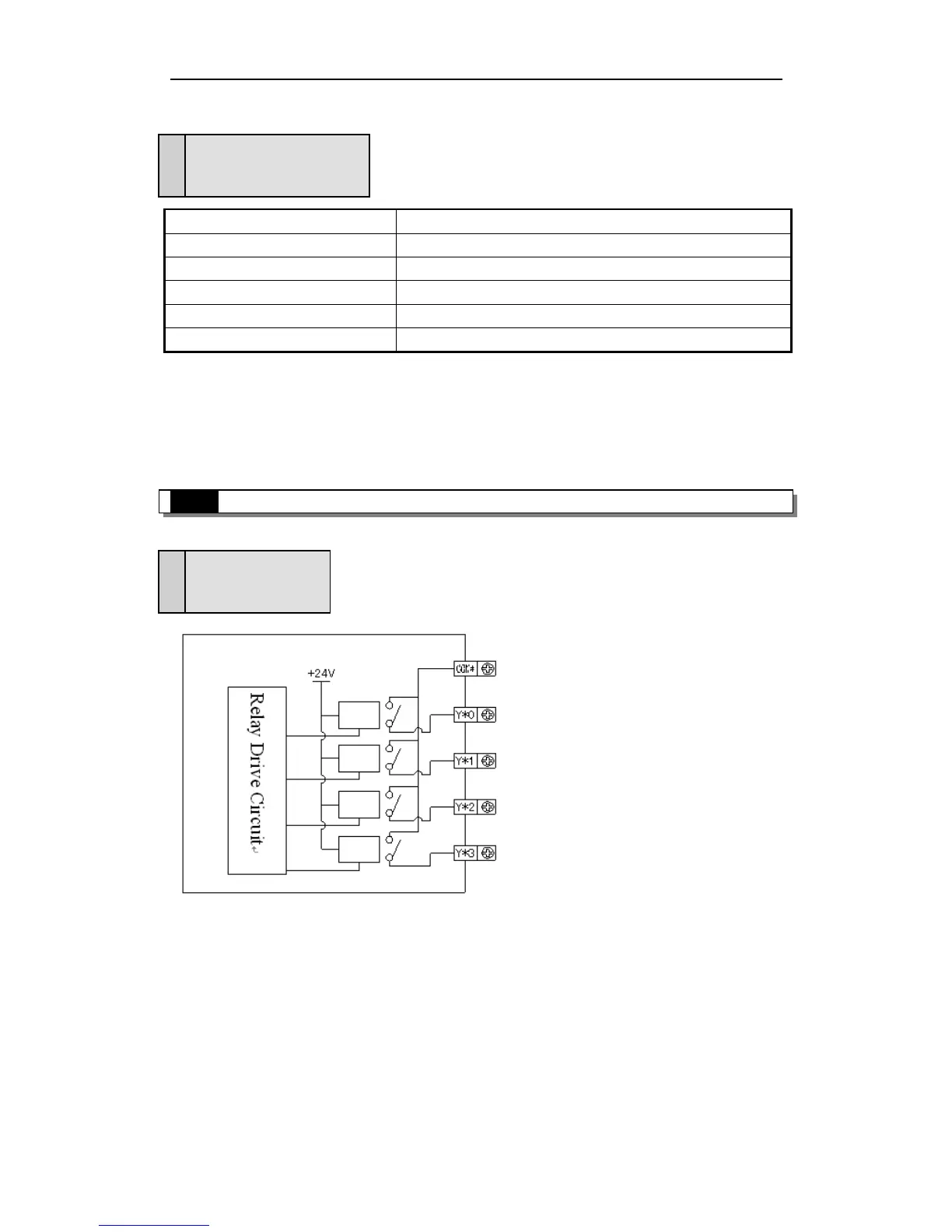

6-2．Relay Output Type
 Output terminals
Relay output type includes 2~4 public terminals. So each public-end unit can
drive different power-voltage system’s (E.g.：AC200V，AC100V，DC24V etc.)
load.
 Circuit’s insulation
Between the relay output coils and contacts，PLC’s interior circuits and exterior
circuits, load circuits are electric insulation. Besides, each public-end blocks are
separate.
Relay Output
Circuit
1
High Speed Pulse
Output
3
