Xinje XC1 Series User Manual
4
of 1
of 1 rating
138 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

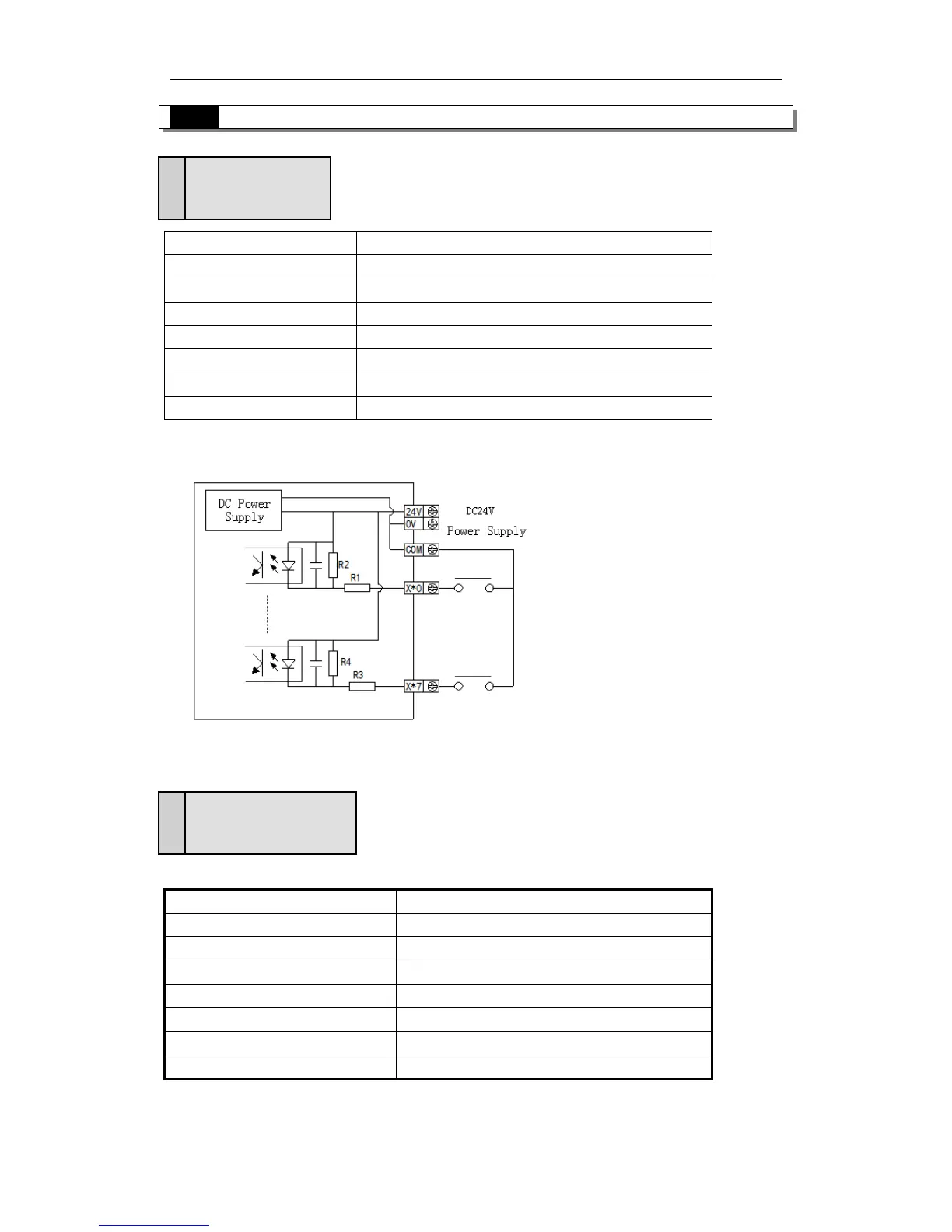

5
Input
Specifications
and
W
iring
Methods
5-1
．
Inp
ut Specification
Input si
gnal’
s voltage
DC24V
±
10%
Input si
gnal’
s current
7mA/DC24V
Input ON cur
rent
Up to 4.5m
A
Input OF
F current
Low
than 1.5mA
Input res
ponse time
About 10m
s
Input si
gnal’
s format
Contact input or
NPN open c
ollector t
ransistor
Circuit insul
ation
Photo-el
ectricity coupli
ng insulation
Input act
ion’
s display
LED light
when input ON
Input si
gnal’
s voltage
DC24V
±
10%
Input si
gnal’
s current
7mA/DC24V
Input ON cur
rent
Up to 4.5m
A
Input OF
F current
Low
than 1.5mA
Input res
ponse time
About 10m
s
Input si
gnal’
s format
Contact input or
NPN open c
ollector t
ransistor
Circuit insul
ation
Photo-el
ectricity coupli
ng insulation
Input act
ion’
s display
LED light
when input ON
Basic Units
1
Expansion
Modules
2
47
49
Table of Contents
Default Chapter
2
Table of Contents
2
1 Summary of XC Series Plc
5
Products Specifications
6
CPU Units
6
Expansions
9
Model Composing and Model List
10
Name Principle and Model List of CPU Units
10
Expansion's Name Principle and Module List
13
Each Part's Description
16
2 The Specifications and Parameters of Cpu
17
Specifications and Parameters
18
General Specifications
18
Performance and Specifications
19
External Dimension
27
Terminals Arrangement
29
Communication Ports
31
3 System Structure
32
System Structure
33
Peripheral Equipments
34
Program Software
34
Human Machine Interface (HMI)
35
Network Module
36
Configuration Principle
38
ID Assignment of Expansions
40
Install the Products
42
4 Power Supply Specification and Wiring Method
44
Power Supply Specifications
45
AC Power DC Input Type
46
5 Input Specifications and Wiring Methods
47
Input Specification
48
DC Input Signal (AC Power Supply Type)
49
High Speed Counter Input
52
Count Mode
52
High Speed Count Range
54
The Input Wiring of HSC
54
Input Terminals Assignment
55
AB Phase Counter's Frequency Multiplication Setting
61
6 Output Specification and Wiring Methods
62
Output Specification
63
Relay Output Type
65
Transistor Output Type
68
7 Run, Debug, Maintenance
70
Run and Debug
71
Daily Maintenance
72
8 Expansion Devices
73
Modules Summary
74
Digital Input/Output Modules
76
Analogue, Temperature Modules
79
XC-E8Ad
80
XC-E4Ad2Da
81
XC-E4Ad
82
XC-E4Da
84
XC-E2Da
85
XC-E6Pt-P
86
XC-E6Tca-P
87
XC-E2Ad2Pt2Da
90
Expansion BD Cards
92
XC-2Ad2Pt-Bd
94
XC-Com-Bd
95
9 Change the Soft Components
96
Function Summary
97
Operation Method
98
Operated by HMI
99
Appendix Special Soft Device List
102
Appendix 1-1．Special Auxiliary Relay List
103
Appendix 1-2．List of Special Memory and Special Data Register
110
Appendix 1-3．ID List of the Expansions
117
Appendix 1-4．Special Flash Register List
121
Appendix 2 Instructions List
126
Appendix 2-1．Basic Instructions List
127
Appendix 2-2．Applied Instruction List
128
Appendix 2-3．Special Instructions List
130
Appendix 2-4．Motion CONTROL INSTRUCTIONS LIST
131
Appendix 3 Version for Special Function
133
Appendix 4 Plc Configuration List
134
Appendix 5 Common Question A&Q
136
