Xinje XC1 Series User Manual

6-3．Transistor Output Type
Transistor output models support high speed pulse output and normal transistor these two types;
 Output Terminals
There are 1~4 COM outputs on transistor output type CPU units
 External Power Supply
Please use DC5~30V power supply to drive the load drive.
 Circuit Isolation
Inside PLC, we use optical couples to isolate the internal circuit with the output
transistors; besides, public blocks isolate to each other.
 Action Indication
When driving optical couples, LED will be ON, the output transistors will be ON;
 Response Time
From optical couple being ON (or OFF) to transistor being ON (or OFF), PLC
needs time below 0.2ms.
 Output current
Each output’s current is 0.3A. But limited by the temperature rising, every 4
points’ total current should be below 0.8A.
 Open circuit current
Below 0.1mA

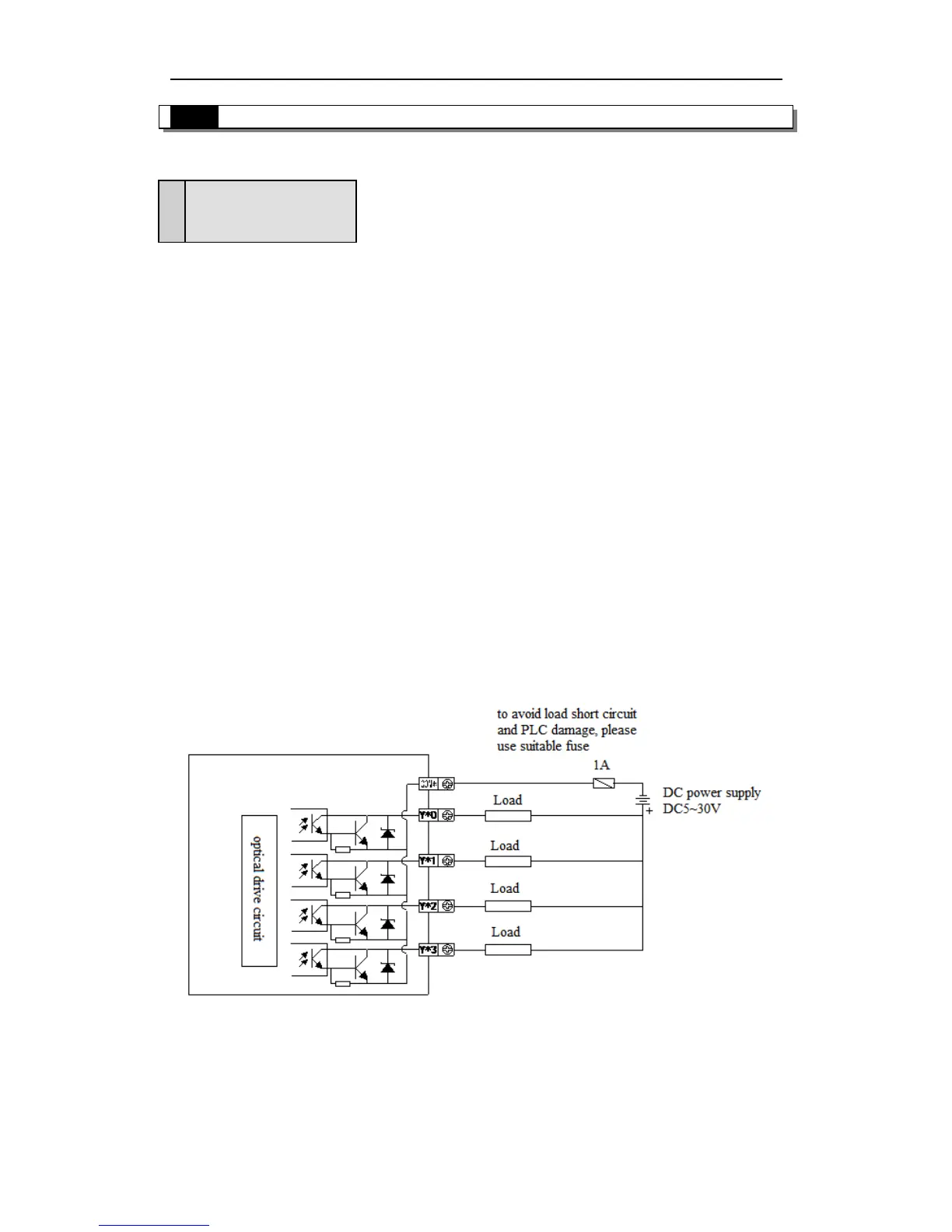

Normal Transistor
Output
1
