Xinje XC1 Series User Manual

8 expansion devices

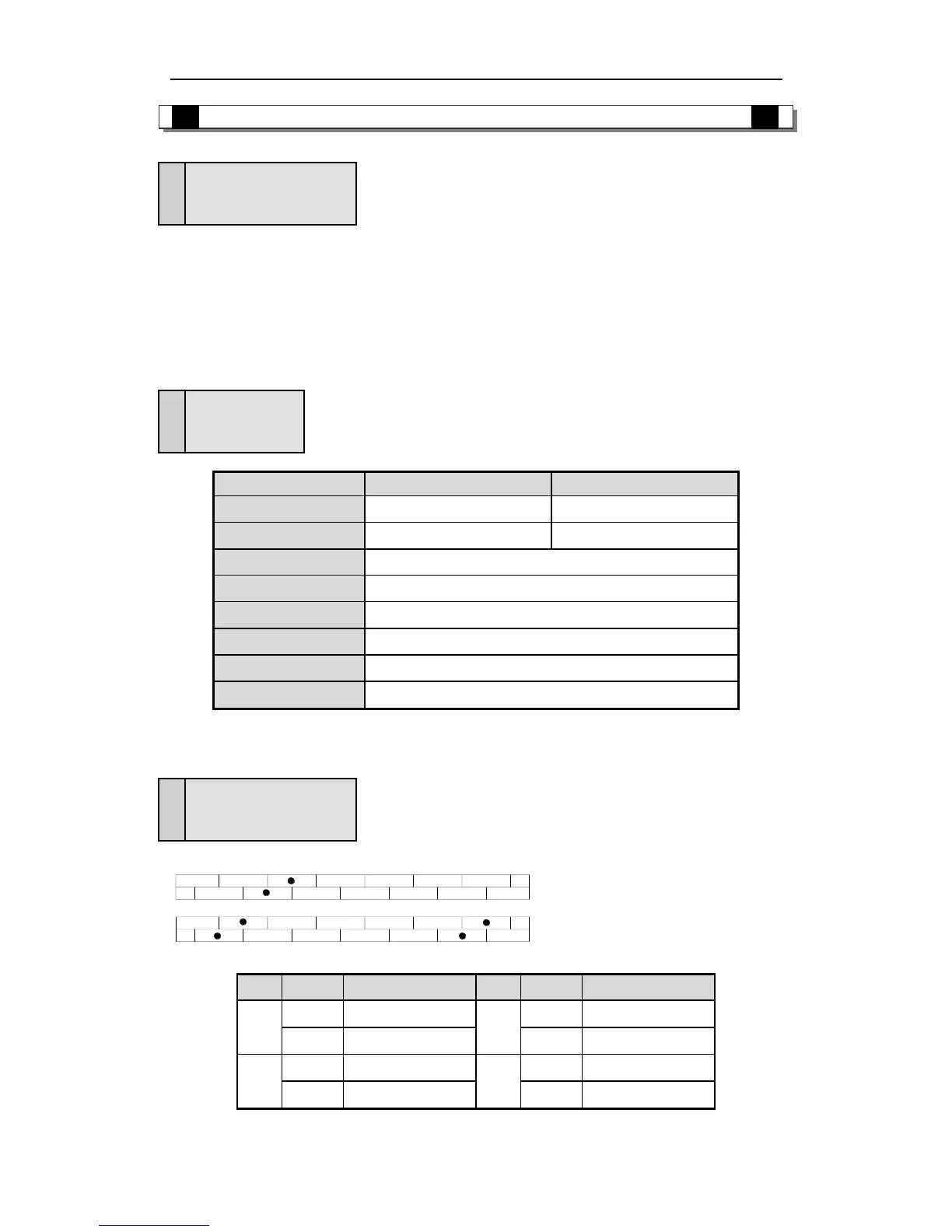

8-3-1．XC-E8AD
0V
24V
AI0
C0 C1 C2 C3
AI3AI2AI1
. .
VI0 VI1 VI2 VI3
C0 C1 C2 C3
CH
NAME
SIGNAL
CH
NAME
SIGNAL
CH0
AI0
VI0+ voltage input
CH1
AI1
VI1+ voltage input
C0
VI0- voltage input
C1
VI1- voltage input
CH2
AI2
VI2+ voltage input
CH3
AI3
VI3+ voltage input
C2
VI2- voltage input
C3
VI3- voltage input
Items
Voltage input (0CH-3CH)
Current input (4CH-7CH)
Analog input bound
DC0～5V, 0～10V
DC0～20mA, 4～20mA
Max input bound
±18V
0～40mA
Digital output bound
14 bits binary data
PID control value
0～K4095
Distinguish Ratio
1/16383（14Bit）
Integrate Precision
0.8%
Convert speed
20ms/channel
Power used by analog
DC24V±10%, 100mA
 14 bits high precision analog input
 8 channels analog input：The first four channels voltage input (0~5V、
0~10V two kinds)；The left 4 channels current input (0~20mA、4~20 mA
two kinds)
 As special function module of XC, 7 models could be connected at most.
 Support PID auto tune function
Brief Introduction
1
Specification
2
Terminal Arrangement
3
