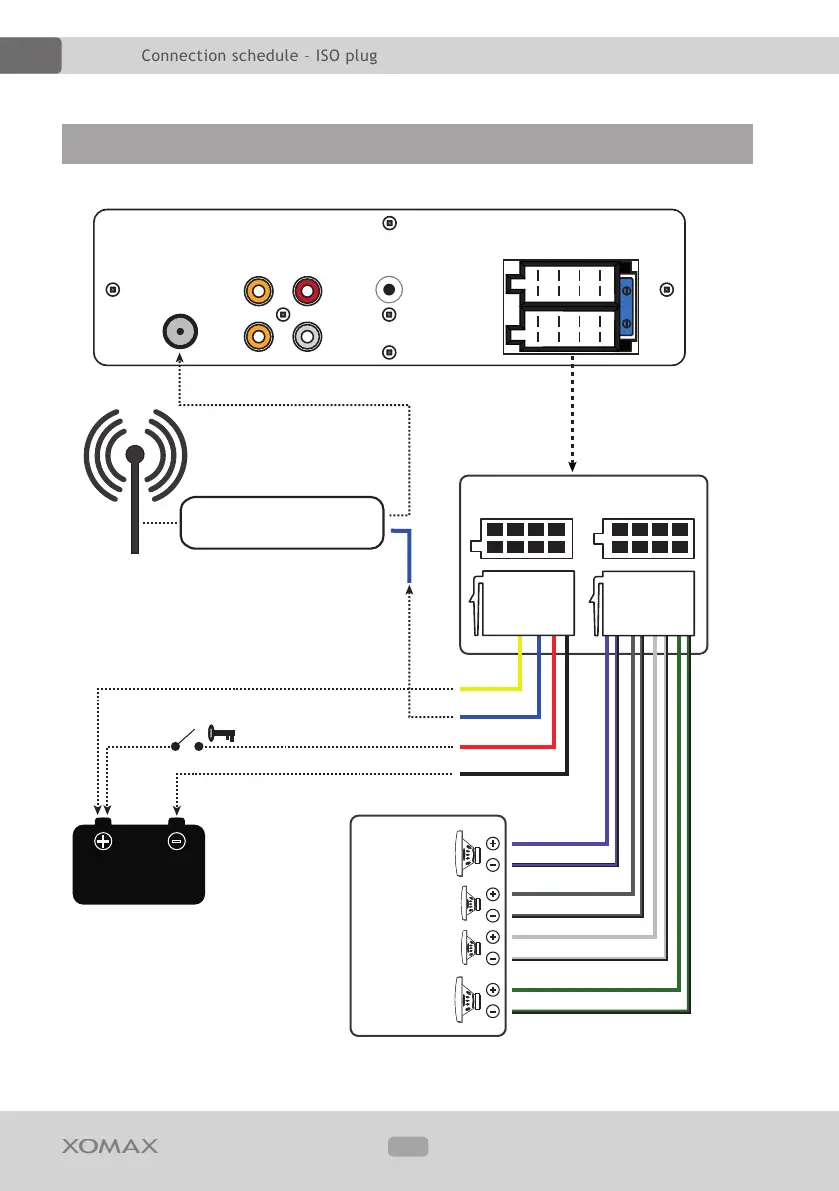

Connection schedule – ISO plug
Connection schedule – ISO plug
1
2
3
4
5
6
7
8
A8
A7
A5
A4
phantom power
12V
-
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
+
-
+
-
+
-
+
-
B
B
A
A
ISO-plug/socket
Loudspeaker
Radio-aerial
aktive
permanent current +12V
ignition
rear left
front left
rear right
front right
